High Accuracy Lithium Ion Battery Assembly Line Automatic PVC Patch Machine

Negotiation, email communication
High Accuracy Lithium Ion Battery Assembly Line Automatic PVC Patch Machine
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1000KG
Voltage: AC220±10%
Warranty: 1 Year
Servo Motor: Panasonic
Screw: HIWIN
High Light:

lithium battery production line


lithium ion battery making machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-8
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

High Accuracy Lithium Ion Battery Assembly Line Automatic PVC Patch Machine

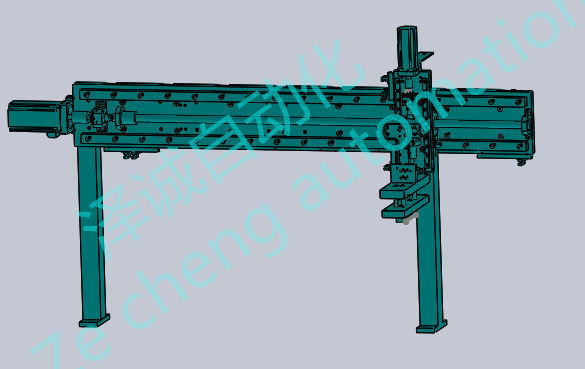

1. This system will be coated by feeding manipulator cells crawl to the system after the delivery take, the battery is on the move drawstring and PVC paste system before positioning, conducted by conveying line positioning, positioning paste PVC insulated cover square piece, after the completion of paste after the completion of the battery to continue forward flow, flow to the drawstring ends by artificial pick;


2. The system includes: 1 set of battery feeding manipulator, 1 set of PVC square paste system, 1 set of battery transmission and positioning system;


3. Technical requirements:


3.1 the material requirement of the gripper of the manipulator is PE;


3.2 the repetitive motion accuracy of the X-axis direction of the manipulator is ±0.1mm


3.3 the repetitive motion accuracy of the manipulator in the Y-axis direction is ±0.1mm


3.4 the repetitive motion accuracy of the manipulator in Z axis direction is ±0.1mm


3.5 probability of battery gripper and battery drop =0%


4. Configuration list


The serial number The name of the The number of brand
Battery handling manipulator Servo motor 2 panasonic
screw 2 HIWIN
Linear guide 4 HIWIN
The clamping cylinder 1 SMC
fingers 1 Non-standard processing


5. PVC square film pasting system: it mainly includes one material box mechanism, PVC square film feeding component, PVC square film positioning component, PVC square film pasting component, and isolation paper collection component


5.1 feeding box mechanism: it mainly includes one feeding box, one lead screw, one stepper motor and one synchronous belt


5.2 PVC square sheet feeding components: mainly include 1 servo motor, 1 lead screw, 2 slide rails,1 set of sucker, 1 set of supporting column, 1 upper and lower cylinder;




6. Technical requirements:


6.1 feeding success rate ≥99%;


6.2 the sucker is not allowed to cause damage to the PVC square;


6.3 paste qualified rate ≥99%;


6.4 PVC square paste must not fall off, no warping, no deflection, no bubbles;


7. Configuration list


The serial number The name of the The number of brand
PVC square paste component Servo motor 2 panasonic
screw 1 HIWIN
Linear guide 4 HIWIN
Vacuum suction cups 2 Non-standard processing
Synchronous belt 1 MISUMI
PVC square positioning component Steam cylinder to 2 SMC
Press the cylinder 1 SMC
Positioning layering 1 Non-standard processing
Vacuum suction plate 3 Non-standard processing
PVC feeding assembly Slide rail mounting plate 1 Non-standard processing
columns 1 Non-standard processing
bearing 1 Non-standard processing
chuck 2 Non-standard processing
Connection plate 1 Non-standard processing
Slippery course   silver
cylinder   SMC
screw   silver
bearing   MISUMI
Servo motor   panasonic
coupling   standard
Bin institutions Kraft paper holder   Non-standard processing
Top of the component   Non-standard processing
bearing   MISUMI
screw   SMC
Synchronous belt   MISUMI
Synchronous wheel   standard
Stepper motor   standard
Isolation paper collection box The collection box   Non-standard processing
