Automatic Lithium Ion Battery Assembly Line Blue Film Coating equipment

1
MOQ
Negotiation, email communication
Price
Automatic Lithium Ion Battery Assembly Line Blue Film Coating equipment
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1800KG
Voltage: AC220±10%
Cylinder: SMC
Linear Guide: HIWIN
Warranty: 1 Year
High Light:

lithium battery production line

,

lithium ion battery making machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-7
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

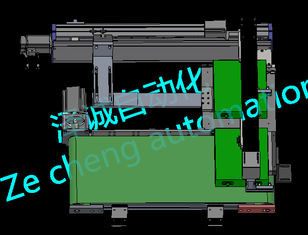

Automatic Lithium Ion Battery Assembly Line Blue Film Coating equipment



1. Main function of this system: paste the outer envelope of the qualified battery



2. This system includes: 1 set of battery feeding system, 1 set of tape feeding system, 1 set of adhesive coating system, 1 set of blanking turnover mechanism.



3. Battery charging system:



This system includes: 1 set of electric cell turnover push mechanism, 1 belt conveyor, 1 set of battery drawing mechanism, 1 set of battery pushing mechanism



3.1 turning and pushing mechanism of electric cell: it mainly includes 1 turning cylinder, 1 turning fixture, 1 pressing cylinder and 1 pushing cylinder.







3.2 conveyor belt: it mainly includes 1 stepper motor, 1 belt and 1 sensor in place;



3.3 battery drawing mechanism: it mainly includes 1 stepper motor, 1 servo module and 1 drawing plate.



3.4 battery pusher mechanism: it mainly includes 1 stepping motor, 1 servo module, 1 pusher plate and 1 positioning plate.



4. Technical requirements



4.1 the material of the flip fixture shall be POM, and it is not allowed to scratch the battery surface;



4.2 the quality of the positioning plate shall be POM, and it is not allowed to scratch or wear the battery surface;



4.3 the quality of push-plate and pulled-plate shall be POM, and it is not allowed to scratch or wear the battery surface;



5. Tape feeding system:



The system includes 1 set of unwinding mechanism, 2 sets of tensioning mechanism, 4 sets of over-rolling mechanism, 1 set of underclamping and pulling mechanism, and 1 set of overclamping and cutting mechanism.











5.1 tensioning mechanism: it mainly includes 2 cylinders, 2 linear slide rails and 1 tension roller



5.2 upper clamping cutting mechanism: 2 upper clamping jaw cylinders, 1 set of clamping block, 1 cutter cylinder, 1 cutter;







5.3 lower clamping and pulling mechanism: it mainly includes 2 lower clamping jaw cylinders, 1 set of clamping blocks, 1 servo motor, 1 lead screw, 2 slide rails and 1 synchronous belt



5.4 technical requirements:



5.1 the over-roll surface shall be treated with sawtooth, and the rubber belt shall not adhere to the roll



5.2 adhesive is not allowed on the surface of the clamping block



5.3 SKD11 is required for cutter material, and the service life is 300,000 > times



5.4 pull-down adhesive precision ±0.1mm



5.5 the battery pressing and positioning block is made of polyurethane, so it is not allowed to scratch the battery;









6. Configuration list



The serial number The name of the The number of brand
1 Tape limit 2 Non-standard processing
2 cylinder 2 SMC
3 Linear guide 2 HIWIN
4 A roll 2 Non-standard processing
5 cylinder 2 SMC
6 Servo motor 1 panasonic
7 screw 1 HIWIN
8 Linear guide 2 HIWIN
9 Origin sensor 1 panasonic
10 Limit sensor 2 panasonic
11 coupling 1 COUP - LINK
12 Synchronous belt 1 Non-standard processing
13 The clamping cylinder 2 SMC
14 Cut off the cylinder 1 SMC
15 Laminated block 2 Non-standard processing
16 cutter 1 Non-standard processing



Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
