Simple Laser Sealing Machine Lithium Battery Thickness Measuring Weighing Machine
Main functions: 1. This system will clean code scanning drying after the battery in the end of the conveyor belt, thickness, thickness is completed by the system battery carrying manipulator grasping to weighing weighing, qualified cell by cell carrying manipulator placed in plastic bags to flip agencies, sweep yards NG, thickness NG, weighing NG battery by carrying manipulator placement NG to bring;

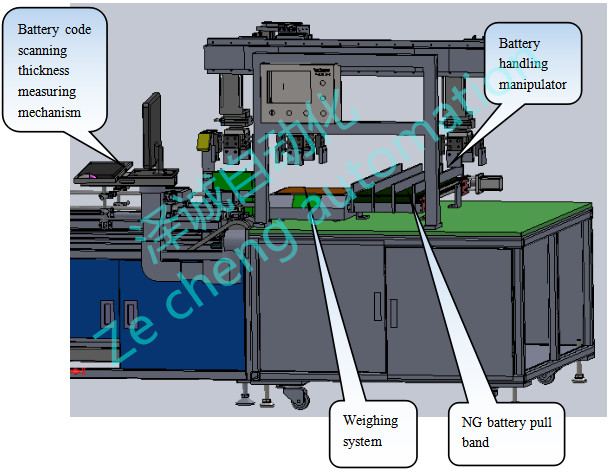

2. The system includes: 1 set of battery scanning code thickness measuring mechanism, 1 set of battery handling manipulator, 1 set of weighing system, 1 set of battery NG pull band.

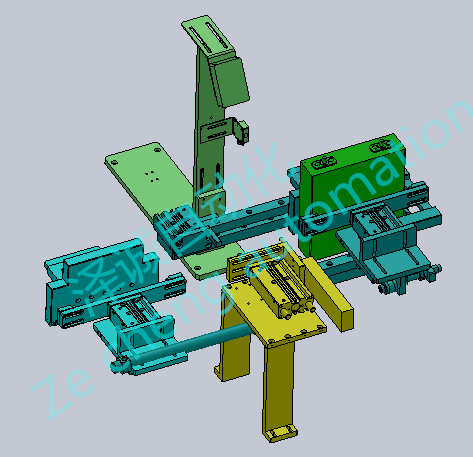

2.1 battery scanning and thickness measuring mechanism: including 2 sets of battery positioning cylinder, 2 sets of positioning splints, 1 set of scanning gun, 1 set of thickness measuring cylinder and 1 set of thickness measuring instrument.

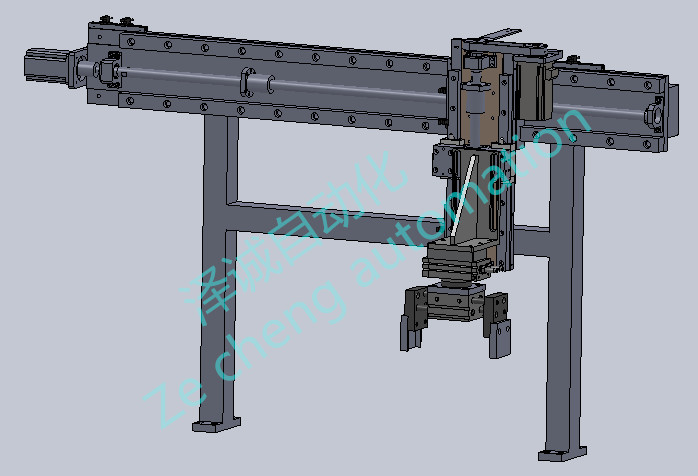

2.2 battery feeding manipulator:
This system includes: X-axis servo motor 1, Y-axis servo motor 1, lead screw 2, synchronous belt 1, rotating cylinder 1, clamping cylinder 1, mechanical clamping 1, linear guide 4, 1 set of support.
3. Weighing system:
3.1NG battery pull belt: including 1 stepper motor, 1 conveyor belt and 4 guide plates;
4. Technical requirements:
4.1 thickness measurement accuracy 0.1mm, measuring position battery center position;
4.2 scanning time of scanning gun ≤300ms;
4.3 electronic scale range 0-15kg, accuracy 0.1g, reaction speed ≤300ms;
4.4 NG pull-out band shall be respectively equipped with scanning NG, weighing NG and thickness measuring NG batteries. Each NG battery shall be no less than 10 when the number of batteries is full;
4.5 the repetitive motion precision of the manipulator in all directions is ±0.1mm, no battery damage or drop is allowed
5. Configuration list
The serial number |
The name of the |
The number of |
brand |
Battery handling manipulator |
Servo motor |
panasonic |
|
screw |
1 |
HIWIN |
|
Linear guide |
2 |
HIWIN |
|
screw |
1 |
HIWIN |
|
Linear guide |
2 |
HIWIN |
|
The rotating cylinder |
1 |
SMC |
|
The clamping cylinder |
1 |
SMC |
|
fingers |
1 |
Non-standard processing |
|
Thickness sweep the yard |
cylinder |
3 |
SMC |
Positioning plate |
2 |
Non-standard processing |
|
Thickness gauge |
1 |
keyence |
|
Sweep code gun |
1 |
keyence |
|
NG drawstring |
Stepper motor |
1 |
R control |
Guide plate |
4 |
Non-standard processing |
|
The conveyor belt |
1 |
Non-standard processing |
|
sensors |
9 |
panasonic |
|
Vertical plate |
4 |
Non-standard processing |
|
Weighing system |
Electronic says |
1 |
PuRuiXun |
Electronic scale positioning board |
1 |
Non-standard processing |
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
