1. Design requirements for battery electrode Mao Peiquan automatic production line:

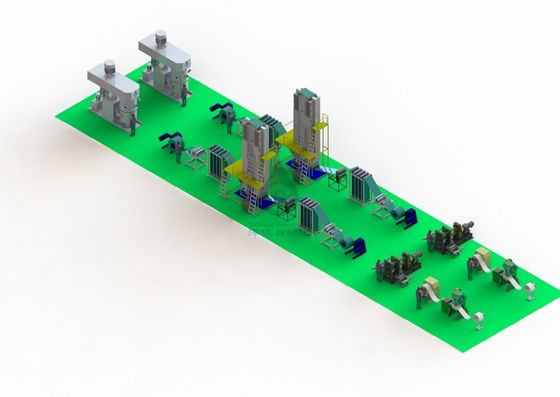

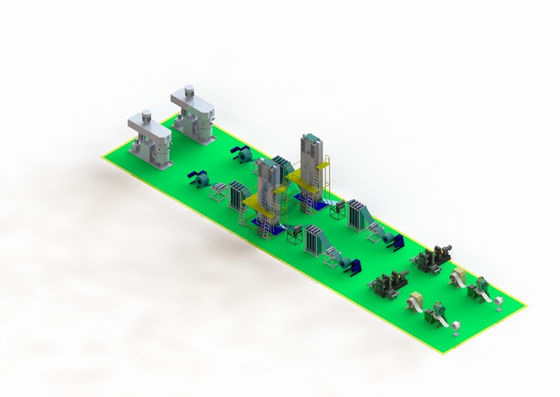

1. This equipment is based on the technological design requirements of the production line of nickel-hydrogen and iron-nickel battery plate hair germ. Based on industry 4.0, the intelligent full-automatic production line of battery plate hair germ is designed and manufactured. The production line includes vacuum mixer, turnover barrel, automatic slurry conveyor, pulping machine, roller press, automatic online thickness measuring machine and punching machine. Automatic detecting machine for polar piece and automatic winding machine for waste.
1.2. Technological process:
1.3. Production capacity and process parameters of plate blank production line: plate production speed is less than 0-3 m/min, plate thickness is 0.1-0.9 mm adjustable; applicable steel strip: 0.1 *400 *L; thickness after roll pressing is 0.4-0.8 mm. Accuracy (+0.01 mm); slurry viscosity is 20-65 Pa.s. Special attention should be paid to: slurry contains short fibers, and fiber length is 1-3 mm. The working heating temperature of the equipment is adjustable from room temperature to 300 and the apparent temperature is not more than 1% of the actual error; the width of the polar plates to be sheared is 40-150 mm; the width of the slurry is 50-380 mm, and the slurry hanging method can adopt the latest technology, but the slurry recovery and utilization should be fully considered.
1.4. Performance requirements of the production line of pole plate hair germ: 1.3. under normal production conditions; strip unwinding mechanism, baking mechanism, scraping mechanism, deviation correction mechanism, roll press, punching and cutting mechanism, and inspection mechanism require stable, reliable and easy operation; all moving parts should have reasonable, reliable and convenient lubrication mechanism.
1.5. Polar plate hair germ production line equipment composition
| NO. | Process name | Device name | Equipment capability | Quantity (unit) | Remarks |
| 1 | Weight of powder | Electronic scale | 1 | Scavenger | |
| 2 | Stir | Vacuum mixer | 300L | 1 | Turnover bucket 2 |
| 3 | Pulping | Automatic plate pulping machine | Less than 2m/min adjustable | 1 | Height 5.5m |
| 4 | Roller pressure | Roller press | Less than 2m/min adjustable | 1 | |
| 5 | cache | Caching machine | Less than 2m/min adjustable | 2 | |
| 6 | Thickness measurement | Laser thickness gauge | Less than 2m/min adjustable | 1 | |
| 7 | Punching | Automatic punching machine | 20 pieces / minutes | 1 | |
| 7 | Testing | Pole piece automatic testing machine | 20 pieces / minutes | 1 | |
| 9 | Waste collection | Scrap winding machine | Less than 2m/min adjustable | 1 |
