1, equipment introduction
This equipment is used for the longitudinal cutting of positive and negative electrode slices after nickel, nickel, cadmium, lithium ion and other batteries coating, with neat section edges, no burrs, high dimensional precision and no dedusting. It is an important equipment in the processing of battery electrode slices.
2, Equipment featuresThis machine is composed of upper and lower hob, gear, pulley, reducer, motor and frame.The main parts are the upper and lower hob, which is composed of the interval with the rubber knife.Features:
A)simple structure, convenient installation and debugging.The machine is provided with the cutting pole size by the buyer. The hob can be customized according to the size.
B) simple operation, users only need to pay attention to safety can use;
C) high cutting precision and less dedusting.The cutting size is determined by the knife making without adjustment.
D) simple and clear maintenance, few wearing parts and reliable work.
3, technical parameters
motor power: 0.75kw 1400 RPM;
B) speed ratio of reducer: 20:1;
C) hob linear speed: 20m/ min;
D) hob diameter: 84 mm Ø;
E) rolling width: user's own;
F) maximum roll cutting width: 500mm;
G) weight: about 200KG;
H) overall size: length: 850× width: 620× height: 1000 (mm)

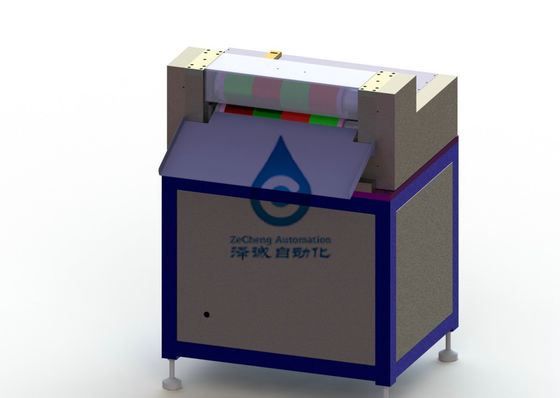

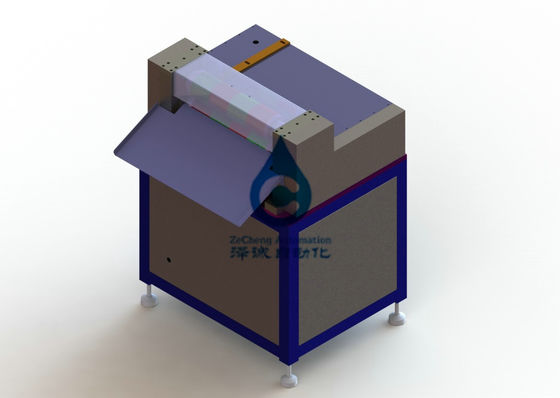

4. Equipment schematic drawing (for reference only)
Commitment
1. New equipment promise
Our company guarantees that all the components of equipment will be in completely new condition, none used components.
2. Confidential commitment.
Our company promises that without the written permission, all the technical information and business information of client will not be leak to any third parties.
3. After-sales service commitment
Our company provide one year warranty begin from date of site acceptance test, the maintenance cost is exempted during the warranty period, the wearing parts of the equipment and parts damaged by improper use or force of majeure is excluded from warranty. If the equipment occurred disfunction and need repair by seller after the expired of warranty, the cost negotiated by both sides.
