1. Battery strapping machine
The device is designed for the adhesive tape process after lamination of the electric cell, which is suitable for four or several electric cells to be coated with adhesive tape at the same time after flattening of the electric cell.
2. The design requirements
2.1. The battery is bundled twice.
2.2. There are no bubbles and wrinkles after the tape wrapping.
2.3. Adhesive tape position error: ±1mm;
2.4 tape winding place: the overall side overlap of the coil core is ≥5mm.
2.5. Suitable for cell size: cell: 170mm long, 100mm wide, 10mm thick; Tape: 50m long, 30mm wide, inner diameter 76mm, outer diameter 150mm, thickness 0.05mm.
2.5.1. Main components of equipment
| The serial number | System composition |
Thesystem configuration |
Brand or treatment |
The number of |
| 1 | Rack components | 1 set of | ||
| Welded skeleton construction | The lacquer that bake | 1 | ||
| The base plate | Phosphating blackening of steel pieces | 1 | ||
| 2 | Stick a rubber component | 1 set of | ||
| The motor | R control | 8 | ||
| cylinder | SMC | 2 | ||
| Linear guide | silver | 1 | ||
| linkage | Phosphating blackening of steel pieces | 1 | ||
| Flanged linear bearing | 2 | |||
| 3 | Control system | 1 set of | ||
| PLC | omron | 1 | ||
| Touch screen | Kunlun state | 1 |
2.5.2. Equipment technical parameters
|
Specifications project |
ZBCA05A-00 | |
| Technical parameters | Efficiency (PPM) | 5 |
| Compressed air system | Air source provided by party a | |
| Total power (kw) | 3 | |
| Normal operating power (kw) | 2 | |

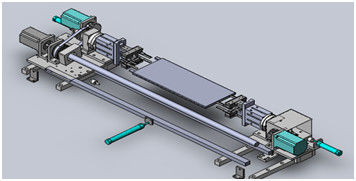

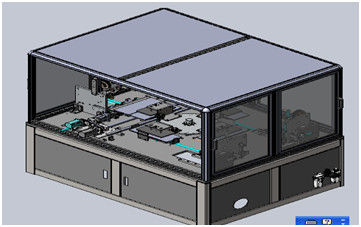

2.5.3. Device profile view2.5.4. Description of main equipment parts
2.5.4.1 process description: work as shown in the figure below, after artificial will flatten batteries into 4 station stick tape machines on the empty position 1, each into a batteries, cylinder push batteries located on both sides, after when stacked 6 batteries, wheel rotate 90 °, the batteries in the middle of the stick tape location, living on both sides of the clamping fingers batteries, shall be submitted to the office of tape to tape on the batteries, set by the rotary Angle of rotating machine, tape seizing on batteries, after cutting knife to cut off the tape, motor rotation Angle, pressure roller on the batteries will end adhesive joint on the batteries. Rotate the turntable by 90° to the adhesive tape wrapping station at the bottom, and then move forward the left and right packaging mechanism. Stick the adhesive tape at the bottom of the cell, and move the upper and lower mechanisms to stick the upper and lower tapes. The turntable rotates 90°.
2.5.4.2. Battery positioning clamping mechanism: when the turntable rotates 90°, the CAM follower of the battery clamping mechanism enters the card of the pull plate
In the groove, every time a battery is put in, the cylinder pulls the side plate to make a certain position, when the battery is put in, the cylinder pushes the side plate to charge
Core alignment.
2.5.4.3. Adhesive tape mechanism in the middle: clamp the electric cell by clamping the finger cylinder, tape is attached to the electric cell, and the motor is rotated.
Wrap the rubber belt around the electric cell, the rubber belt cutter cuts off the rubber belt, the motor turns the set Angle again, and the upper press roll sticks the tail glue on the electric cell.2.5.4.4. Control system: the machine is equipped with independent electrical board, leakage switch, dc stability power supply and other power circuit components, control PLC, relay, motor control device, etc. And external connection, using connectors and terminal table. PLC USES OMRON. The ceiling of the power cable is partially perforated. Cables and air ducts between other equipment are wired and piped below.
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
