Lithium Battery Production Line Fine Positioning Return Plate Lift Machine
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.Fine positioning return plate lift:
1. The system mainly includes: 1 set of return plate elevator, 1 set of pallet positioning device, 1 pallet code sweeper;
2. Technical requirements
2.1 the material requirement of the motorized drum is SUS304 stainless steel;
2.2 frame body and line body track are made of SUS304 stainless steel;
2.3 the main frame is stainless steel SUS304, with special leveling feet;
2.4 top diameter of jacking positioning guide column: 3mm±0.02mm;
2.5 diameter of the bottom end of the jacking guide column: 14mm±0.02mm;
2.6 after the positioning is completed, the positioning accuracy is: ≤±0.02mm;
3. Configuration list
| The serial number | System composition | Component name | Specification description | note |
| 1 | Return lift | rack | SUS304 stainless steel main frame; | homemade |
| Lifting cylinder | The bottom has a special leveling foot; | SMC | ||
| Elevator guide rail | To be designed | Taiwan TBI, Shanghai bank | ||
| Electric roller | To be designed | Dema, domestic quality | ||
| 2 | Tray positioning device (1) |
cylinder | Product roller specifications: 60mm, spacing 125mm; | SMC |
| Positioning pin shaft | Roller material: SUS304 stainless steel; | homemade | ||
| 3 | Photoelectric switch | Conveying speed of conveying line: 12m/min; | OMRONG | |
| 4 | Sweep the decoder | Rated load: 150kg/m; | Cognex, KEYENCE, | |
| 5 | Pallet sensor recognizer | Jacking cylinder: ~ 40; | Mitsubishi, Siemens | |
| 6 | Tray sweeper | Pin shaft positioning: ~ 20; | ||
| 7 | PLC controller | Material: medium carbon steel, chrome plated; |

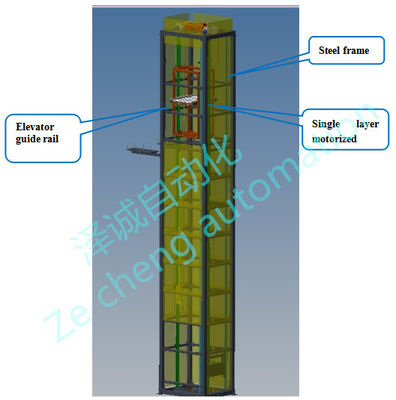

4. Hoist system:
Main functions of this system: lift the full battery tray on the second floor to the pallet roller conveying line on the third floor, and transfer the empty tray returned from the third floor to the pallet roller conveying line on the second floor;
This system mainly includes: frame system 1 set, power plant 1 set, electric drum 1 set, block 2;
5. Technical requirements:
5.1 wire conveying speed: v~12m/min;
5.2 lifting speed: ~10m/min;
5.3 rated load: ~120kg;
5.4 load-bearing capacity of basic unit area: ≤500Kg/m2;
5.5 the main material of the frame is A3 carbon steel, and the surface is sprayed with plastic
