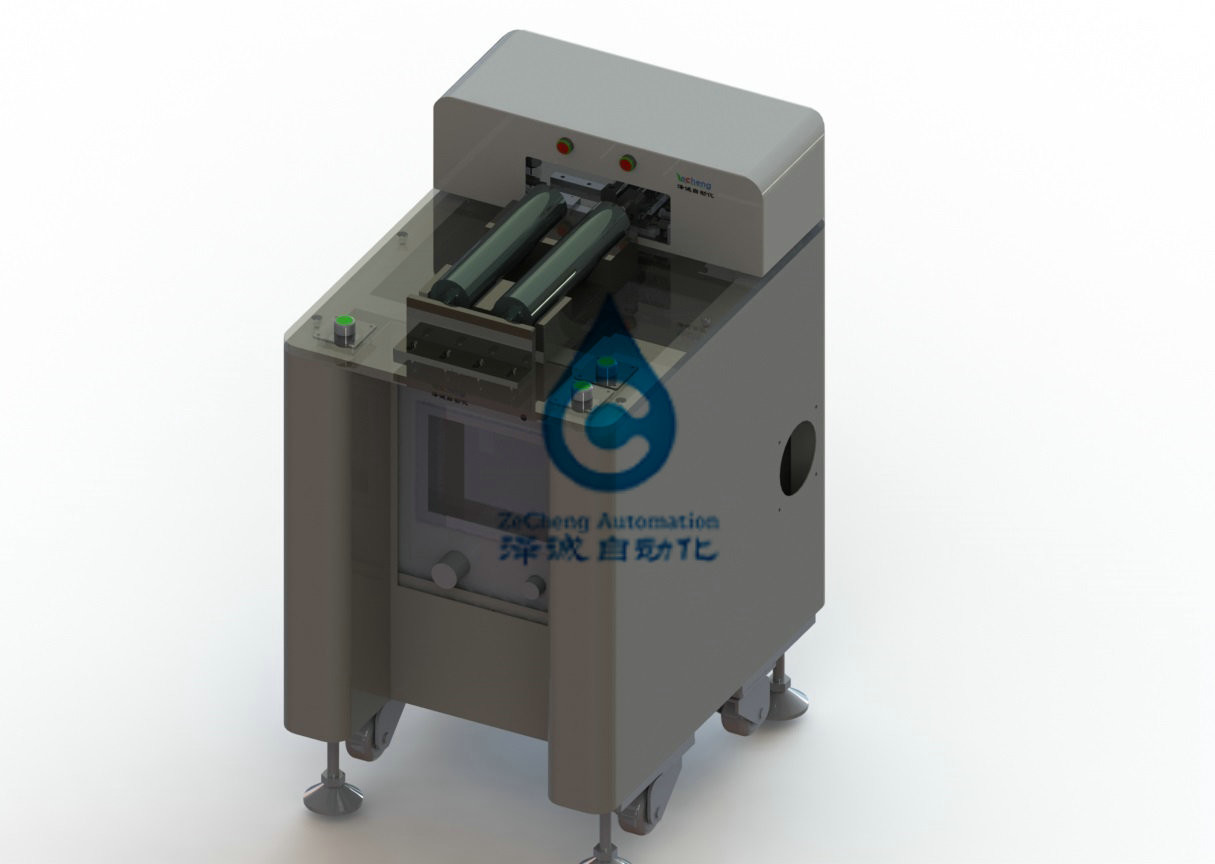

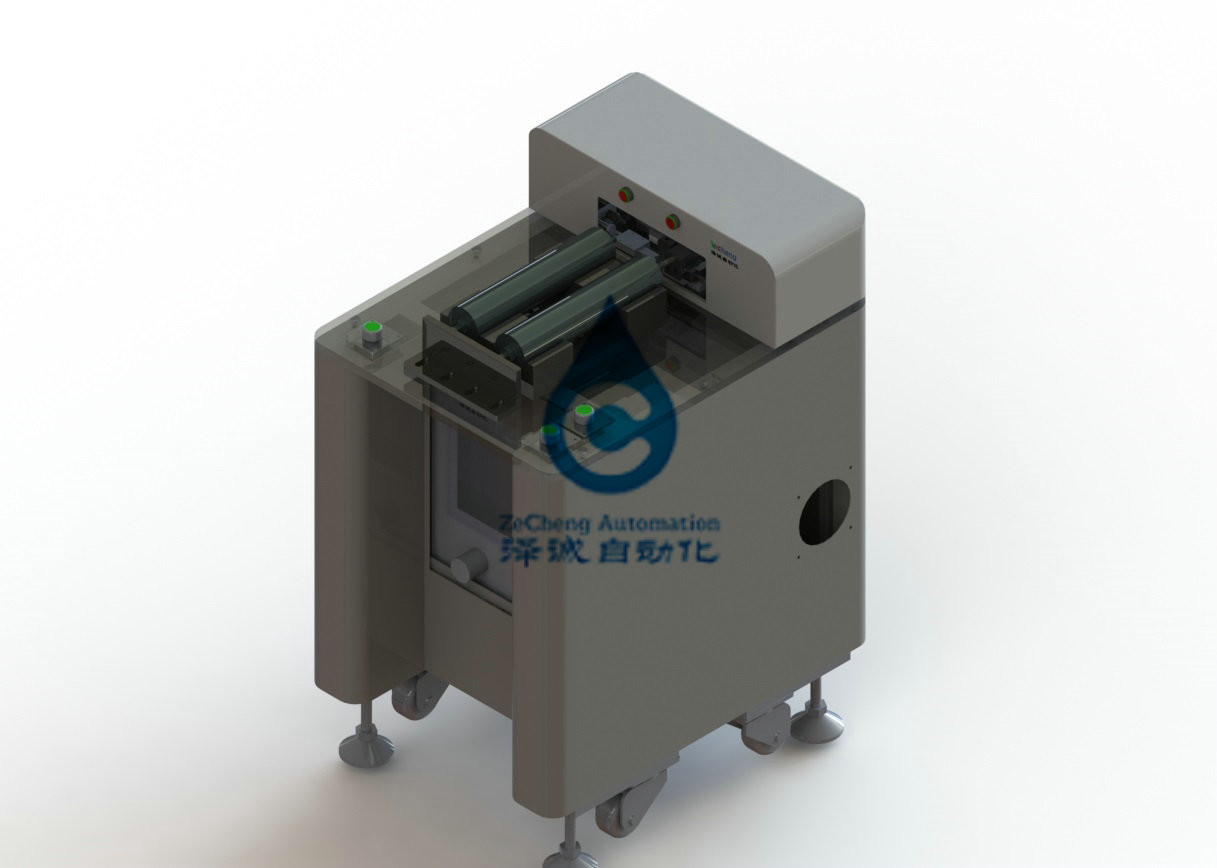

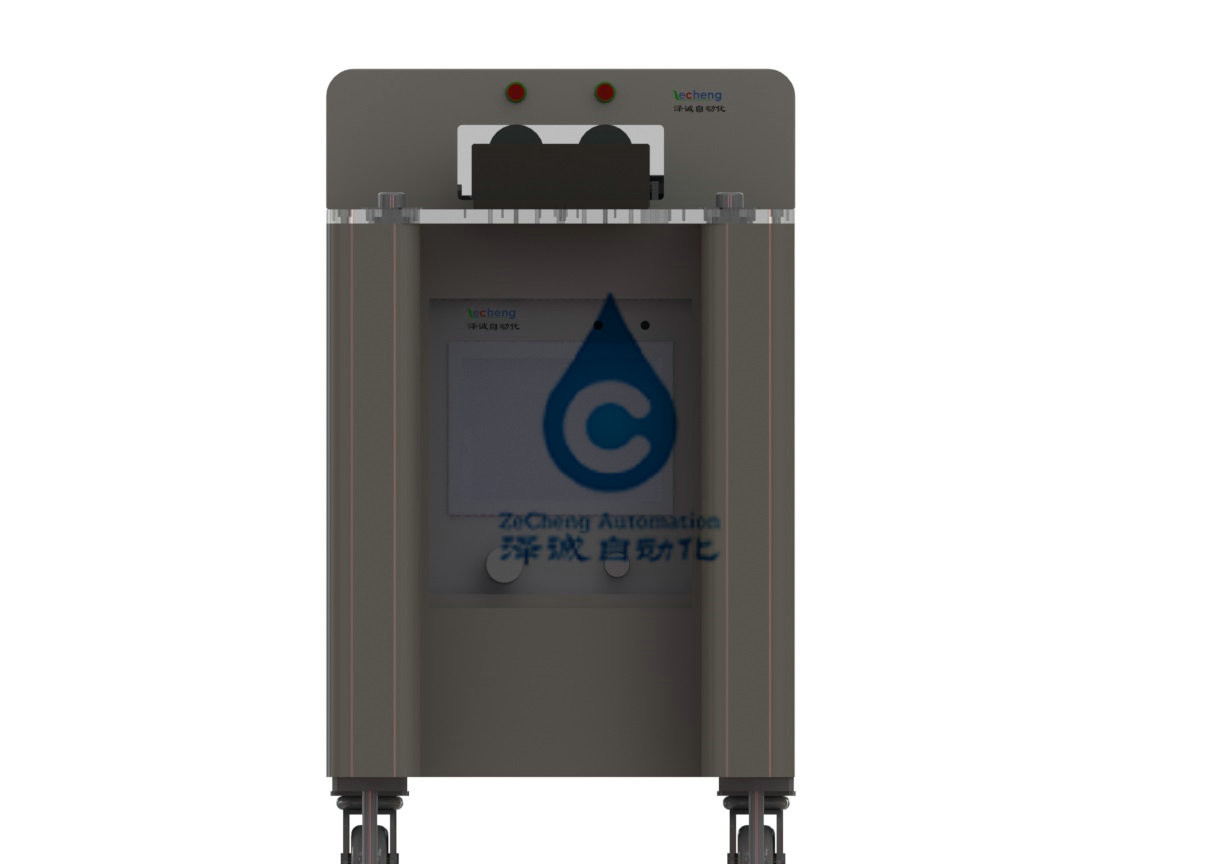

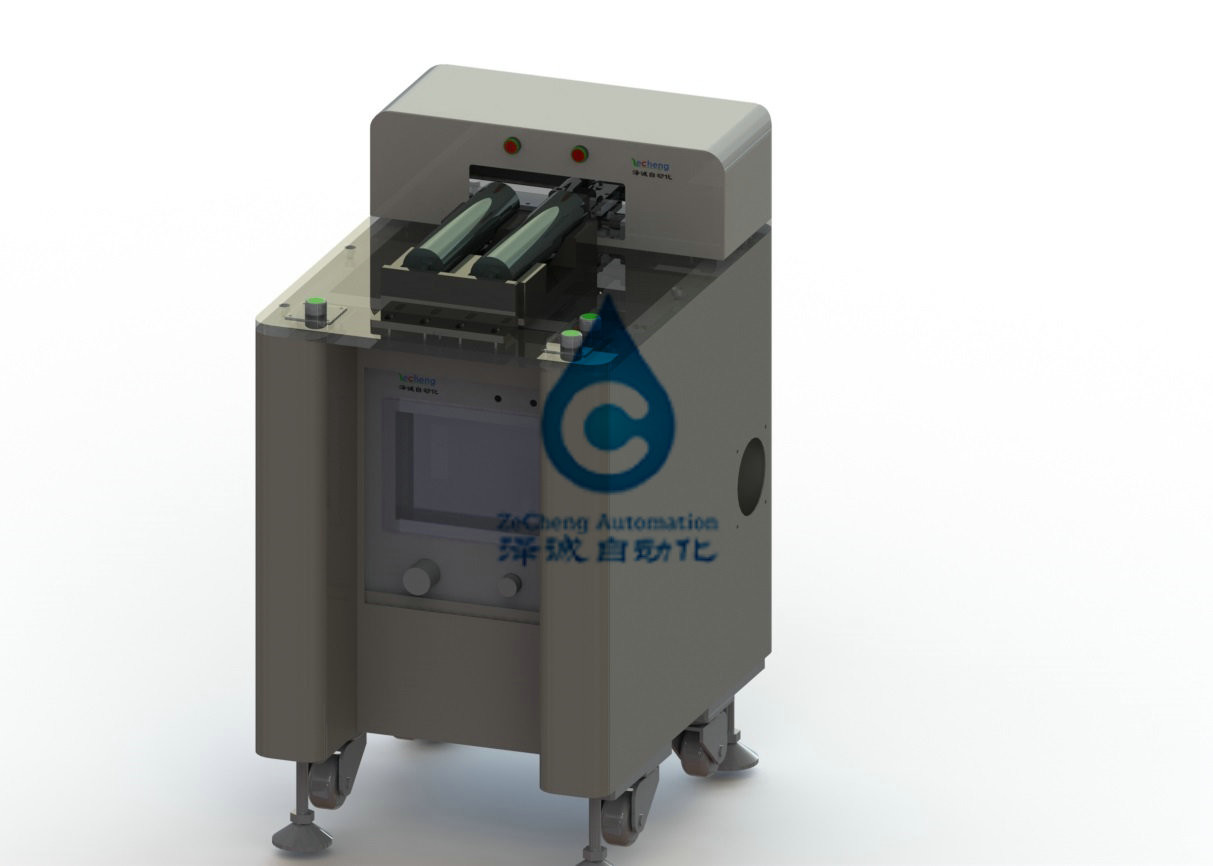

Large Cylindrical Cell Liquid Injection Machine Differential Pressure Leak Detector
1, Equipment name and technical parameters
1.1,Leak detection machine, this equipment is mainly used for sealing detection after laser welding shell of various cylindrical batteries. It adopts the principle of positive pressure or negative pressure differential pressure detection and detects whether there is leakage by leakage amount.The external color of the equipment is warm gray 1C(international standard).
1.2 test the product size
|
|
Thickness(mm) |
Width(mm) |
Hight(mm) |
|
Production |
20 |
100 |
142 |
Note: the device supports switching of battery models with thickness range of 20-25mm, width of 90-100mm and height of 130-170mm
1.3 technical parameters
|
ITEM |
|
|
|
1 |
efficiency |
≥17PPM(It depends on the vacuum time, 2 lines efficiency) |
|
2 |
Power |
0.9KW |
|
3 |
Outline(L*W*H) |
1700*500*1800 |
|
4 |
Leak test mode |
Negative pressure differential |
|
5 |
Leakage test pressure |
-90-0KPa |
|
6 |
Measure leakage test accuracy |
10Pa |
|
7 |
Short circuit test voltage range |
DC200-600V±2%； |
|
8 |
Short circuit test resistance |
100K-10MΩ |
|
9 |
Short circuit test accuracy |
±5% |
2, Performance characteristics
2.1 the machine is suitable for negative pressure leakage detection and short circuit test of square aluminum shell lithium ion power battery.
2.2 working principle of leak detection: the sealed chamber is used for negative pressure test under the condition of pressure difference between inside and outside.If the aluminum shell has poor welding and slight leakage, the detection accuracy can reach 1Pa through the precision pressure sensor.
2.3 short circuit test: short circuit tester test voltage for DC200-600 - v, adjustable resistance for the 100-10 m Ω, and with a test after completion of discharge of anode and the shell is function.
2.4 locate and clamp 4 batteries at the same time, and conduct leakage detection and short-circuit test at the same time.
2.5 the manipulator will automatically remove unqualified test (including leakage detection and short-circuit test of unqualified single battery) into the waste box.
5, product use environment
5.1 compressed air: 0.4 ~ 0.6mpa (4-6kgf/cm2), the flow rate of compressed air is 10L/min, and the utilization rate is 50%.
5.2 ambient temperature: 20 ~ 35℃.
5.3 relative humidity: 5 ~ 55% HR.
5.4 power supply: AC220V, single-phase;Voltage fluctuation is less than ±10%;Power supply: 1KVA.
5.5 test pressure: 20-200kpa;
