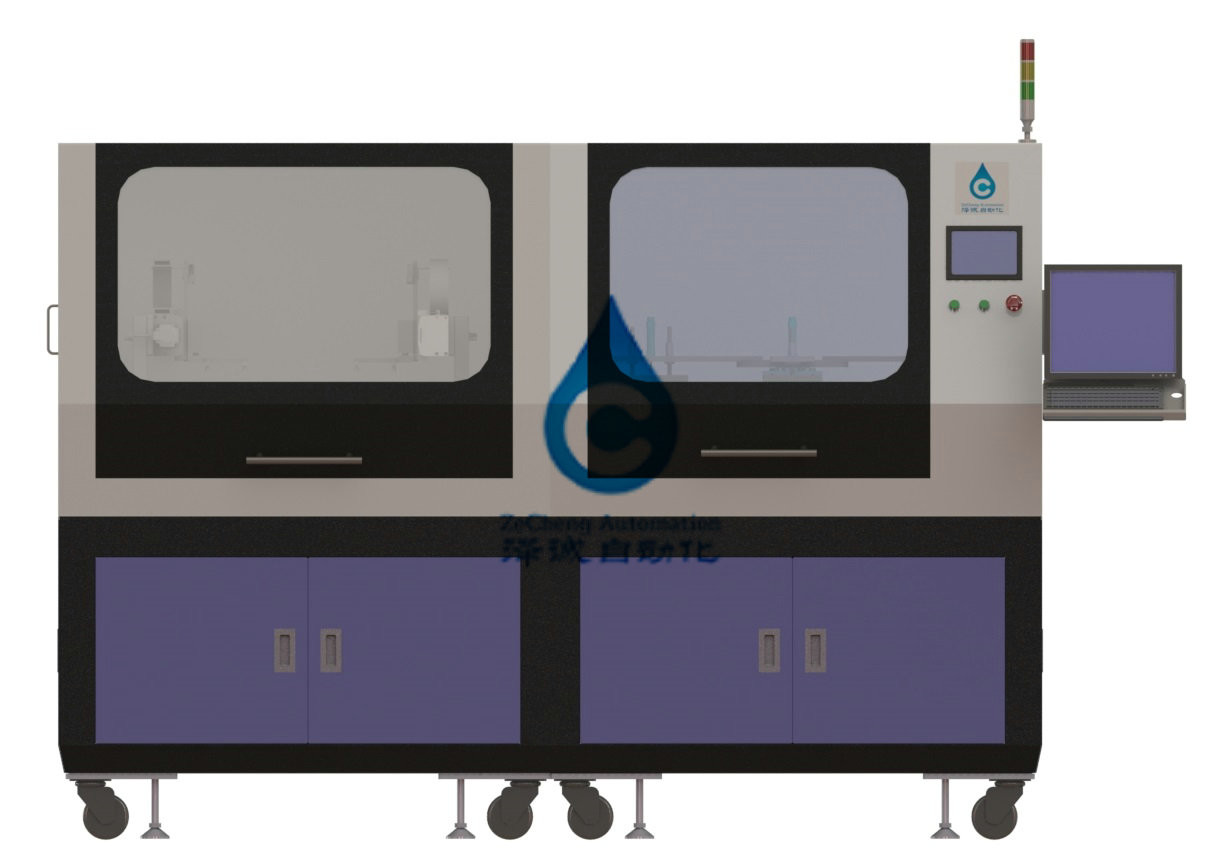

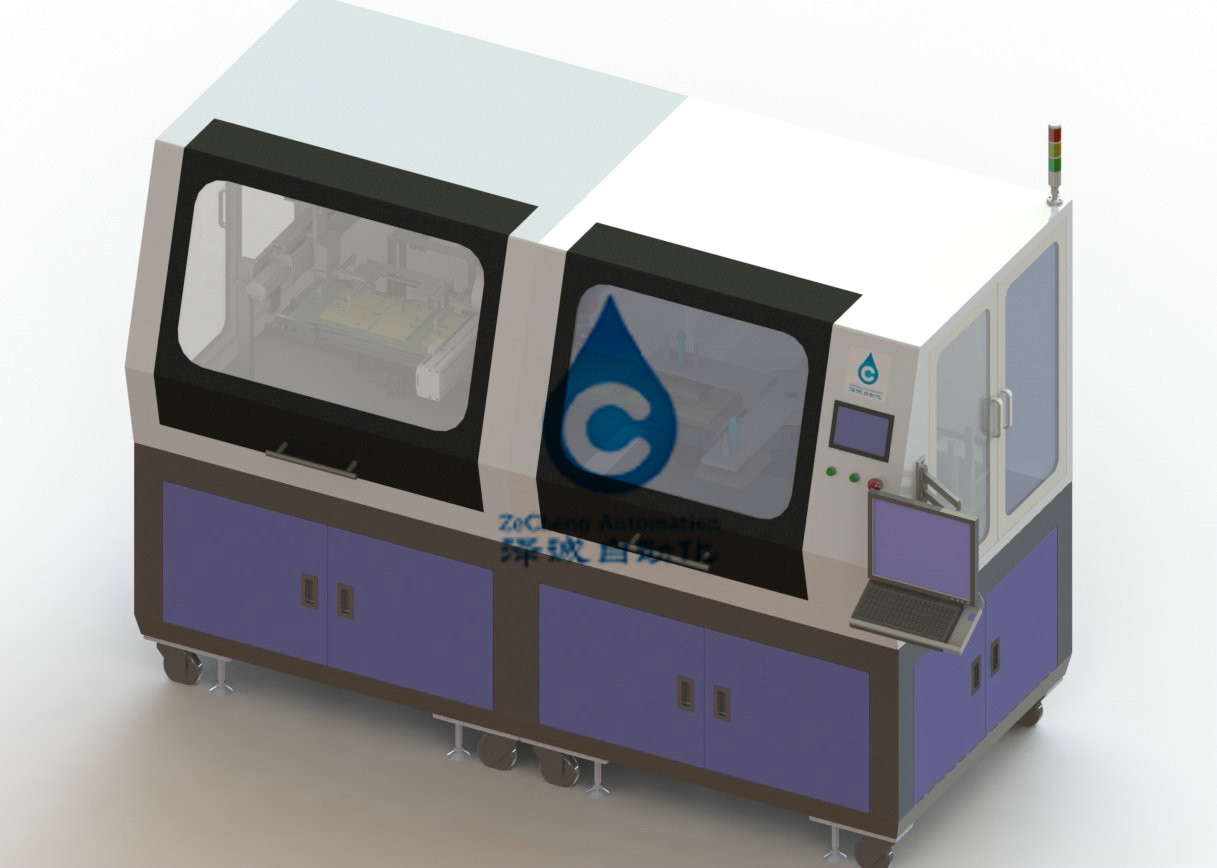

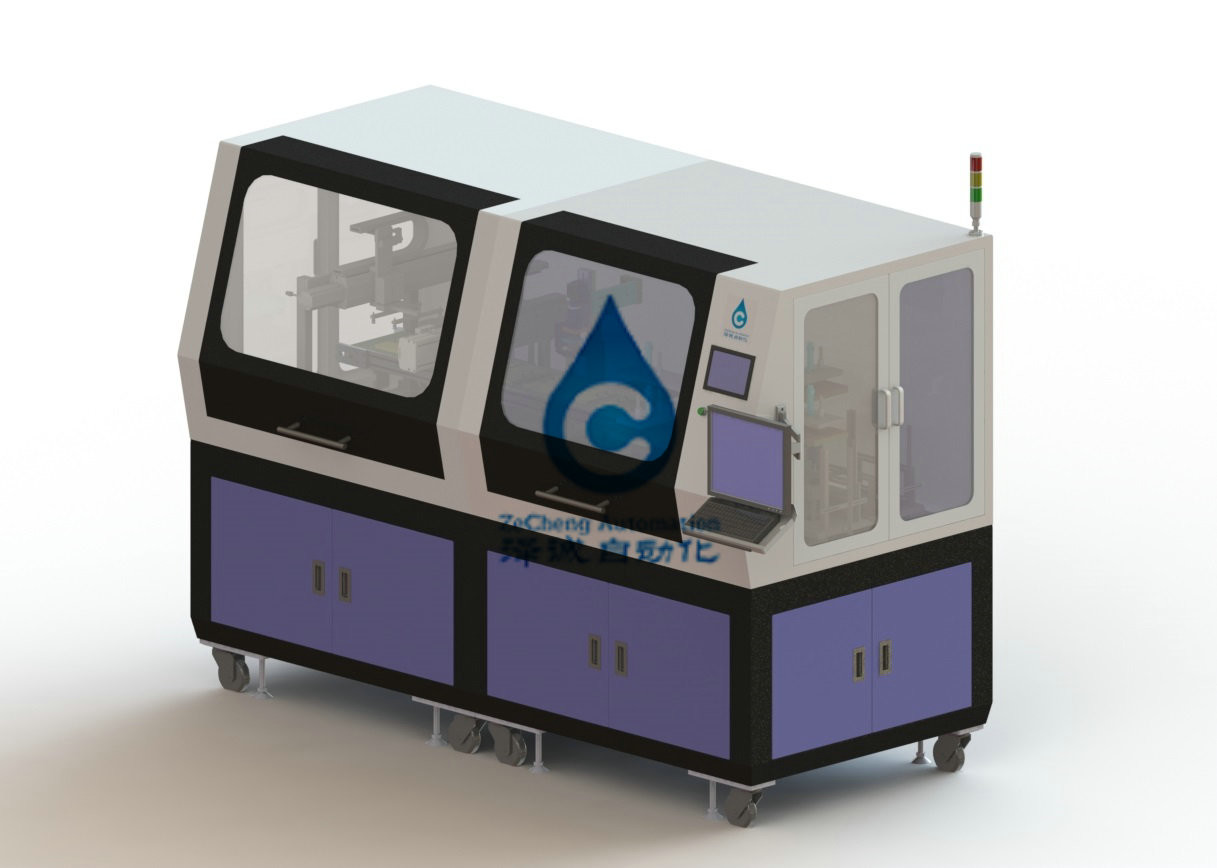

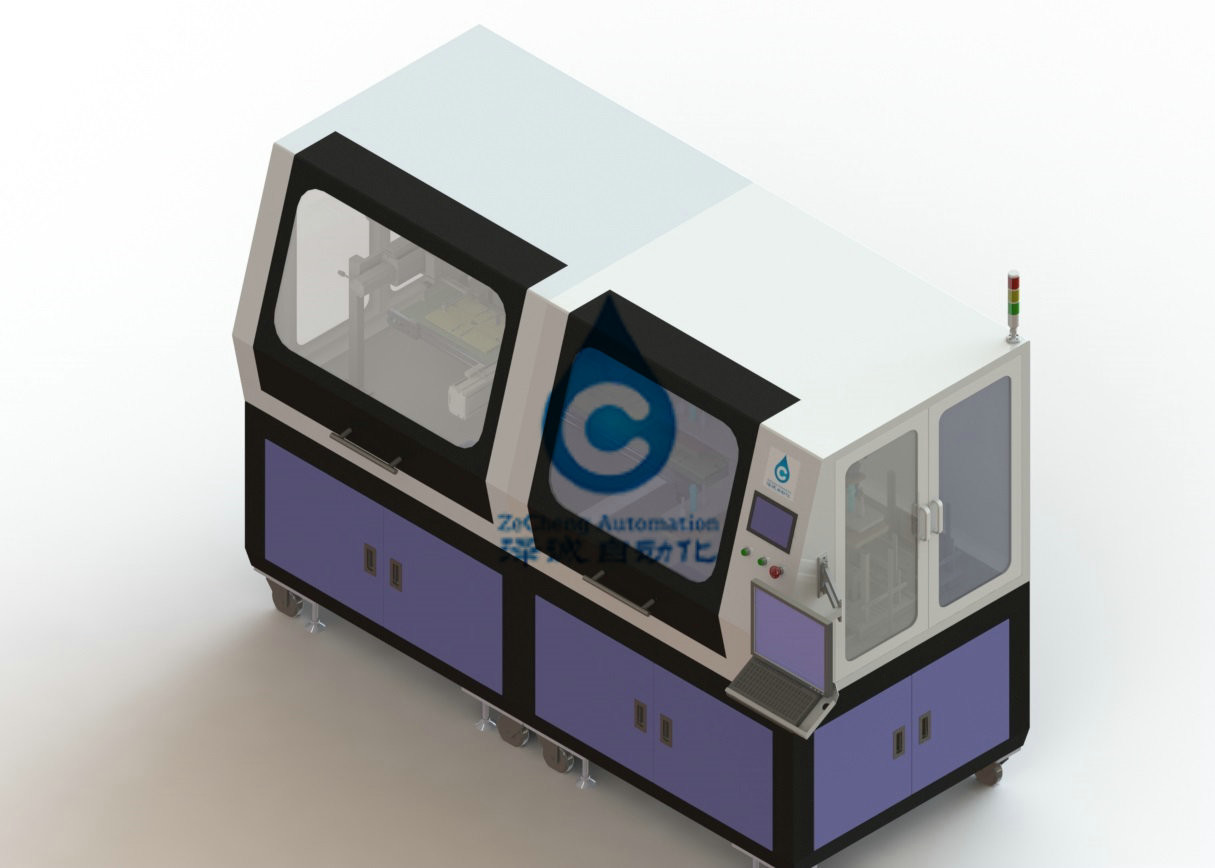

Battery Electrode CCD Quality Detector Lithium Ion Battery Making Machine

Battery Electrode CCD Quality Detector Lithium Ion Battery Making Machine

1, Design requirements of the quality inspection machine for battery electrode:

1.1. This equipment is suitable for lithium batteries, lithium iron phosphate batteries, lithium iron batteries, nickel cadmium battery, nickel zinc battery, nickel iron batteries, super capacitors and other new energy battery pole piece's surface quality detection, using CCD imaging principle, the battery pole in the powder, scratch, crack, surface quality has a problem such as sampling sheet selected, qualified products collected material in the box.

2, Equipment technical parameters

3 CCD pole slice detection system: CCD imaging system is adopted to detect the battery pole slice. The detection contents are as follows.

4, Main equipment components

This equipment mainly USES CCD imaging principle to take photos on the surface of the pole, and compares it with the standard pole to judge whether it is qualified or not.When there is no pole, the material box can be automatically switched. The manipulator sucks up the pole sheet from the material box and turns it 90 degrees. CCD detects the bottom of the pole sheet and turns it 90 degrees.Qualified products continue to move on the conveyor belt to the above detection station, after the detection automatically sent to the discharging station, qualified products into the material box, unqualified products into the waste box.

5. Environmental requirements

Please provide the following energy medium

5.1 the power supply

5.1.1 voltage AC220V± 10%

5.1.2 frequency 50 hz + 1 hz

5.2. Temperature: 5-35℃Storage temperature: 0-40℃

5.3. Air source: 0.4-0.6mpa

5.4 humidity 30-80% but should not dew.

5.5 there is no corrosive gas, liquid or explosive gas on site

5.6 equipment color requirements: according to the color plate or color number provided by party a, the computer is white.
