1100KG Li Ion Battery Manufacturing Equipment Cylindrical Battery Sealing Machine
1. Introduction of equipment function and principle

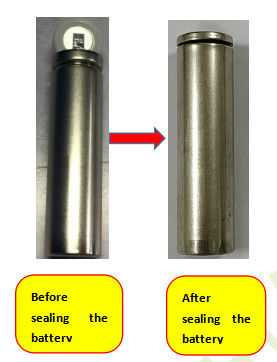

Used for automatic sealing of cylindrical battery 18650. The machine adopts continuous feeding and seals for three times. The pier seal shaping ensures the consistency of the total height of the battery.
2. Equipment action flow
Feed pull into the battery → feeding mechanism continuous battery → battery through one → two → three → pier seal side out → into the casing machine.
3: technical parameters of the equipment
| The basic parameters | |
| Single machine efficiency | 50 PPM or higher; |
| Product pass rate | 99.50% |
| Device rotation rate | 98% |
| Head service life | 300000 times |
| Lock tile service life | 500000 times |
| The noise | 60 db or less |
| Plant configuration | |
| The compressed air | ≥0.6 mpa |
| The input voltage | 380 v / 50 hz, 4.0千瓦 |
Cooperation commitment
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1)Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2)After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3)During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
,
