Item
|
|
|
|
Technical parameter
|
Production efficiency
|
1200-1500PCS/H
|
|
CCD detection accuracy
|
±0.05mm
|
|
|
Laser welding accuracy
|
±0.1mm
|
|
|
Fixture positioning accuracy
|
±0.1mm
|
|
|
Total power (kw)
|
20
|
|
|
Normal operating power (kw)
|
18
|
|
|
Qualified rate of equipment products
|
≥99.5% (only bad products caused by this machine)
|
|
|
equipment failure rate
|
Less than or equal to 5% (failure caused by equipment only)
|
|

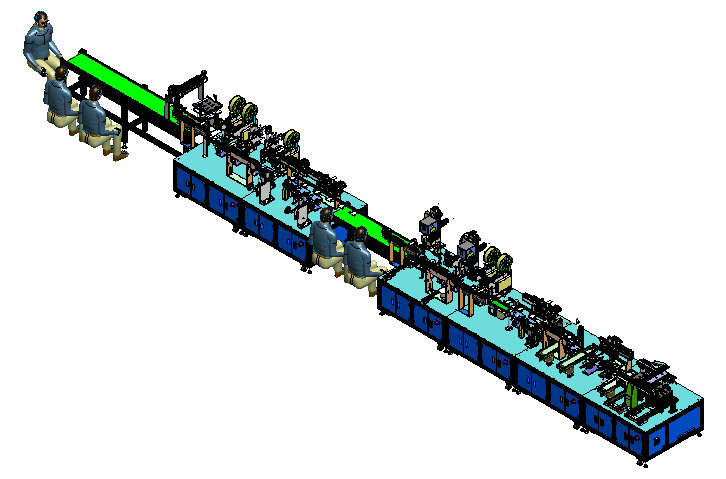

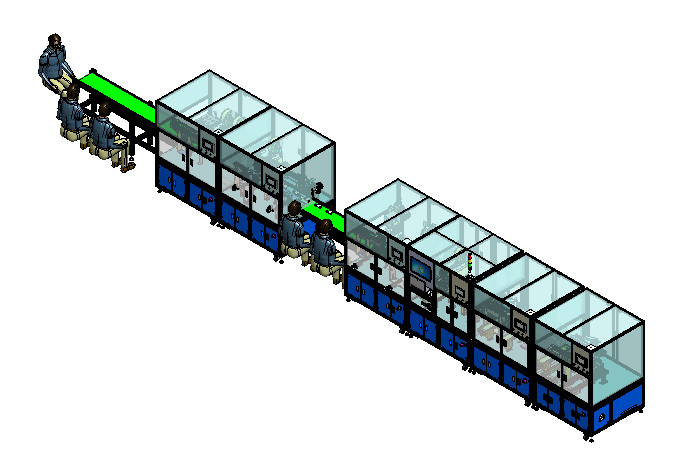

4. Equipment composition
|
NO. |
Process name
|
Device name
|
Quantity
|
| 1 |
Battery charging
|
Automatic feeder
|
1 set
|
| 2 |
Empty pallet removal
|
||
| 3 |
Scan code
|
OCV test separator
|
1 set
|
| 4 |
Measuring external dimensions
|
||
| 5 |
Rejection of unqualified external dimensions
|
||
| 6 |
OCV test
|
||
| 7 |
OCV test unqualified reject
|
||
| 8 |
CCD detection tab
|
||
| 9 |
Pole ear cutting
|
Pole ear cutting machine
|
1 set
|
| 10 |
Auricular reshaping
|
||
| 11 |
CCD detection tab
|
||
| 12 |
Rejection of unqualified cutting lugs
|
||
| 13 |
Stick highland barley paper on the front
|
PTC welding bending machine for sticking highland barley paper
|
1 set
|
| 14 |
Stick highland barley paper on the back
|
||
| 15 |
PTC plate on vibrating plate
|
||
| 16 |
Laser Welding of Positive Electrode and PTC Plate
|
||
| 17 |
PTC paste dupont paper
|
||
| 18 |
PTC discount
|
||
| 19 |
PCM manual feeding
|
PCM welding machine
|
1 set
|
| 20 |
Laser welding PCM
|
||
| 21 |
Conveying line battery to be tested
|
||
| 22 |
test
|
Artificial
|
|
| 23 |
PCM is pasted with high-temperature gummed paper.
|
PCM high temperature adhesive tape machine
|
1 set
|
| 24 |
PCM coated with high temperature gummed paper
|
||
| 25 |
Fold PCM board
|
||
| 26 |
Folding PCM board shaping
|
||
| 27 |
PCM coated with high temperature adhesive
|
||
| 28 |
labelling
|
High temperature glue machine for labeling
|
1 set
|
| 29 |
High-temperature adhesive for labeling
|
||
| 30 |
Labels are coated with high temperature glue.
|
||
| 31 |
High temperature paper wrapped battery
|
||
| 32 |
The front side is pasted with double-sided adhesive
|
Double-sided adhesive backing machine with high-temperature adhesive coating
|
1 set
|
| 33 |
Stick double-sided adhesive on the back
|
||
| 34 |
Finish blanking
|
||
| 35 |
Empty tray loading
|
Automatic blanking machine
|
1 set
|
| 36 |
Battery tray
|
||
| 37 |
functional test
|
Artificial
|
|
| 38 |
Appearance test
|
||
| 39 |
be put in storage
|
5. Cooperation commitment
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
