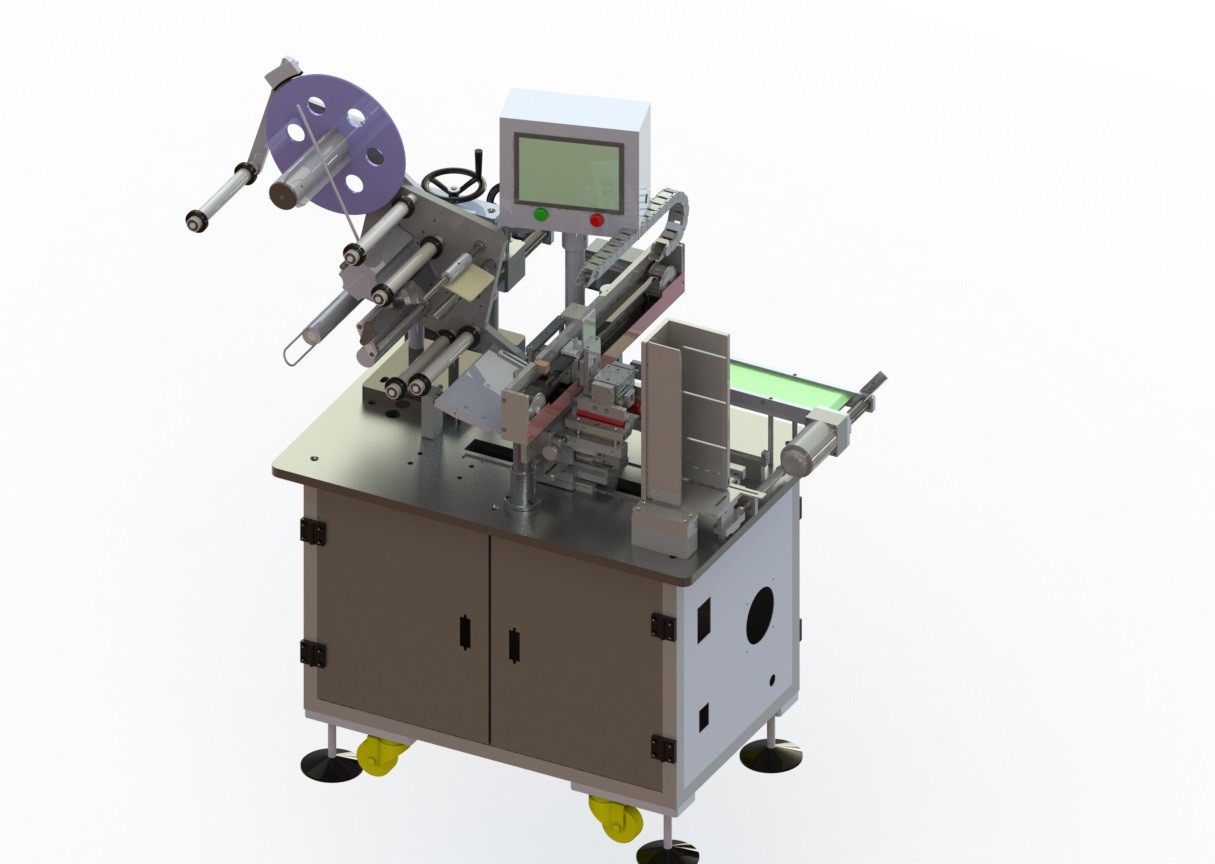

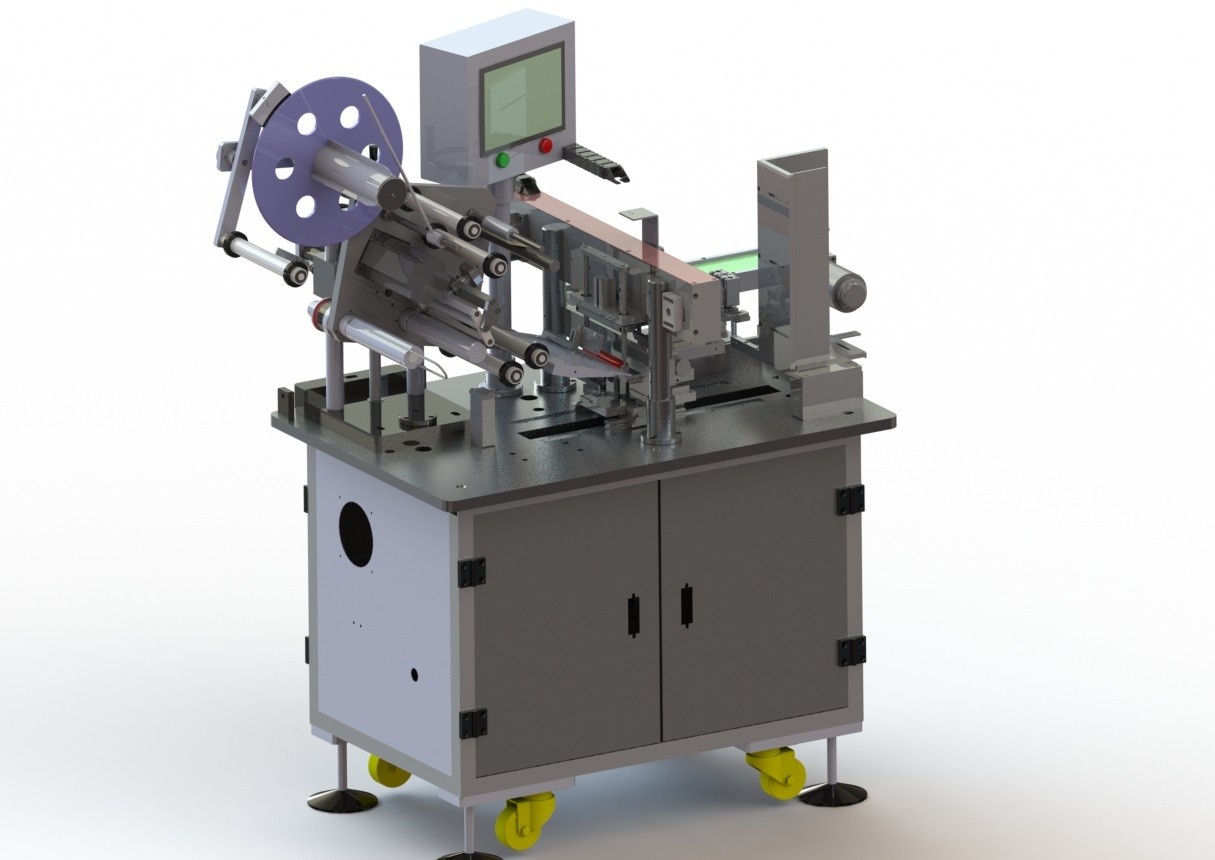

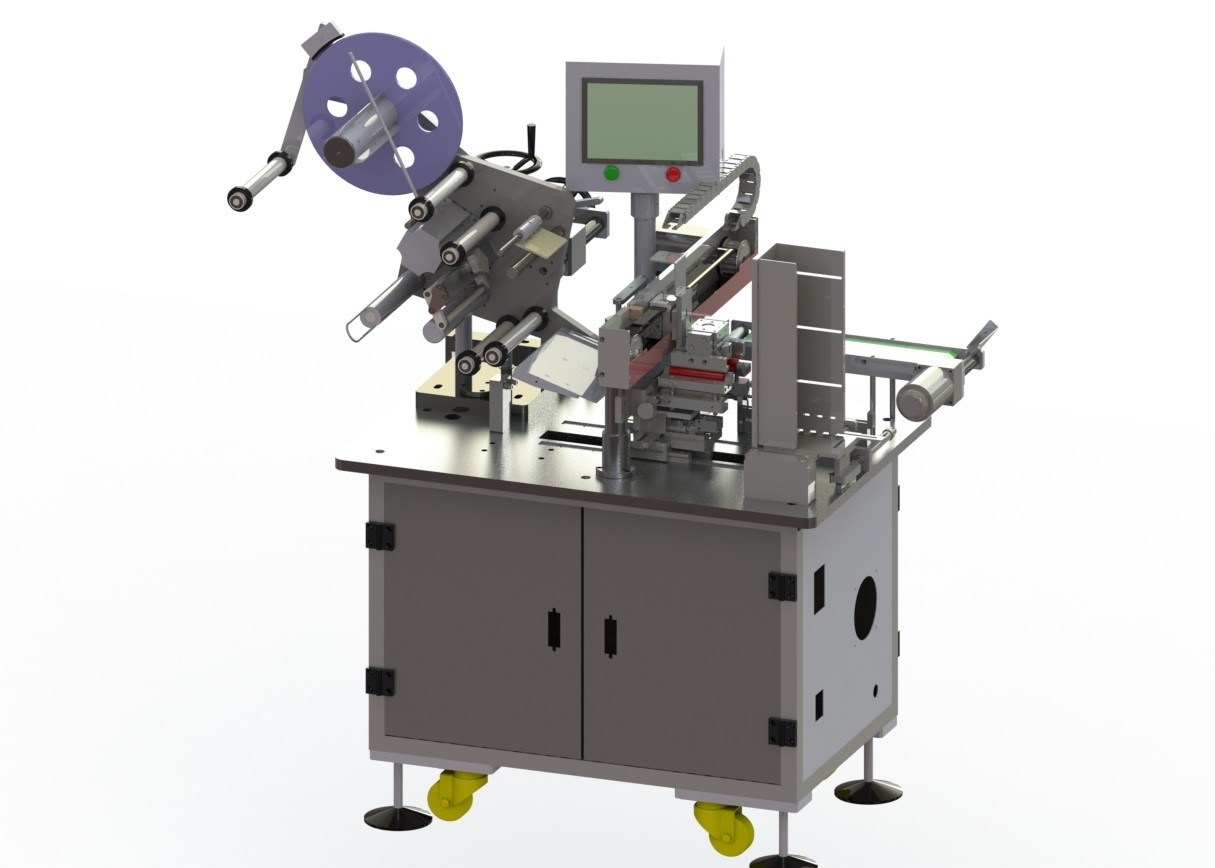

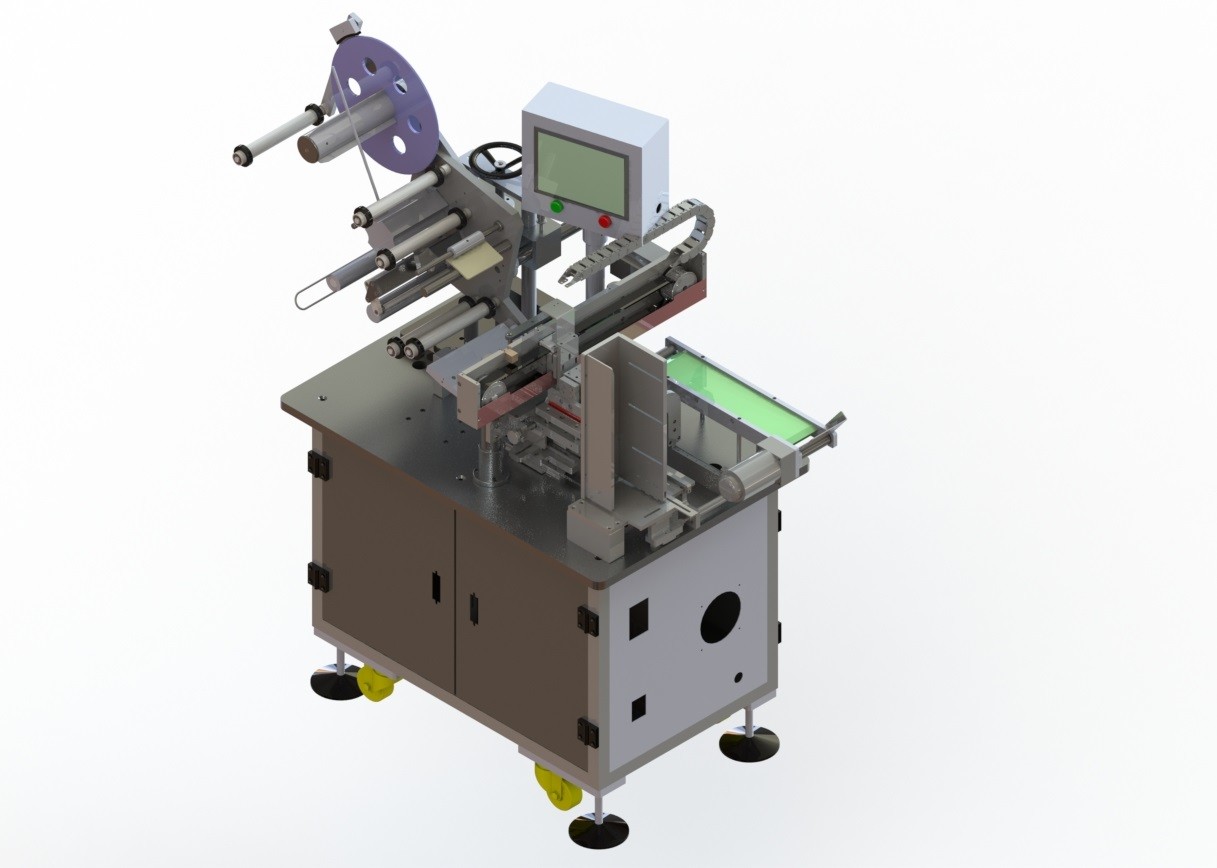

2KW Battery Pack Assembly Line Cell Phone Digital Battery Case Labeling Machine
1,The profile
This device is mainly used for mobile phone battery shell labeling, which can effectively solve the problem of inaccurate manual labeling position and low efficiency.
Characteristics --- the label adopts coil feeding, automatic unwinding, automatic stripping of the label, automatic receiving of the label paper, manual battery positioning, manipulator suction and release of the battery, automatic packaging of the entire battery shell, automatic blanking.
-- high efficiency: 10 PCS/min.
3,To adapt to the specifications
3.1 adaptive objects
The battery size
| W(mm) | L(mm) | H(mm) |
| 35-55 | 40-70 | 2-10 |
3.2 technical parameters of the equipment
|
Specifications Item |
ZAB01C-00 | |
|
Technical parameters |
Efficiency (PPM) | 10 |
| Fixture width adjustable range | ±5mm(Adjustable or replaceable) | |
| Compressed air system | O.4-0.6MPa | |
| The total power(kw) | 2 | |
| Normal operating power(kw) | 1.7 | |
4,Mechanical specifications
4.1 rack systemThe device adopts aluminum profile frame, the substrate adopts 20mm thick steel plate or aluminum plate, and the surface is electroplated.
4.2 automatic label unwinding systemThe label into the roll material unroll, friction plate to maintain tension, the maximum size of the roll material 350mm.
4.3 label paper rewinding systemThe isolation paper head is manually stuck into the slot, the servo motor drives the drive wheel to pull the isolation paper forward, the sensor detects the label and stops, while the friction wheel drives the tightening shaft to tighten the isolation paper.
4.4 label stripping systemThe label in the rewinding motor drive, through the stripper, the label will be removed.
4.5 battery positioning systemManually place the battery in the guide plate, push the battery forward in turn, and push the battery to the positioning position.
4.6 labeling systemThe manipulator will be positioned good battery suction, placed on the label, the two sides of the labeling mechanism rise, the label will be affixed to the label, the front of the labeling mechanism rise, the front of the label will be attached to the battery, and finally the labeling mechanism behind the rise, the label will be good.
4.7 manipulator systemThe manipulator will stick the large side of the battery to pick up, at the same time left and right to move the label on both sides of the bottom.Place the pasted battery on the conveyor belt.
4.8 operating systemTouch screen operation.There is power on, emergency stop, manual, automatic button.
4.9 control panelThe machine is equipped with independent electrical board, leakage switch, dc stability power supply and other power circuit components, control PLC, relay, motor control device, etc.And external connection, using connectors and terminal table.The ceiling of the power cable is partially perforated.Cables and air ducts between other equipment are wired and piped below.
5,Energy mediumPlease provide the following energy medium
5.1 power supply
5.1.1 instantaneous change of voltage AC220V± 10% counterphase
5.1.2, frequency 50 hz + 1 hz
5.2 air
5.2.1 pressure 0.5mpa
5.2.2, capacity of 5 lper min
6,Environmental conditionsThe device can operate without barrier under the following environmental conditions.
6.1 temperature the dynamic temperature is 5-35℃Storage temperature: 0-40℃
6.2. Humidity 30-80% but no condensation.
