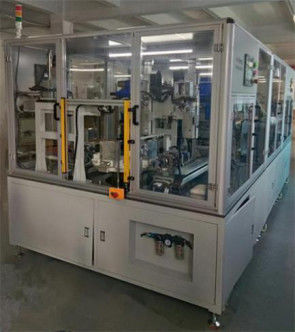

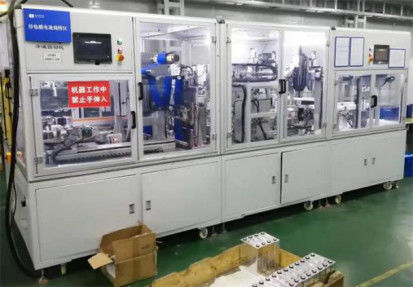

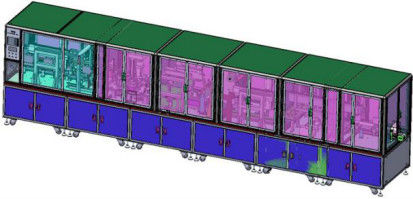

Lithium Ion Battery Assembly Line Fully automatic double station aluminum shell adhesive tape machine
1. Device functions

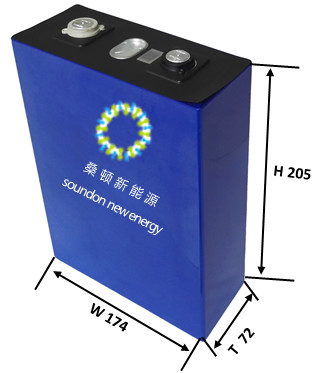

It is mainly used for square aluminum battery shell envelopment, including automatic battery feeding, code scanning, shell envelopment, insulation patch, appearance size detection, insulation test, blanking, etc. This envelopment line is automatic envelopment line, there is unqualified battery outflow channel, and the relevant detection data is automatically recorded.
2. Equipment process parameters requirements
| project | specifications |
| Thickness measuring pressure | Adjustable from 200 to 800Kgf, accuracy ±20kgf, resolution 0.1 KGF |
| Width measuring pressure | Adjustable from 5 to 20Kgf, accuracy ±1kgf, resolution 0.1 KGF |
| Height measurement pressure (pole column and pole column) | 0.5~5Kgf adjustable, accuracy ±1kgf, resolution 0.1kgf |
| Dimensional measurement accuracy | ±0.01mm, with a resolution of 0.001mm |
| Single machine capacity | 12 PPM or higher |
| An optimal rate | 99.5% or higher |
| Scrap rate | 0.01% or less |
| Device rotation rate | ≥98% (failure caused by equipment only) |
| Mean fail-free running time MTBF | 5 hours or more |
| The machine noise | ≤75dB (one meter from the outer wall of the equipment) |
| The engine bearing | 1.2 T / ㎡ or less |
3. Electrical parameters of the equipment
3.1 basic parameter requirements
|
Line body name
|
The compressed air | vacuum | The environment temperature | Environmental humidity | The ground bearing | Equipment power |
|
Double-station envelope testing machine |
After 28 m/h / 0.4 0.7 MPa | After 15 m/h - 80 KP ~ - 90 KP | 20 ~ 35 ℃ | 5 ~ 55% HR | > 1200 kg / ㎡ | AC380V, three-phase; Voltage fluctuation is less than ±10%; Power supply: 30KVA |
3.2 air route requirements (red represents the main pipeline, green represents the air route outlet, and yellow represents the standby air outlet), the pipeline is directly above the logistics line.
| Line body name | Number of air outlets for compressed air (green) | Power outlet (yellow) | Vacuum outlet (blue) | Specification (mm) |
| Double-station envelope testing machine | 6 | 6 | 3 | Φ12 |
