| मूक: | 1 pcs |
| मूल्य: | $4000-$6000 |
| स्टैंडर्ड पैकेजिंग: | wooden case |
| वितरण अवधि: | 7-15days |
| भुगतान विधि: | L/C, D/A, D/P, T/T, Western Union |
| पूर्ति क्षमता: | 100PCS a month |

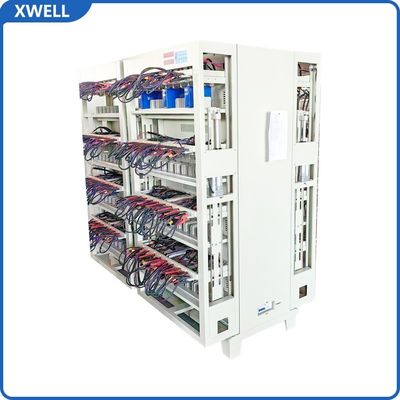

Prismatic Cell Capacity Grading Machine
Energy-feedback Prismatic Cell Capacity Grading Machine is used to test the charge and discharge performance of lithium-ion batteries,which can feed back the energy generated by battery discharge to the power grid, so as to achieve the purpose of energy conservation.
1.Independent CPU board, double keyboard board, front and back double side operation, the whole cabinet unified transmission control;
2.4-channel constant current and constant voltage control module
3.Two way AC / DC invertor module;
4.Pneumatic automatic clamping mode.
Technical Parameters
| Number of equipment channels | The whole machine has 32chs |
| Case color | Standard gray / black (customizable) |
| Clamp type | Custom |
| Working power supply | Three phase five wire AC380V土10%, 50Hz |
| Voltage measurement range | DC 0~5V |
| Current range | Charge DC 6120mA～120A; Discharge DC 120mA～120A |
| Negative pressure range | (-100KPa-0)adjustable |
| Data processing | Can record voltage, current, time, capacity etc, automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage, provide data curve and cycle diagram; can output text, excel,word or mdb format data file |
| Charging mode | Constant current; constant pressure; constant current & pressure |
| Charging cut-off conditions | Voltage, current, time, capacity |
| Protection function | Overvoltage, undervoltage, overcurrent, undercurrent, overcapacity protection, power off protection, data breakpoint recovery |
Product Details
|
|
