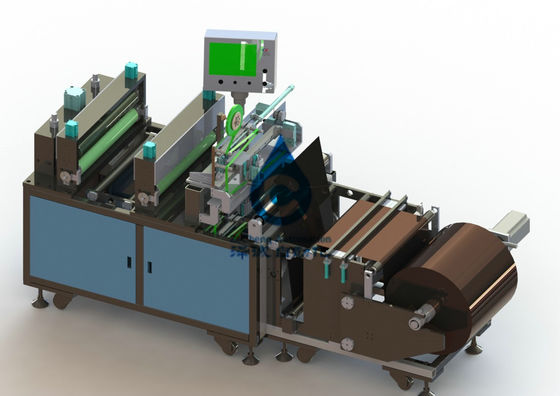

1, material specification1.
Product specifications
Plate type | W | L |
Unit:mm | ||
1 | 350-460 | 60-1500 |
Tape specifications | 10-30 | 350-460 |
2, Technical parameters
Pole length can be cut (mm) | <1000 | 1000~2000 | Unlimited length (manual collector) | ||
Cutting edge length error(mm) | ±0.5 | ||||
Length error of cut - off material area(mm) | ±0.5 | ||||
Cut edge straightness(mm) | ±0.02 | ||||
Cut the height of burrs(um) | ≤20 | ||||
production beat( ppm ) | 12 (750mmPole piece) | ||||
Bubble requirements | Diameter less than 2mm | ||||
Adhesive paper covers the scope of coating area(mm) | 0.5-2 | ||||
Receiving way | Tilt down, manual material collection |

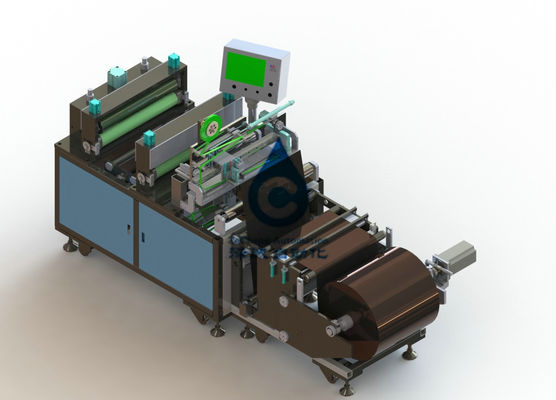

3, performance characteristics

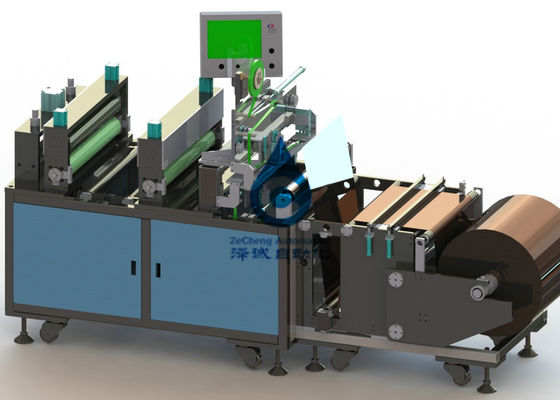

3.1,The pole piece coiling material is uncoiling automatically, the pole piece coiling material is kept automatically uncoiling by the stepper motor, the air swelling shaft expands the coiling material, the deviation is rectified automatically, and the coil is uncoiling automatically.
3.2. Tension mechanism: use gravity roller to maintain constant tension.
3.3. Refueling platform: when refueling, automatically press the front pole piece, press the new pole piece after replacement, cut off the pole piece and stick the front and back two pole pieces with adhesive tape.
3.4. Tape rolling mechanism: the stepping motor drives the tape rolling mechanism forward through the synchronous belt. After the tape is affixed to the pole, the motor moves to roll the tape.When in position, cut off.
4. Product use environment
Compressed air: 0.4 ~ 0.6mpa (4-6kgf/cm), flow rate of each set of compressed air is 10L/min, utilization rate is 50%
Ambient temperature: 20 ~ 35℃
Relative humidity: 5 ~ 55%HR
Power source: AC220V, single-phase;Voltage fluctuation is less than ±10%;Power supply: 3KVAVacuum degree: -101kp ~ -50kp.
Commitment
1. New equipment promise
Our company guarantees that all the components of equipment will be in completely new condition, none used components.
2. Confidential commitment.
Our company promises that without the written permission, all the technical information and business information of client will not be leak to any third parties.
3. After-sales service commitment
Our company provide one year warranty begin from date of site acceptance test, the maintenance cost is exempted during the warranty period, the wearing parts of the equipment and parts damaged by improper use or force of majeure is excluded from warranty. If the equipment occurred disfunction and need repair by seller after the expired of warranty, the cost negotiated by both sides.
