Lithium Ion Battery Pole Sheet Bag Making Machine omron PLC Control System



1. Brief introduction of pole sheet bag making machine



This equipment is used for pole-sheet bag making: using two coils diaphragm, respectively uncoil, tension control, and then put the pole-sheet on one side of the diaphragm, diaphragm automatically pull, the pole-sheet is sandwiched between the two diaphragm , the upper diaphragm can move up and down according to the progress of the pole-sheet, gradually sandwiched the pole-sheet between the diaphragm; Two repeatedly exchanged moving manipulator (edge ​​with heating bump) clamp the pole and diaphragm move, at the same time the upper and lower diaphragm hot, the manipulator move in place, stop, diaphragm cutting mechanism to cut off the diaphragm, at the same time the cutting port automatically welded together.



2. The design requirements



2.1. This machine is suitable for the automatic envelop of battery anode or cathode



Degree 170mm, width 100mm (excluding polar ears), thickness 100-300 m; (the effective length of the guide film is 240mm).



2.2. The pole pieces have been punched and placed in the material box. The thickness of the material box is 60mm.



2.3. Pole flat, pole burr less than 25 m;



2.4. The accuracy error of pole length and width is less than ±0.1mm;



2.5. Beat: 12PPM (5 seconds/piece);



2.6. Diaphragm welded seam 0.2mm-0.5mm;



2.7. Bag - making hot welding tool head, using brass edge welding.



3. Main components of equipment

The serial number System composition

The

system configuration



Brand or treatment

The number of
1 Rack system     1 set of
Square welded skeleton structure The lacquer that bake 1
The base plate Phosphating blackening of steel pieces 1
2 Diaphragm unwinding system     2 sets of
Rolling institutions   2
Put a roll of motor

R control



2
3 Tension system     2 sets of
potentiometer keyence 2
cylinder SMC 2
4 Bin system     2 sets of
Stepper motor R control 1
Ball screw silver 1
coupling lenk 1
5

Secondary positioning system



    1 set of
cylinder SMC 1
Linear guide silver 4
6 Heat sealing system     2 sets of
cylinder SMC 2
Linear bearing silver 8
The thermostat omron 4
7 Material pull system     1
Finger cylinder SMC 2
Linear guide silver 4
Stepper motor R control 1
8

Manipulator system



    1 set of
Stepper motor R control 1
Ball screw silver 1
Linear guide silver 2
cylinder SMC 2
9 The operating system     1 set of
Touch screen Kunlun pass ty 1
10 Control system     1 set of
PLC omron 1

4. Equipment technical parameters

specificationsproject ZBCA03A-00
Technical parameters Efficiency (PPM) 12
Product specification See the attached sheet size chart
Vacuum system -95kpa ~ -50kpa. , vacuum source provided by party a
Equipment failure rate Less than or equal to 2 percent
Total power (kw) 6
Normal operating power (kw) 5.6

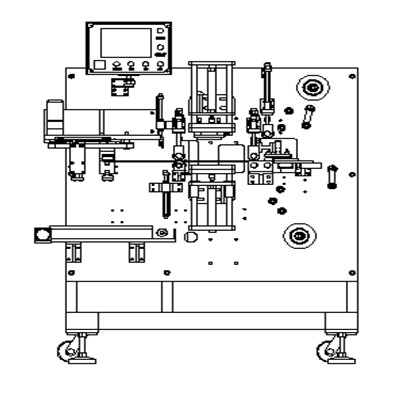

5. Device profile view

6. Description of main equipment parts



6.1. Automatic tension release diaphragm mechanism: including Japanese dongfang motor, reducer, compact potentiometer, low-friction cylinder, and pendulum mechanism.



6.2. Displacing mechanism: including servo motor, reducer, sensor, ball screw and vacuum device, pneumatic element



The products are from Japan SMC company



6.3 exchange welding manipulator: including servo motor, reducer, sensor, ball screw and pneumatic clamping mechanism, PID temperature control device, etc., pneumatic components using Japan SMC products



6.4. Conveyor belt: a flat belt with independent and continuous movement;



6.5. Control system: the machine is equipped with independent electrical board, leakage switch, dc stability power supply and other power circuit components, control PLC, relay, motor control device, etc. And external connection, using connectors and terminal table. PLC USES OMRON. The ceiling of the power cable is partially perforated. Cables and air ducts between other equipment are wired and piped b
