15PPM Injector Battery Production Equipment Polymer Battery Moulding Machine

Negotiation, email communication
15PPM Injector Battery Production Equipment Polymer Battery Moulding Machine
Features Gallery Product Description Request A Quote
Condition:: New
Year: 2022
Dimension(L*W*H):(kw): 2600*2000mm*2250mm
Voltage: 380V
Effectiveness: 15PPM
Weight: 1000 KG
High Light:

15PPM Battery Production Equipment


injector Battery Production Equipment


polymer battery moulding machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

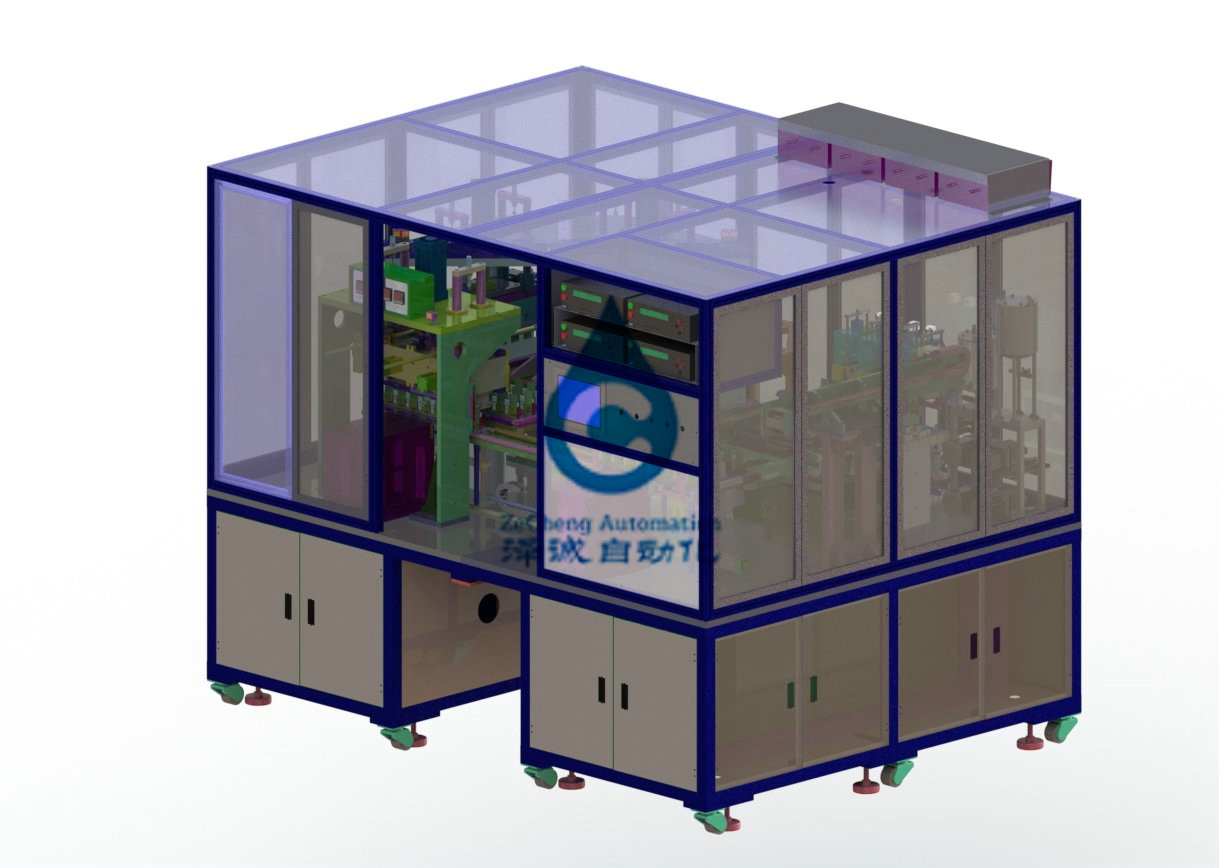

15PPM Injector Battery Production Equipment Polymer Battery Moulding Machine 0

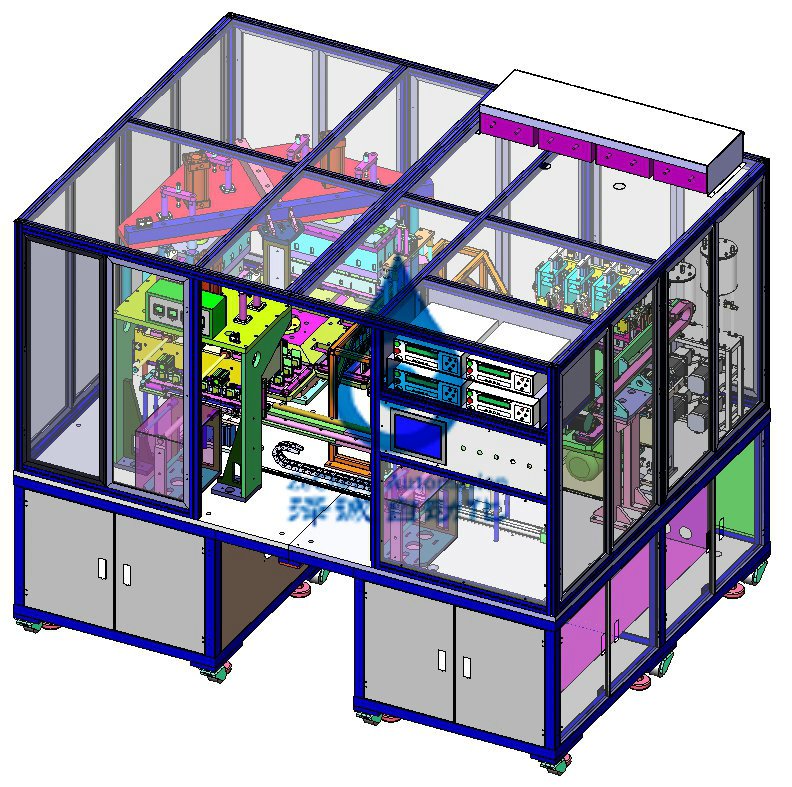

15PPM Injector Battery Production Equipment Polymer Battery Moulding Machine 1
1, equipment introduction.
1.1,The device is suitable for short-circuit test of bluetooth flexible packaging battery, liquid injection, standing, sealing and
other production processes.
1.2,The machine shall be installed in the drying room for production operation, manual feeding and manual feeding.
1.3,3. Main functions of this machine:
1.3.1) manual scanning and feeding
1.3.2 short circuit test before liquid injection
1.3.3) computer management of product data
1.3.4) the battery is placed in vacuum after injection
1.3.5) automatic vacuum sealing
1.3.6) automatic packaging
1.3.7) Under the artificial materialx
2. Adapt to product specifications
W (mm)
H (mm)
3,Main parameters of the equipment

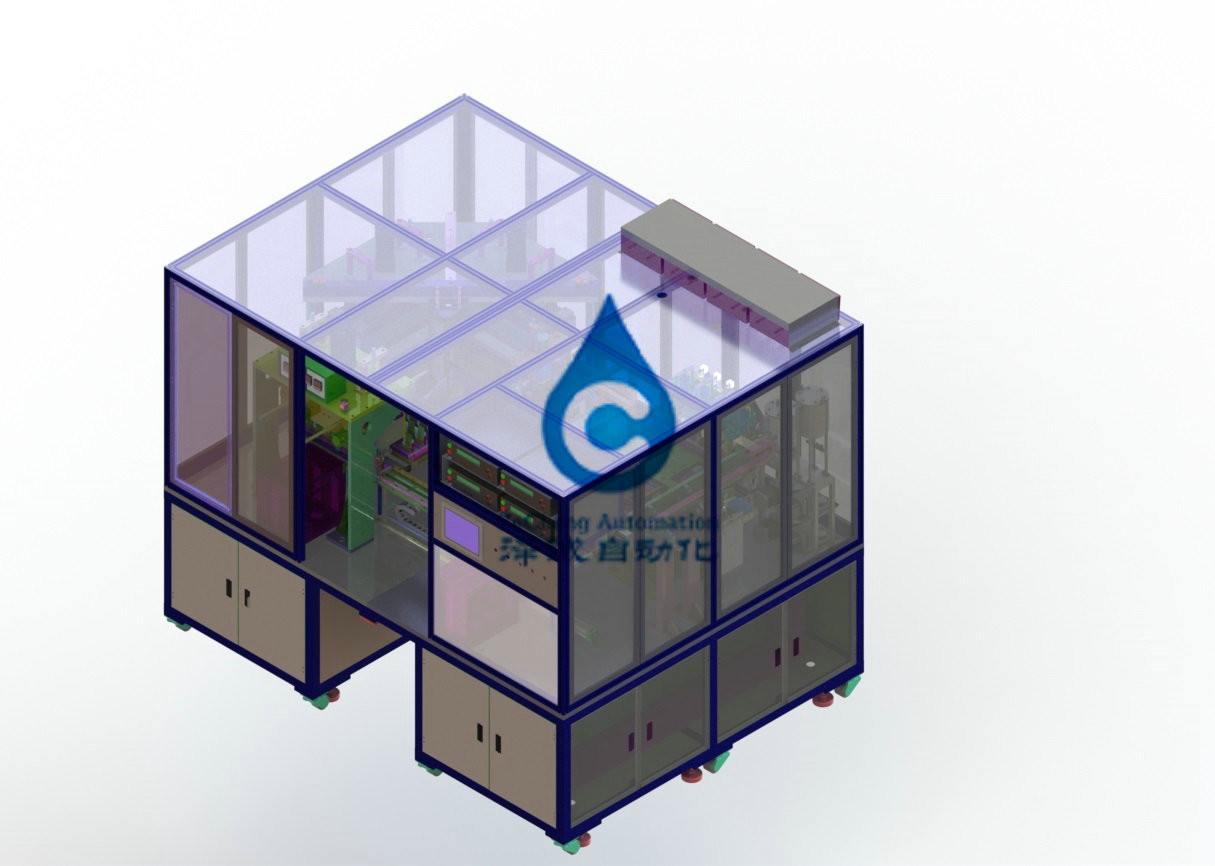

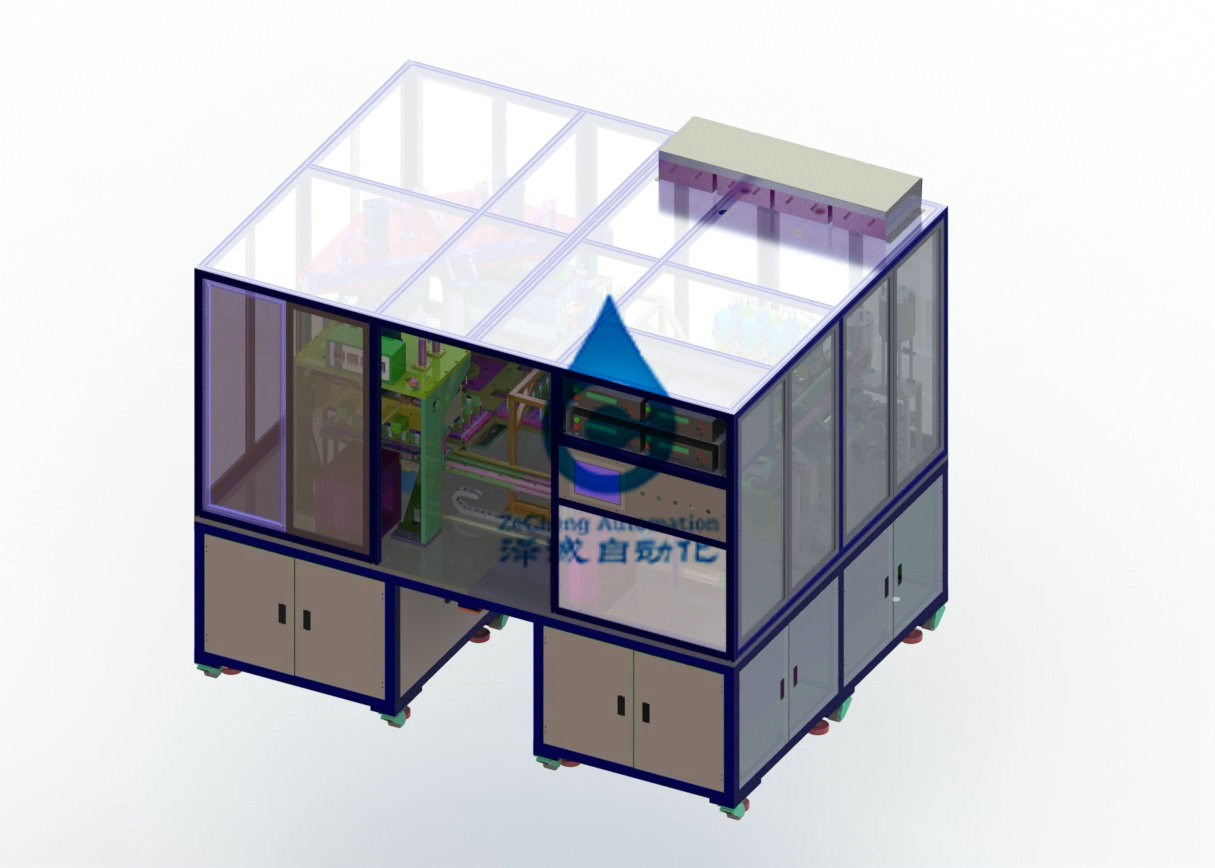

1.Appearance reference size: approx. 2600(L)*2000(W)*2250mm(H), weight: approx. 1000KG.

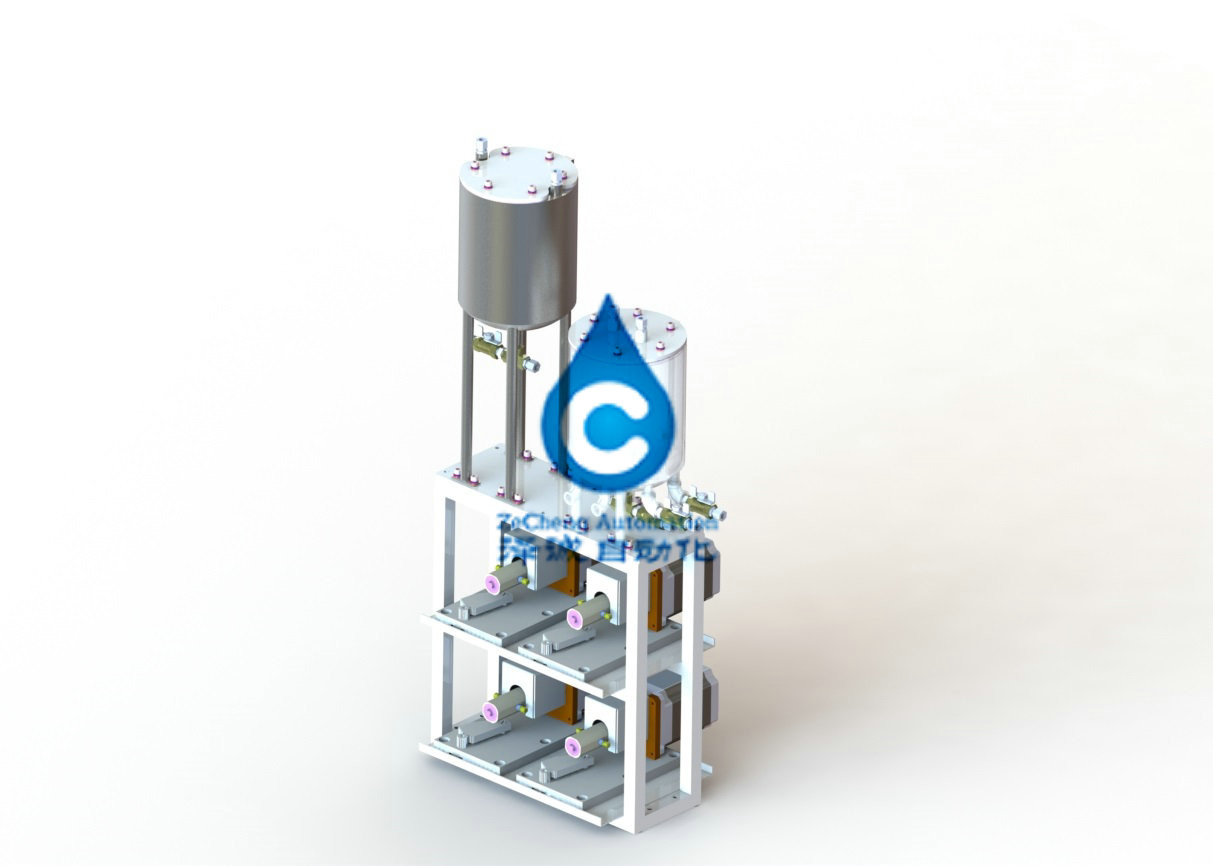

2. Third-party equipment to be configured:Liquid injection pump: 4 sets (electric liquid injection pump);Injection accuracy ±0.25%.The maximum flow rate is 10mL/s.Short circuit tester: four USES Yangtze YD9820A insulation resistance tester,
resistance measurement range: 1 x 1012 x 103 Ω - 1 Ω, resistance measurement accuracy: < 10 g Ω plus or minus 3% plus or minus 3 words, or 10 g Ω plus or minus 8% plus or minus 3 words.
3.The data of pre-injection short-circuit test and post-injection short-circuit test can be compared on the configured computer.
4. Equipment capacity: about 15PPM, depending on the process flow, when the total standing time of the battery is 3 minutes.
5.Vacuum setting: #1 cavity: -60kpa, #2 cavity: -80kpa.
6.Vacuum package setting: package vacuum: -80~85KPa, package temperature: maximum 250 C, package time: no more than 6 seconds,
head width: 6~8MM.The unsealed area of the battery packaging edge from the opening shall not exceed 5MM.
7.The battery man moves the charging box
8. Equipment operation indicators:Product excellence rate: 99.5%;Equipment utilization: 95%

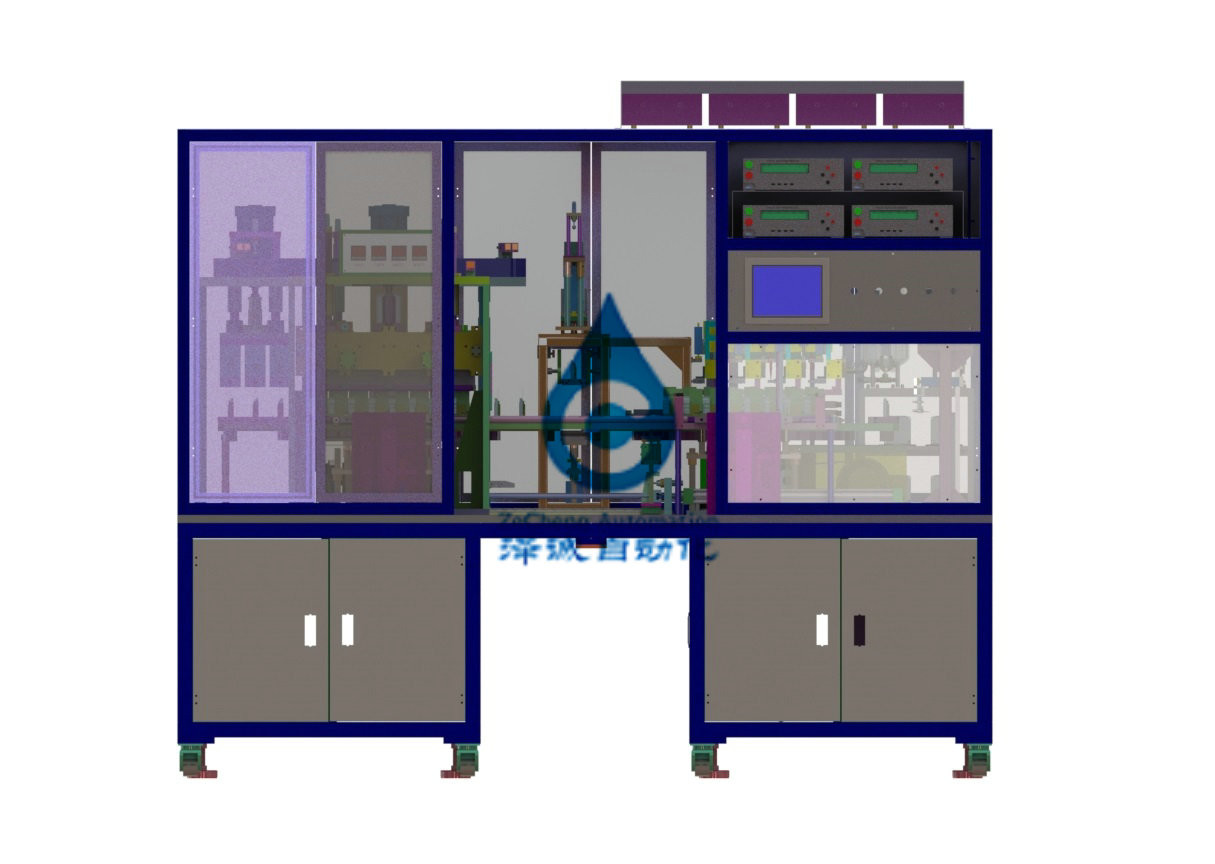

9. The equipment is equipped with transparent outer cover and plexiglass door.
10. The equipment is equipped with emergency stop button, and there are obvious warning signs in the area with security threats
