Name: Battery Pole Piece Tab Laser Cutting Machine Laser Making Machine 3kw 220V
Brand: ZeCheng
SKU: ZC
Price: 1.00 USD
Availability: InStock
Rating: 4.6 (196 reviews)

Features Gallery Product Description Request A Quote

Features

Specifications

Condition:: New

Year: 2022

Dimension(L*W*H):（kw): W3800*H2000*D1400

Voltage: 3kw, 220V

Effectiveness: Keep Working

Weight: 2000 KG

High Light:

220V Battery Laser Cutting Machine

Battery Pole Piece Laser Cutting Machine

Battery Pole Piece Laser Making Machine

Basic Infomation

Place of Origin: China

Brand Name: ZeCheng

Model Number: ZC

Payment & Shipping Terms

Packaging Details: Wooden box

Delivery Time: 90 Working day

Payment Terms: L/C, T/T

Supply Ability: 10 sets per months

Gallery

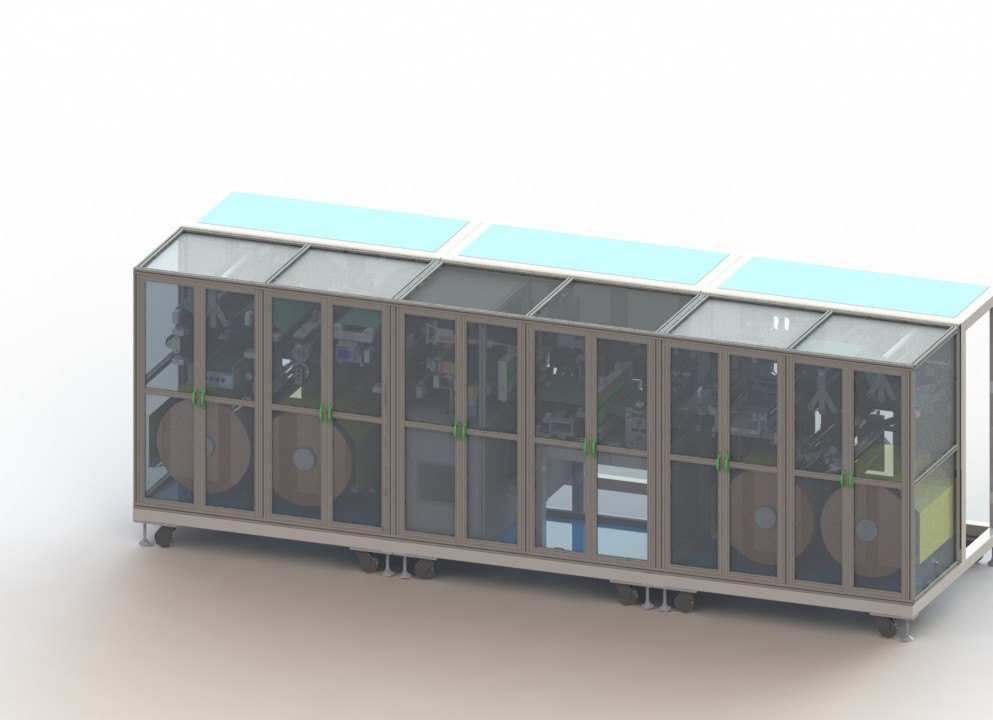

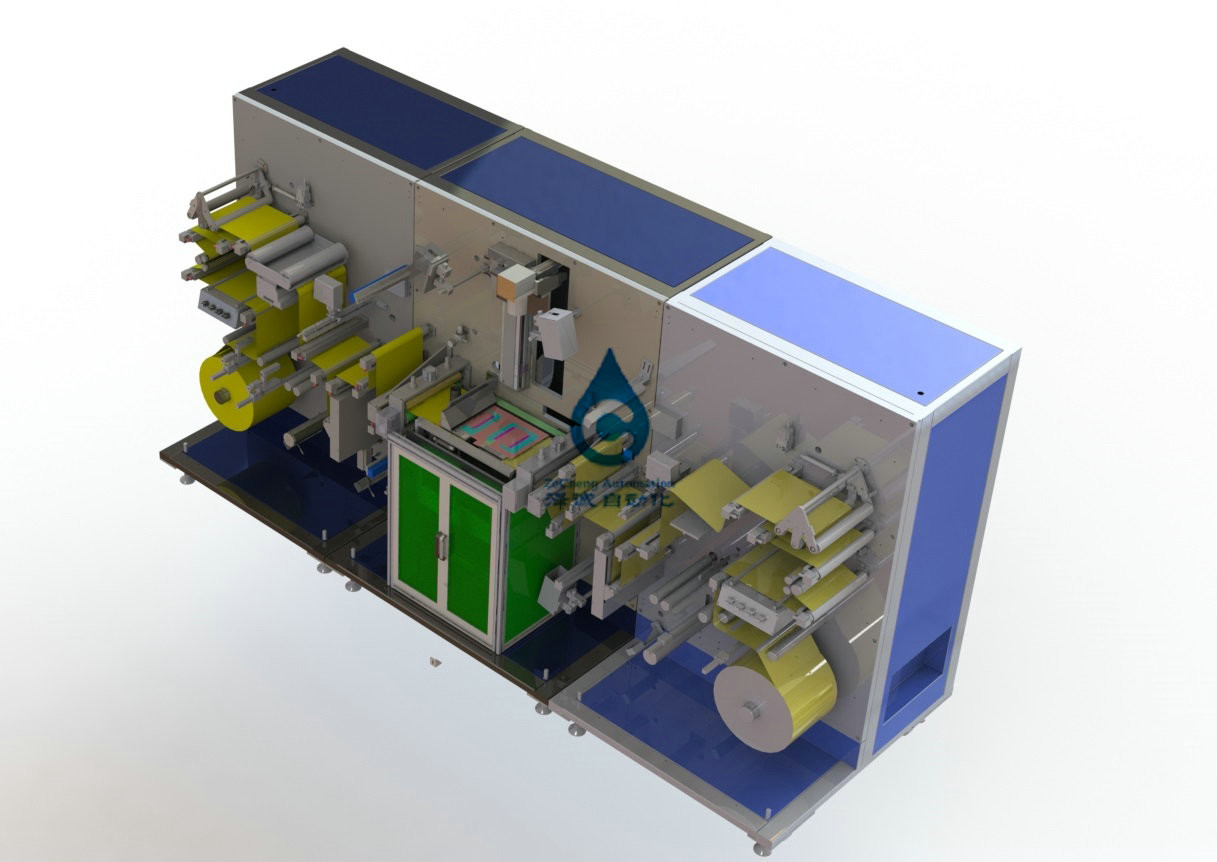

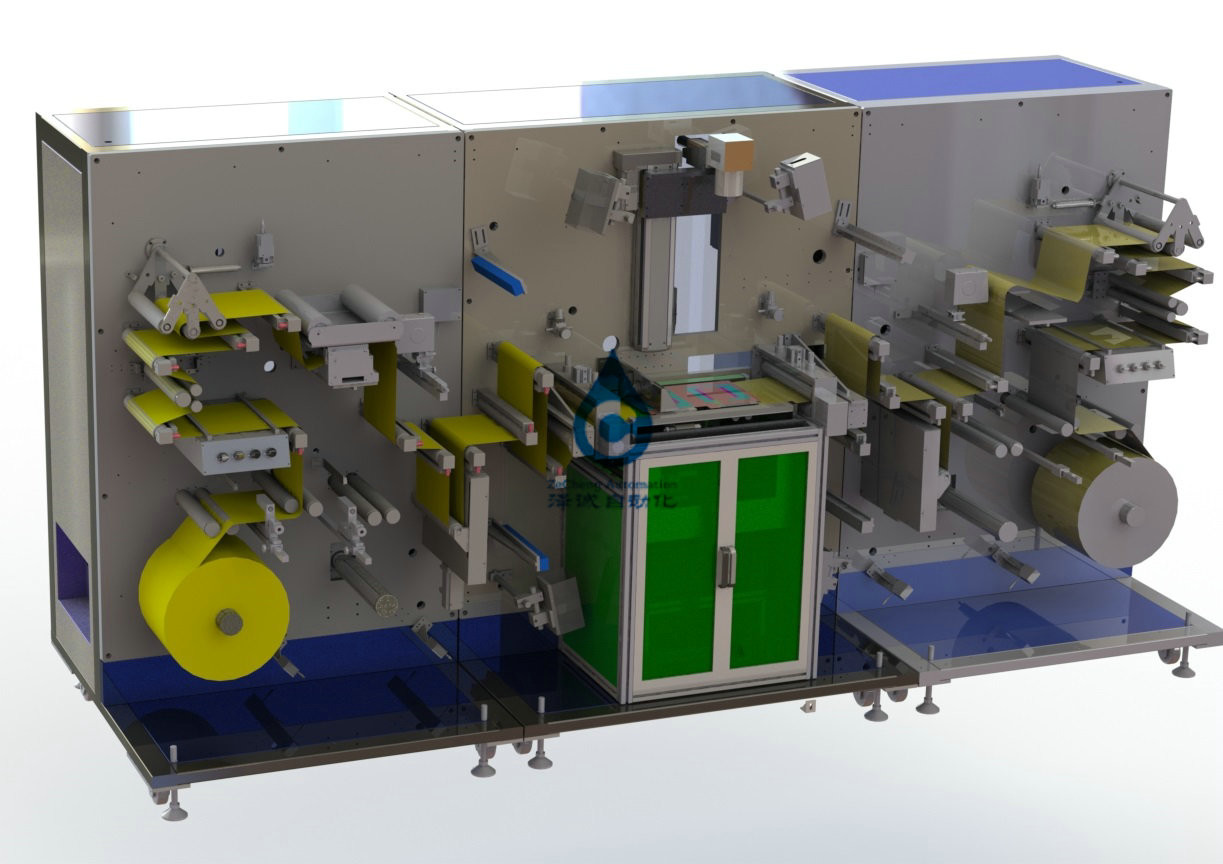

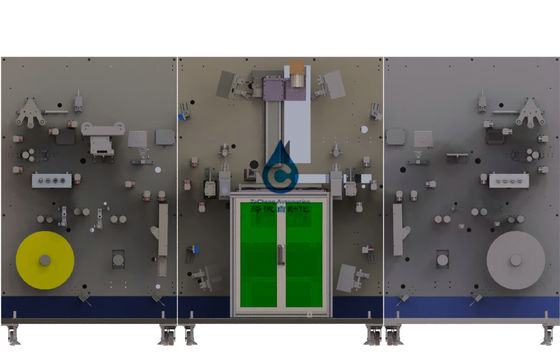

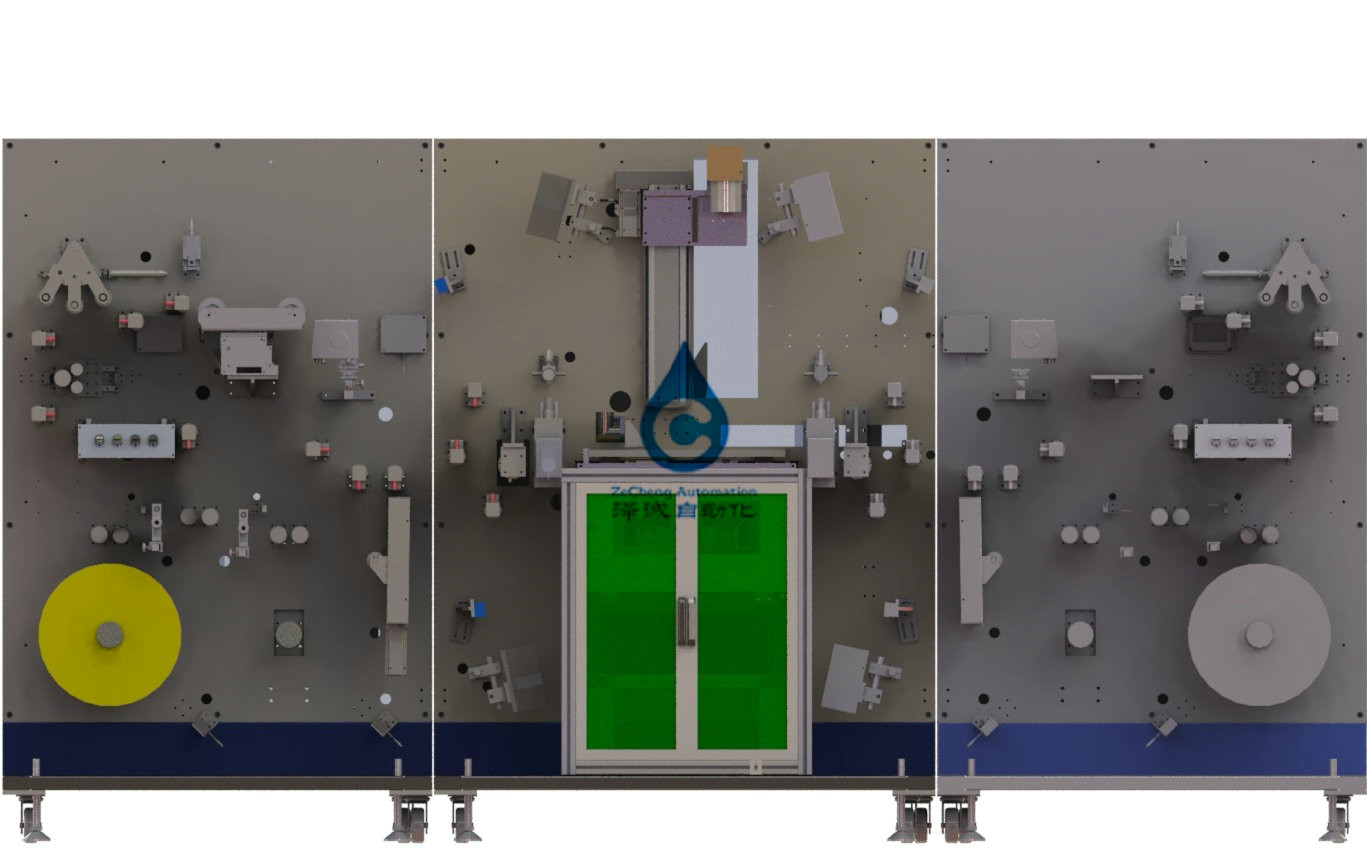

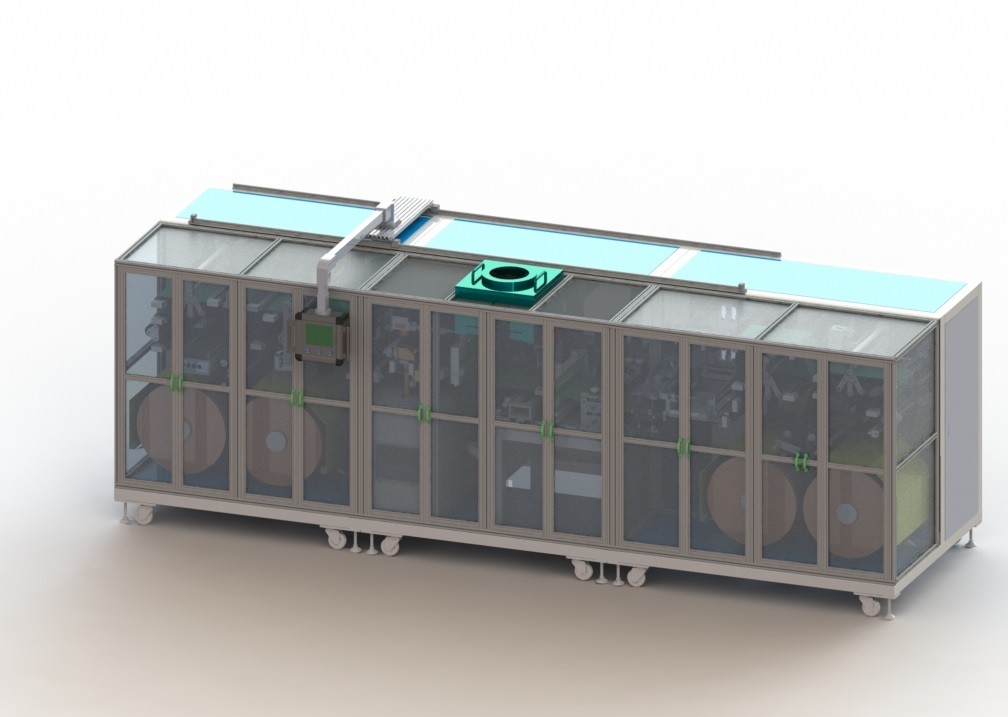

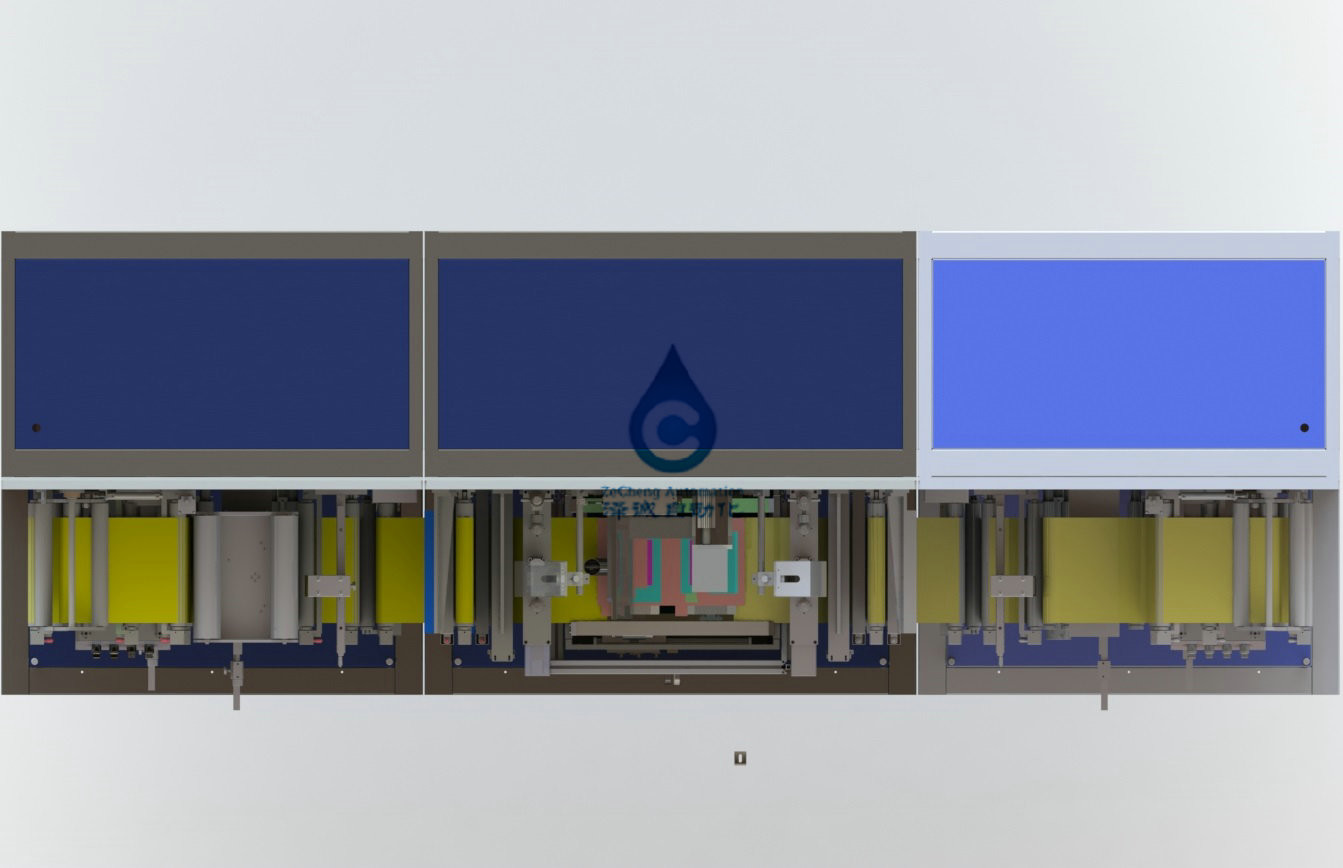

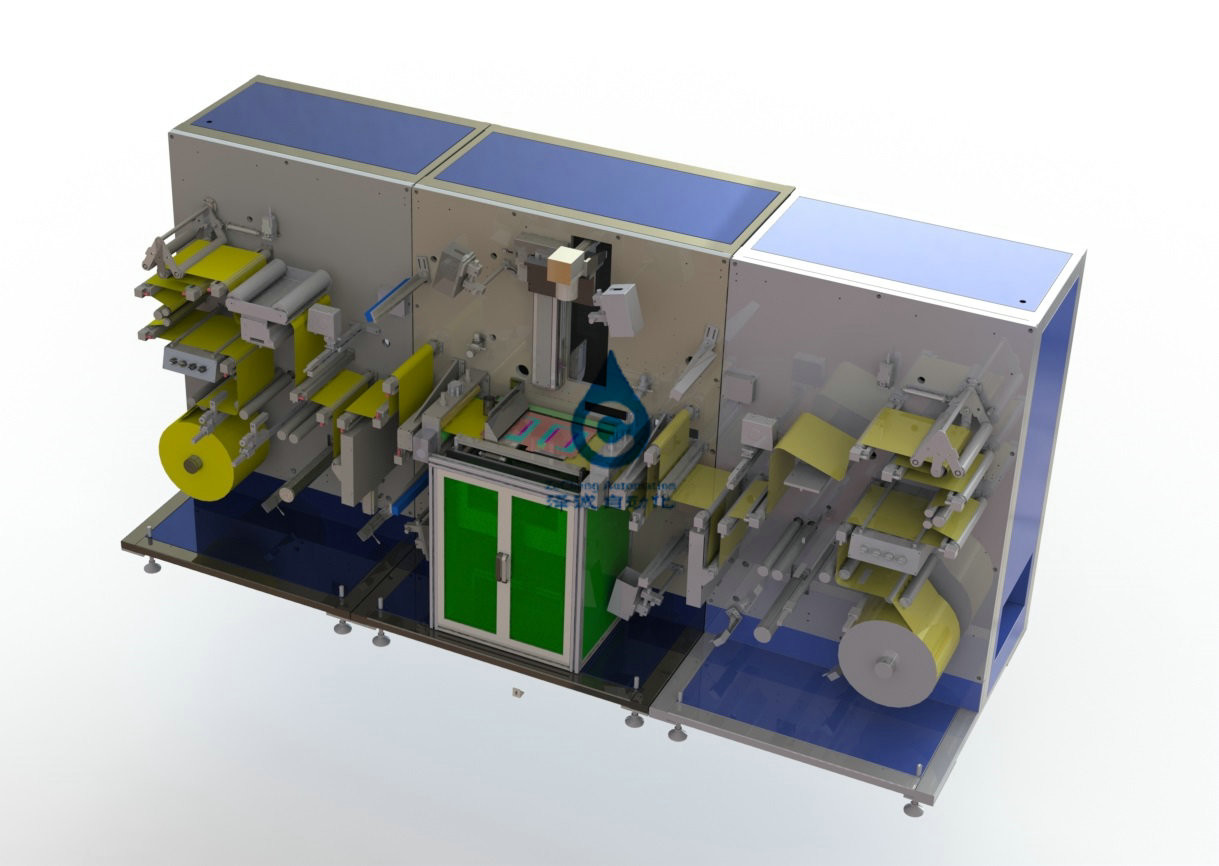

Battery Pole Piece Tab Laser Cutting Machine Laser Making Machine 3kw 220V

Product Description

Lithium Ion Battery Pole Piece Tab Laser Cutting Machine Laser Making Machine

1. Products and materials suitable for the equipment

1.1. The device completes the lamination or winding process of the pole slice laser pole cutting ear of lithium ion battery.Artificial roll pole rolling inflatable shaft installed to the device, the device automatically put volume, rectifying mechanism of rolling process to carry on the automatic adjustment, and control the tension of pole piece through the tension control system, servo mechanism will be transported to the laser cutting plate location, the laser will be extremely ear forming, cutting through the CCD detection plate surface quality and dimension, defect position to stick logo;

1.2. The specification of adaptive materials is as follows:

Material	Feed way	Material sheet length(mm)	Material width(mm)		Thickness of the material(μm)		The largest diameter (mm)	The inner diameter (mm)
Material	Feed way	Size range	Size range	tolerance	Size range	tolerance	The largest diameter (mm)	The inner diameter (mm)
Positive plate	coil	---	100-300	0.1	100~280;	3	400	76.2
Cathode Plate	coil	---	100-300	0.1	100~280	3	400	76.2

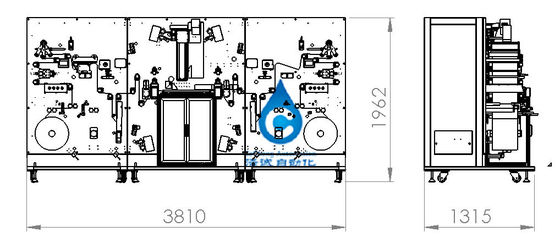

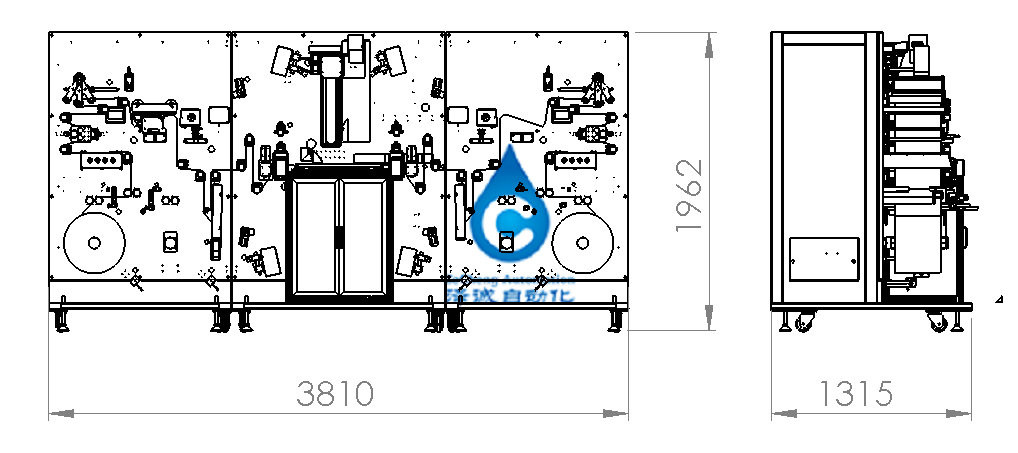

1.3 material requirements 1.3.1. The rewinding error of pole sheet is less than ±1mm 1.3.2 the snaking bending error of the pole sheet is less than 0.3mm/m 1.3.3 the thickness difference of the pole slices is less than 5um 2. External dimensions of the equipment: 2.1 overall size: W3800×H2000×D1400 (for reference) 2.2. Equipment weight: 2000Kg;

3, the technical parameters 3.1,Sheet coil material feeding, automatic correction;Rectifying error: + / - 0.1 mm 3.2,Automatic adjustment, automatic winding, winding error is + / - 1.0 mm; 3.3,Laser cutting sheet was extremely ears, can automatically adjust pole spacing.After cutting burr height is less than 0.005 mm, very ear cutting position error: less than + / - 0.2 mm, the size of the pole ear error: + / - 0. 2 mm 3.4,Cutting speed: 800-1200mm/s 3.5, automatic tension, tension control in 0.1-1.5Kg, adjustable;The relative error is 5%. 3.6,reserve the position of CCD inspection pole quality function and the position of automatic labeling; 3.7, brush powder, dust absorption function; 3.8, automatic waste collection and cutting function;

4.Requirements for working conditions of equipment 1,Power supply: single-phase AC220V 3.8kva, voltage fluctuation range: ± 10%; 2,Compressed air: 0.4-0.6mpa; 3,Ambient temperature: 20-35℃; 4,Relative humidity: 30-55% HR; 5,Environmental cleanliness shall not be lower than 100,000; 6,No corrosive gas, liquid, explosive gas on site.
