1kw Battery Production Equipment Linear Differential Pressure Leak Detector

1
MOQ
Negotiation, email communication
Price
1kw Battery Production Equipment Linear Differential Pressure Leak Detector
Features Gallery Product Description Request A Quote
Features
Specifications
Condition:: New
Year: 2022
Dimension(L*W*H):（kw): 1700*500*1800
Voltage: 380V
Effectiveness: 17PPM
Weight: 1kw
High Light:

leakage detection Battery Production Equipment

,

17PPM Battery Production Equipment

,

Battery differential pressure leak detector
Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Square aluminum shell lithium ion power battery linear differential pressure leak detector

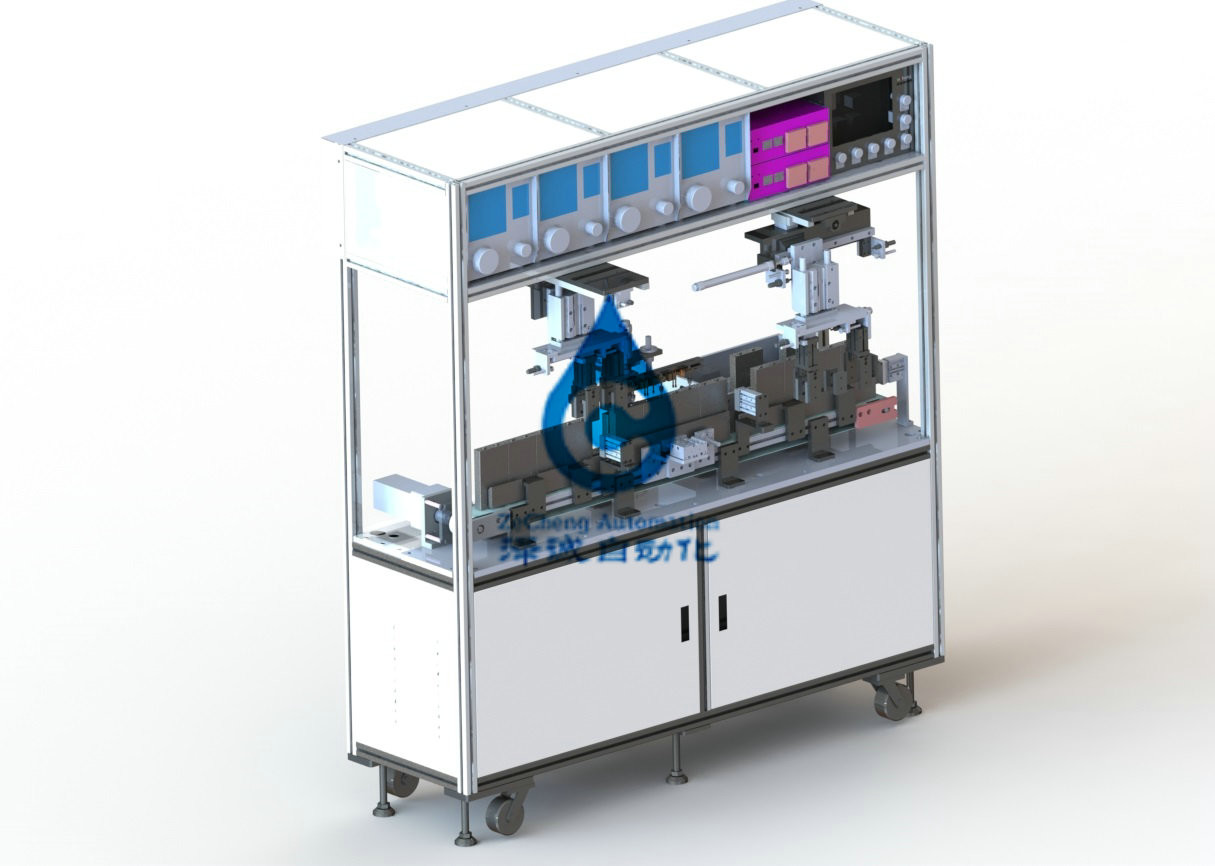

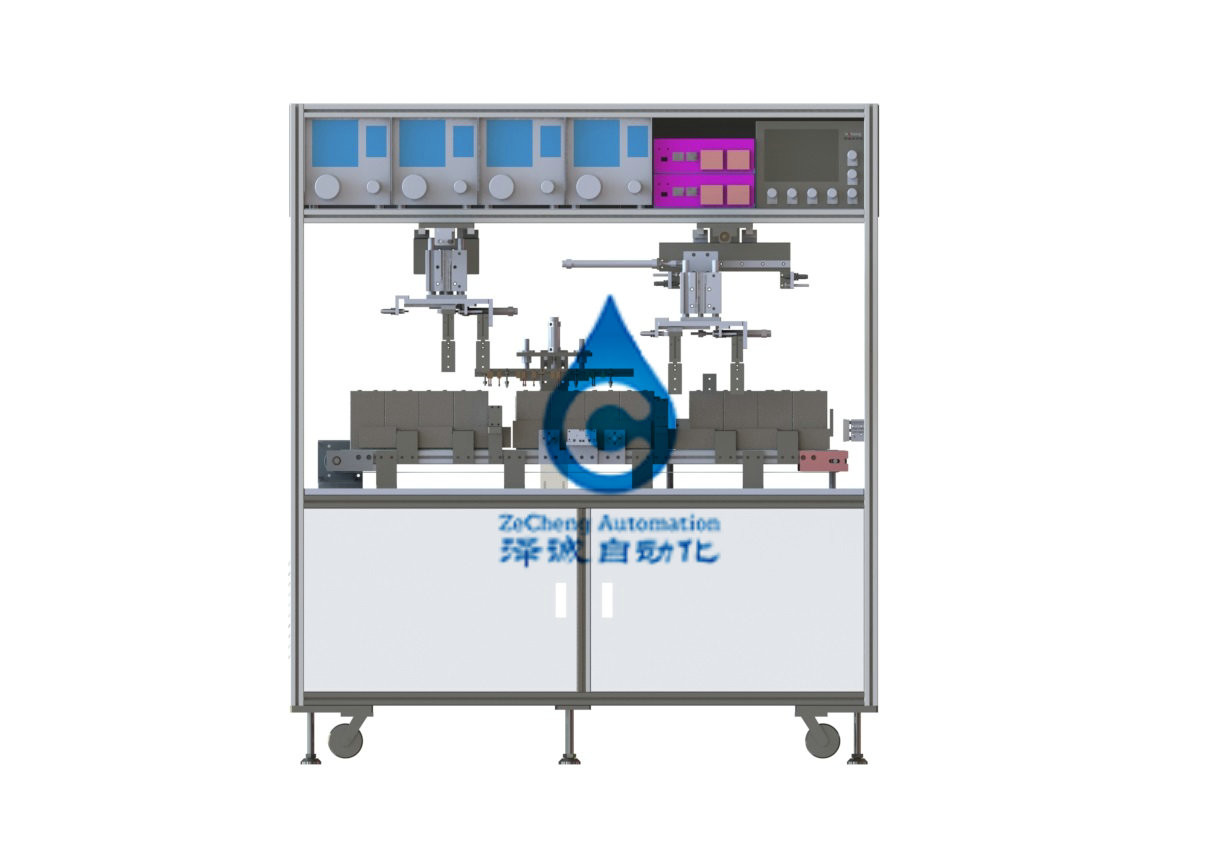

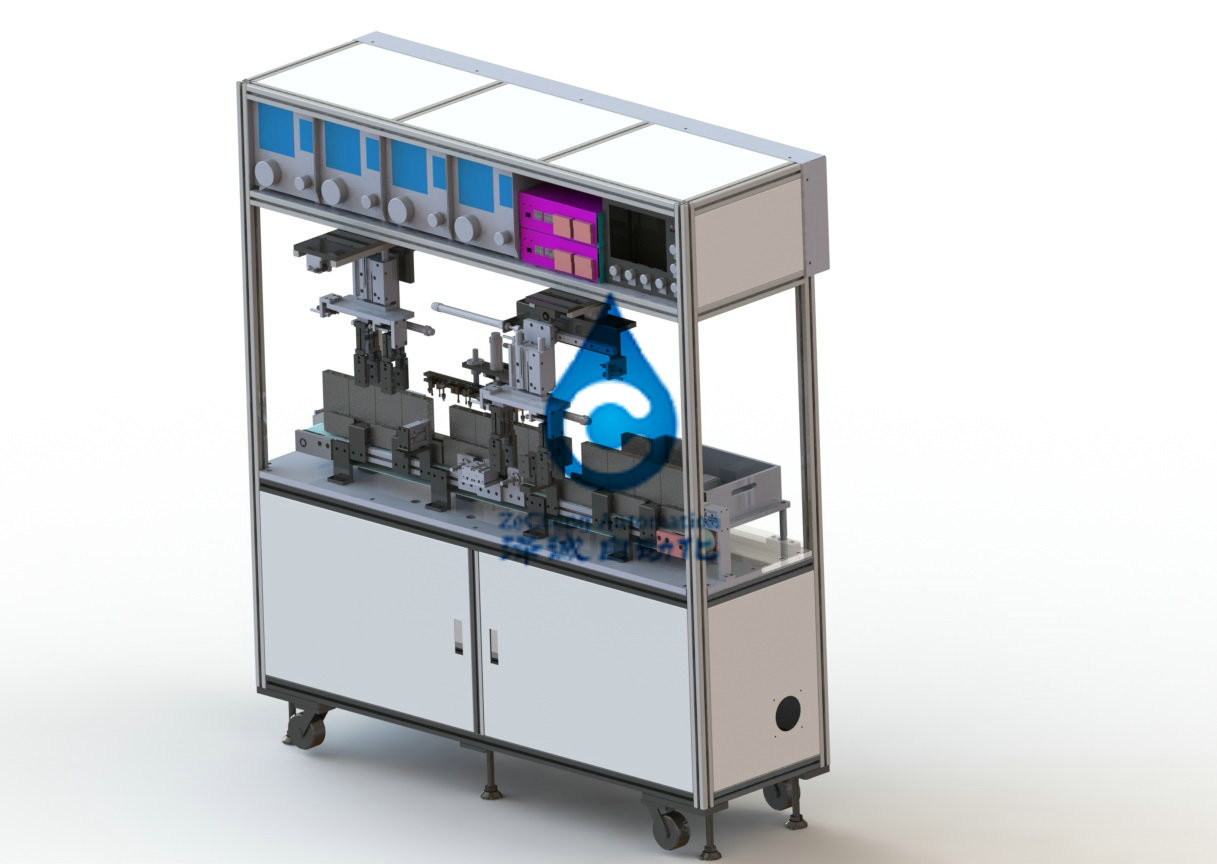

1kw Battery Production Equipment Linear Differential Pressure Leak Detector 0
1.Equipment name and technical parameters 1.1equipment name and appearance: leakage detection machine, the external color of the equipment is warm gray 1C(international standard). 1.2 test the product size

Thickness(mm)
Width(mm)
Hight(mm)
Production
20
100
142
Note: the device supports switching of battery models with thickness range of 20-25mm, width of 90-100mm and height of 130-170mm 1.3 technical parameters
ITEM


1
efficiency
≥17PPM(It depends on the vacuum time, 2 lines efficiency)
2
Power
0.9KW
3
Outline(L*W*H)
1700*500*1800
4
Leak test mode
Negative pressure differential
5
Leakage test pressure
-90-0KPa
6
Measure leakage test accuracy
10Pa
7
Short circuit test voltage range
DC200-600V±2%；
8
Short circuit test resistance
100K-10MΩ
9
Short circuit test accuracy
±5%

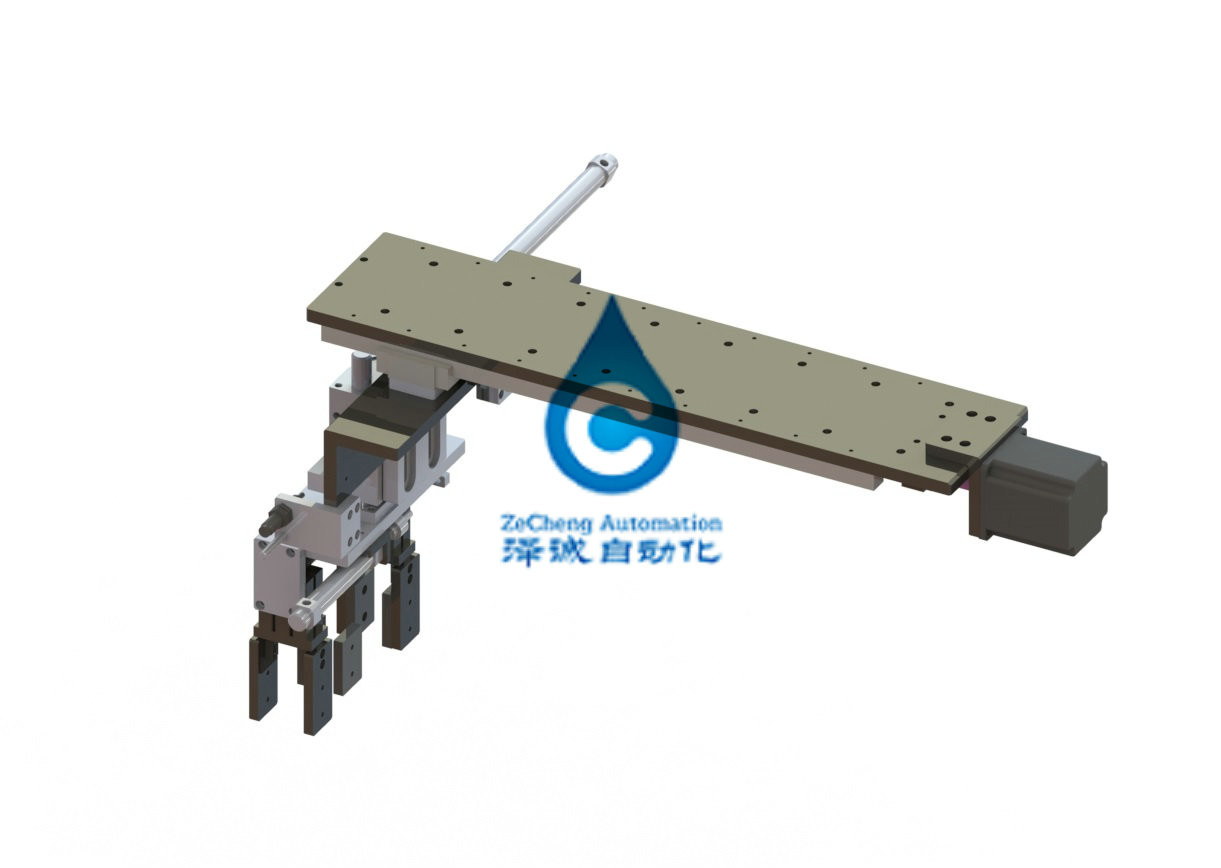

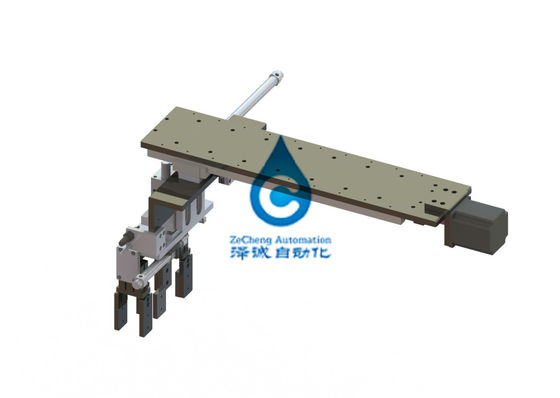

2,Performance characteristics 2.1 the machine is suitable for negative pressure leakage detection and short circuit test of square aluminum shell lithium ion power battery. 2.2 working principle of leak detection: the sealed chamber is used for negative pressure test under the condition of pressure difference between inside and outside.If the aluminum shell has poor welding and slight leakage, the detection accuracy can reach 1Pa through the precision pressure sensor. 2.3 short circuit test: short circuit tester test voltage for DC200-600 - v, adjustable resistance for the 100-10 m Ω, and with a test after completion of discharge of anode and the shell is function. 2.4 locate and clamp 4 batteries at the same time, and conduct leakage detection and short-circuit test at the same time. 2.5 the manipulator will automatically remove unqualified test (including leakage detection and short-circuit test of unqualified single battery) into the waste box.

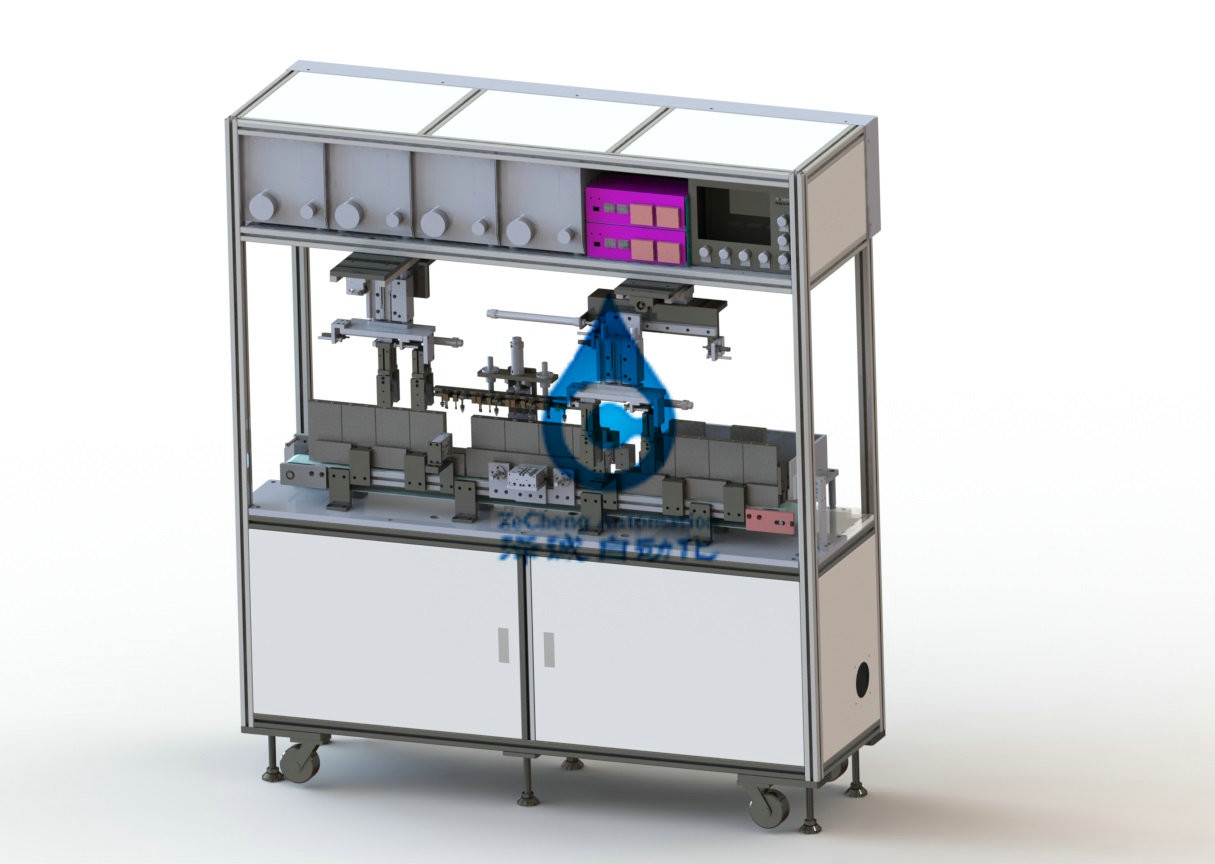

1kw Battery Production Equipment Linear Differential Pressure Leak Detector 1
3,product use environment
3.1 compressed air: 0.4 ~ 0.6mpa (4-6kgf/cm2), the flow rate of compressed air is 10L/min, and the utilization rate is 50%.
3.2 ambient temperature: 20 ~ 35℃.
3.3 relative humidity: 5 ~ 55% HR.
3.4 power supply: AC220V, single phase;Voltage fluctuation is less than ±10%;Power supply: 1KVA.
3.5 test pressure: 20-200kpa;
