18650 Lithium Ion Battery Pack Assembly Line With PET PVC Sleeve

Negotiation, email communication
18650 Lithium Ion Battery Pack Assembly Line With PET PVC Sleeve
Features Gallery Product Description Request A Quote
Speed: ≥100 PPM/min
Device Rotation Rate: 98%
Qualified: 99.5%
Weight: 2860KG
The Heating Temperature: 15-100
Name: Lithium Ion Battery Pack Assembly Line
High Light:

18650 Lithium Ion Battery Pack Assembly Line


32650 Lithium Ion Battery Pack Assembly Line


32650 Battery Pack Assembly Line

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Certification: ISO9001
Model Number: ZSC01A-00
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90-110 Working day
Product Description

PET PVC Sleeve 18650 Lithium Battery Production Line Variable Frequency Adjustable


18650 ,26650,32650 Lithium iron phosphate battery Sleeve Lithium Battery Production Line Outer Film Sticker Device


1. Introduction of equipment function and principle


Used for automatic PET/PVC sleeve of 18650 cylindrical battery, plus positive insulation pad and heat shrink forming. The whole machine adopts chain conveying structure.


The battery is adsorbed on the high temperature magnet base, and the chain is transported step by step to complete the heat shrinkable tube of the positioning sleeve, the insulation sheet of the positioning punch top, the secondary positioning and the heat


Wind shrinkage and other functions.


2. Equipment action flow


Punch top insulation sheet → bushing height → secondary positioning → heat shrinkage → discharge


3: technical parameters of the equipment


The basic parameters
Single machine efficiency P100PPM
Chain linear velocity Variable frequency adjustable 0-3m/Min
Product pass rate 99.50%
Device rotation rate 98%
Die life + / - 0.3 mm
Die life 800000 times or more
Thermal shrinkage temperature Room temperature - 200℃ adjustable, precision ±2℃
The noise 60 db or less
Plant configuration
The compressed air Acuity 0.6 MPa
The input voltage 380 v / 50 hz, 25 kw
Tap water Provide 1 inch water pipe interface to the equipment installation bit
Waste water discharge Provide 1 inch waste water discharge pipe interface to the equipment installation bit


4. Main components of the equipment



NO The name of the The content is introduced
1 Feeding mechanism 1 set, docking front equipment, automatic blanking.
2 Set the organization 1 set, including coil unwinding, guide bar, guide bar, guide servo motor, rotary ring cutter, hot shrinkable tube high bottom of the secondary accurate positioning; The battery is driven by the cylinder V block to realize the accurate positioning of the battery. To achieve the heat shrinkable tube length feeding, automatic ring cutting. More recharging roll using tape link, ensure continuity and easy to operate. The cutter is guided by a guide sleeve to ensure the accuracy. The rotary ring cutting of the blade is driven by a stepping motor.
3 Automatic insert insulation mechanism One set, including insulated film unwinding, stepper drawing and pneumatic die cutting, scrap rewinding. To realize the punching and cutting of the positive insulation rubber pad, the battery is expected to be extreme automatically. The waste has a winding mechanism winding.
4 Position correction mechanism 1 set, correct the position of the battery and the magnet fixture before thermal shrinkage, make the magnet stick in the bottom of the battery, ensure that the bottom package edge will not touch the magnet in the heat shrinkage, avoid the bad bottom roll edge.
5 Heat oven 1 set, hot air shrinkage furnace, hot air circulation distribution in the furnace, hot air temperature uniform, accurate control, the conveyor chain walking in the furnace battery rotation, to ensure the heat uniformity of the heat shrinkable tube, heat shrinkable tube shrink close to the battery surface and keep beautiful.
6 Transport mechanism 1 set, mainly composed of chain sprocket and step drive, completes the step feeding of the battery, and then loads the battery into the sleeve, rubber pad, heat shrinkage, discharge and other functional areas. Each chain plate is equipped with a magnetic platform adsorption battery.
7 rack 1 set, 50 square welding.
8 The man-machine interface 1 set, rotate the man-machine interface.

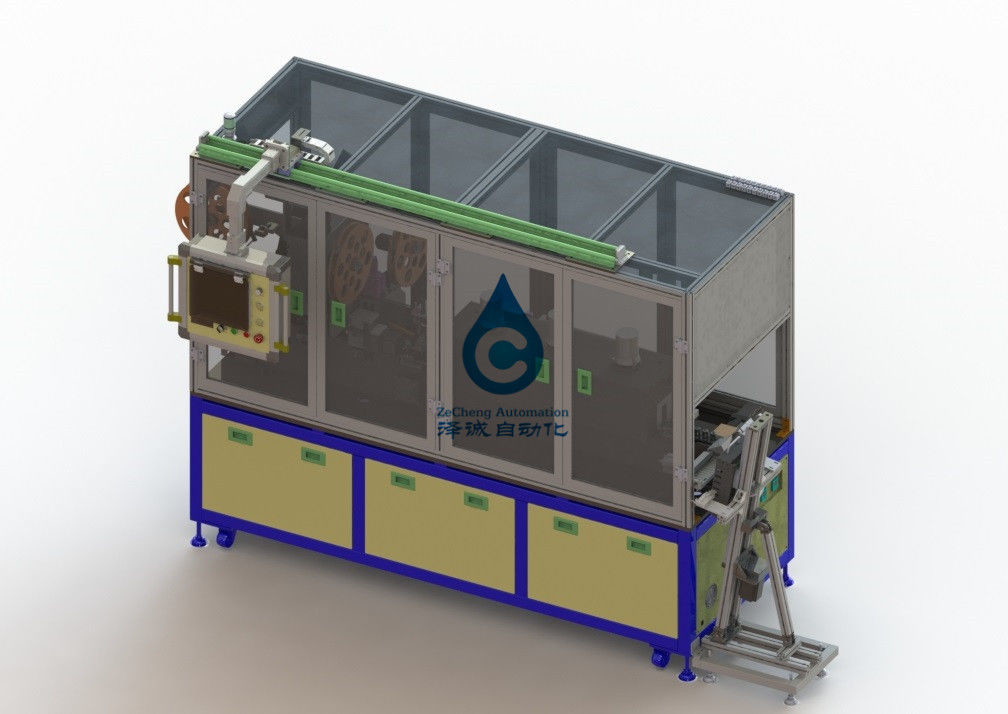

18650 Lithium Ion Battery Pack Assembly Line With PET PVC Sleeve 018650 Lithium Ion Battery Pack Assembly Line With PET PVC Sleeve 1
