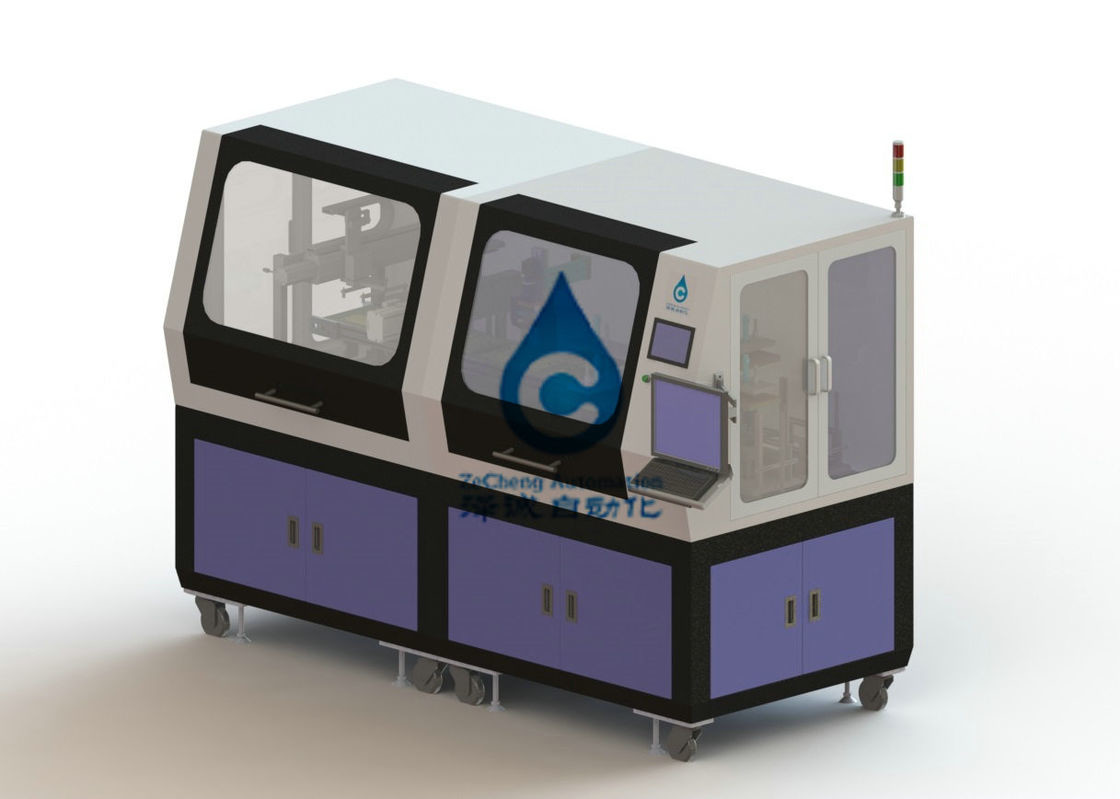

Li Ion Battery Manufacturing Equipment Battery Electrode CCD Quality Detector



1. Design requirements of the quality inspection machine for battery electrode:

1.1. This equipment is suitable for lithium batteries, lithium iron phosphate batteries, lithium iron batteries, nickel cadmium battery, nickel zinc battery, nickel iron batteries, super capacitors and other new energy battery pole piece's surface quality detection, using CCD imaging principle, the battery pole in the powder, scratch, crack, surface quality has a problem such as sampling sheet selected, qualified products collected material in the box.

Equipment technical parameters

Machine specifications

Item

ZCCF02A

vacuum

≤-88KPa

Total power(kw)

AC220V,50HZ 3KW

Normal operating power(kw)

AC220V,50HZ 2KW

The weight

1.5T

Device rotation rate

95%

Equipment pass rate

99.5%

4. Main equipment components

This equipment mainly USES CCD imaging principle to take photos on the surface of the pole, and compares it with the standard pole to judge whether it is qualified or not.When there is no pole, the material box can be automatically switched. The manipulator sucks up the pole sheet from the material box and turns it 90 degrees. CCD detects the bottom of the pole sheet and turns it 90 degrees.Qualified products continue to move on the conveyor belt to the above detection station, after the detection automatically sent to the discharging station, qualified products into the material box, unqualified products into the waste box.

4.3 CCD pole slice detection system: CCD imaging system is adopted to detect the battery pole slice. The detection contents are as follows.

NO.

Test content

Detection effect comparison

1

Demineralization on the surface of the pole sheet: the material powder on the surface of the pole sheet falls off



2

Edge dedusting: dedusting of the edges of the surface of the pole during blanking or transportation



3

Bubble point: defect of a material on the surface of a polar sheet caused by the bursting of a bubble after pulping



4

Crease: material on the surface of the pole appears to crease, crack.





5. Environmental requirements

Please provide the following energy medium

5.1 the power supply

5.1.1 voltage AC220V± 10%

5.1.2 frequency 50 hz + 1 hz

5.2. Temperature: 5-35℃Storage temperature: 0-40℃

5.3. Air source: 0.4-0.6mpa

5.4 humidity 30-80% but should not dew.

5.5 there is no corrosive gas, liquid or explosive gas on site

5.6 equipment color requirements: according to the color plate or color number provided by party a, the computer is white.



Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
