ZBAB04 Laboratory Battery Pole Cutting Machine Convenient Installation

1
MOQ
Negotiable
Price
ZBAB04 Laboratory Battery Pole Cutting Machine Convenient Installation
Features Gallery Product Description Request A Quote
Features
Specifications
Motor Power: 0.75kw 1400 RPM
Speed Ratio Of Reducer: 20:1
Hob Linear Speed: 20m/ Min
Hob Diameter: Ø84 Mm
Weight: About 200KG
Overall Size: Length: 850× Width: 620× Height: 1000 (mm)
High Light:

semi automatic laminating machine

,

automatic taping machine

Basic Infomation
Place of Origin: China
Brand Name: Zecheng
Model Number: ZBAB04
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 workdays
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

ZBAB04 Laboratory Battery Pole Cutting Machine Convenient Installation



1, equipment introduction

This equipment is used for the longitudinal cutting of positive and negative electrode slices after nickel, nickel, cadmium, lithium ion and other batteries coating, with neat section edges, no burrs, high dimensional precision and no dedusting. It is an important equipment in the processing of battery electrode slices.

2, Equipment featuresThis machine is composed of upper and lower hob, gear, pulley, reducer, motor and frame.The main parts are the upper and lower hob, which is composed of the interval with the rubber knife.Features:

A) simple structure, convenient installation and debugging.The machine is provided with the cutting pole size by the buyer. The hob can be customized according to the size.

B) simple operation, users only need to pay attention to safety can use;

C) high cutting precision and less dedusting.The cutting size is determined by the knife making without adjustment.

D) simple and clear maintenance, few wearing parts and reliable work.

3, technical parameters

motor power: 0.75kw 1400 RPM;

B) speed ratio of reducer: 20:1;

C) hob linear speed: 20m/ min;

D) hob diameter: 84 mm Ø;

E) rolling width: user's own;

F) maximum roll cutting width: 500mm;

G) weight: about 200KG;

H) overall size: length: 850× width: 620× height: 1000 (mm)

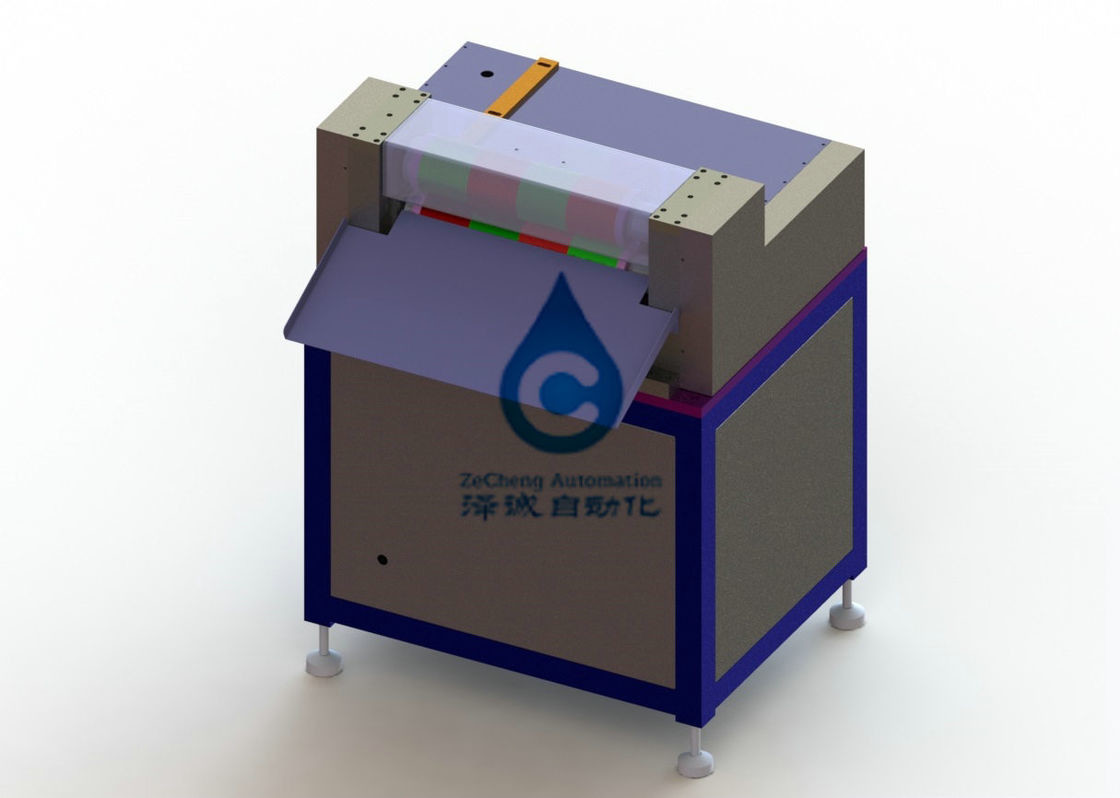

4. Equipment schematic drawing (for reference only)

ZBAB04 Laboratory Battery Pole Cutting Machine Convenient Installation 0ZBAB04 Laboratory Battery Pole Cutting Machine Convenient Installation 1
