Simple Automatic Blue Film Coating Machine With Panasonic Servo Motor

1
MOQ
Negotiation, email communication
Price
Simple Automatic Blue Film Coating Machine With Panasonic Servo Motor
Features Gallery Product Description Request A Quote
Features
Specifications
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1800KG
Warranty: 1 Year
Voltage: AC220±10%
Origin Sensor: Panasonic
Coupling: COUP - LINK
High Light:

lithium battery production line

,

lithium ion battery making machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-7
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

Simple Automatic Blue Film Coating Machine With Panasonic Servo Motor



1. Main function of this system: paste the outer envelope of the qualified battery



2. This system includes: 1 set of battery feeding system, 1 set of tape feeding system, 1 set of adhesive coating system, 1 set of blanking turnover mechanism.



3. Battery charging system:



This system includes: 1 set of electric cell turnover push mechanism, 1 belt conveyor, 1 set of battery drawing mechanism, 1 set of battery pushing mechanism



3.1 turning and pushing mechanism of electric cell: it mainly includes 1 turning cylinder, 1 turning fixture, 1 pressing cylinder and 1 pushing cylinder.



3.2 conveyor belt: it mainly includes 1 stepper motor, 1 belt and 1 sensor in place;



3.3 battery drawing mechanism: it mainly includes 1 stepper motor, 1 servo module and 1 drawing plate.



3.4 battery pusher mechanism: it mainly includes 1 stepping motor, 1 servo module, 1 pusher plate and 1 positioning plate.





4. Technical requirements



4.1 the material of the flip fixture shall be POM, and it is not allowed to scratch the battery surface;



4.2 the quality of the positioning plate shall be POM, and it is not allowed to scratch or wear the battery surface;



4.3 the quality of push-plate and pulled-plate shall be POM, and it is not allowed to scratch or wear the battery surface;

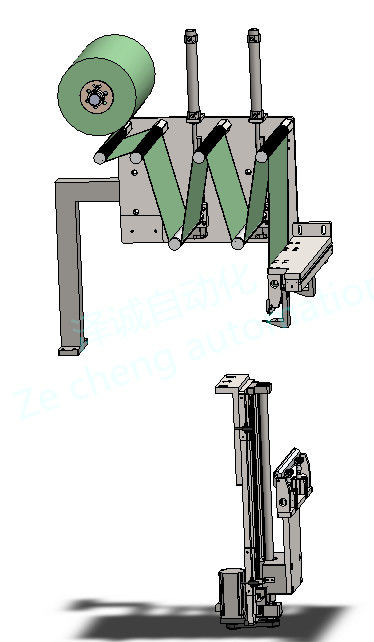

5. Tape feeding system:



The system includes 1 set of unwinding mechanism, 2 sets of tensioning mechanism, 4 sets of over-rolling mechanism, 1 set of underclamping and pulling mechanism, and 1 set of overclamping and cutting mechanism.



5.1 tensioning mechanism: it mainly includes 2 cylinders, 2 linear slide rails and 1 tension roller



5.2 upper clamping cutting mechanism: 2 upper clamping jaw cylinders, 1 set of clamping block, 1 cutter cylinder, 1 cutter;



5.3 lower clamping and pulling mechanism: it mainly includes 2 lower clamping jaw cylinders, 1 set of clamping blocks, 1 servo motor, 1 lead screw, 2 slide rails and 1 synchronous belt



5.4 technical requirements:



5.1 the over-roll surface shall be treated with sawtooth, and the rubber belt shall not adhere to the roll



5.2 adhesive is not allowed on the surface of the clamping block



5.3 SKD11 is required for cutter material, and the service life is 300,000 > times



5.4 pull-down adhesive precision ±0.1mm



5.5 the battery pressing and positioning block is made of polyurethane, so it is not allowed to scratch the battery;



5.6 the material of the guide bar below the battery is POM, and it is not allowed to scratch the battery;



5.7 the precision deviation of film sticking is ≤0.5mm. There are no wrinkles and no obvious bubbles on the film sticking battery surface. The diameter of a single bubble is < 1mm and that of a single bubble is < 5.



5.8 the surface is completely coated, and the aluminum shell cannot be exposed;



5.9 the tape is 3-5mm higher than the weld, and the part higher than the weld is required to be pasted on the upper cover, and no leakage of the weld is allowed



5.10 yield: ≥99%;





6. Configuration list



The serial number The name of the The number of brand
1 Tape limit 2 Non-standard processing
2 cylinder 2 SMC
3 Linear guide 2 HIWIN
4 A roll 2 Non-standard processing
5 cylinder 2 SMC
6 Servo motor 1 panasonic
7 screw 1 HIWIN
8 Linear guide 2 HIWIN
9 Origin sensor 1 panasonic
10 Limit sensor 2 panasonic
11 coupling 1 COUP - LINK
12 Synchronous belt 1 Non-standard processing
13 The clamping cylinder 2 SMC
14 Cut off the cylinder 1 SMC
15 Laminated block 2 Non-standard processing
16 cutter 1 Non-standard processing
