Car Battery Production Line Laser Pole Cutting Machine

Negotiation, email communication
Car Battery Production Line Laser Pole Cutting Machine
Features Gallery Product Description Request A Quote
Stable: 97%
Speed: ≥12PPM/min
Qualified: 99.50%
Weight: 1800KG
Warranty: 1 Year
Voltage: AC220±10%
High Light:

automobile battery production line


car batteries production line


Car Battery Laser Pole Cutting Machine

Basic Infomation
Place of Origin: China
Brand Name: ZeCheng
Model Number: ZC-AA-28
Payment & Shipping Terms
Packaging Details: Wooden box
Delivery Time: 90 Working day
Payment Terms: L/C, T/T
Supply Ability: 10 sets per months
Product Description

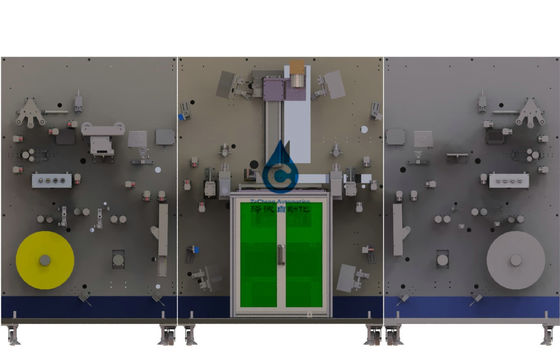

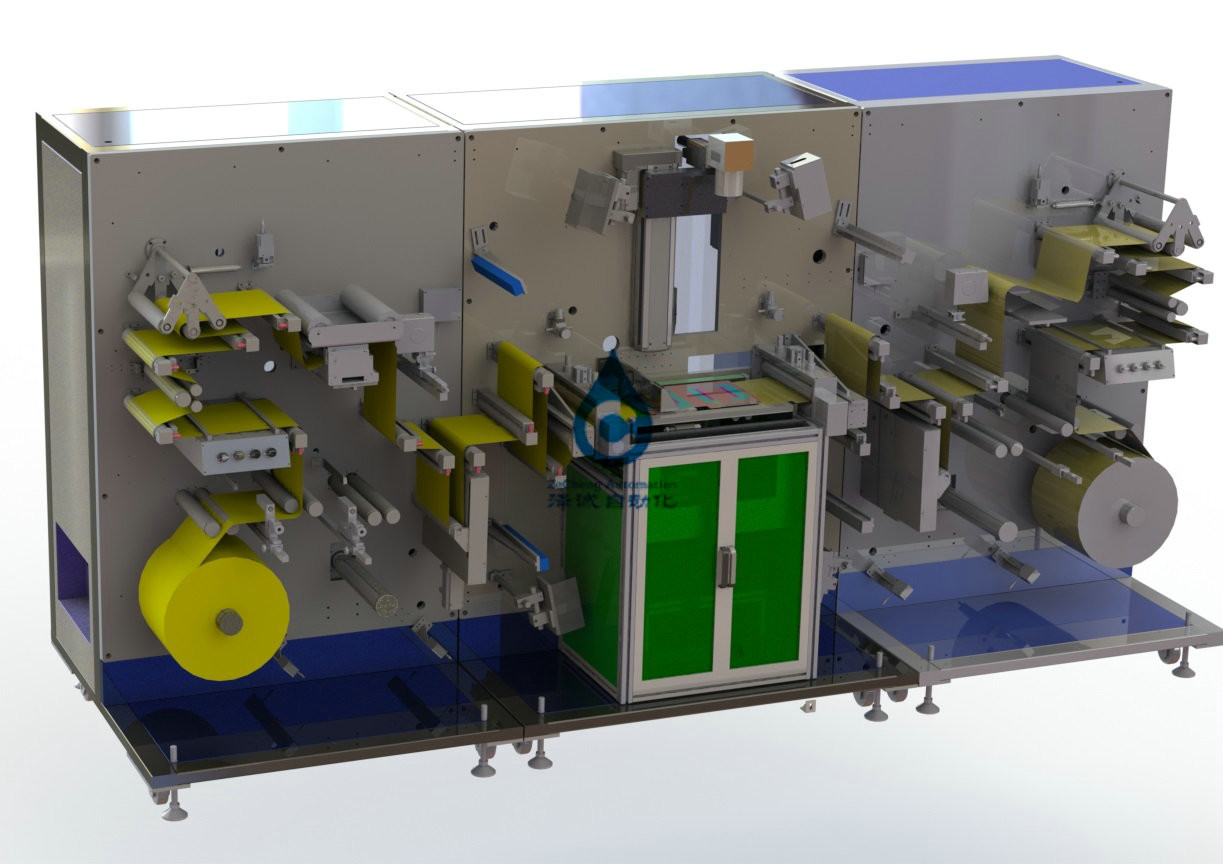

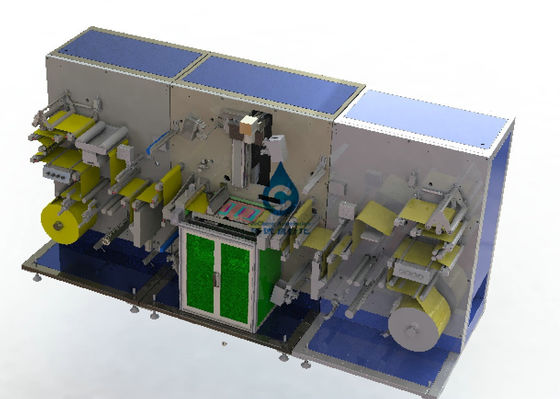

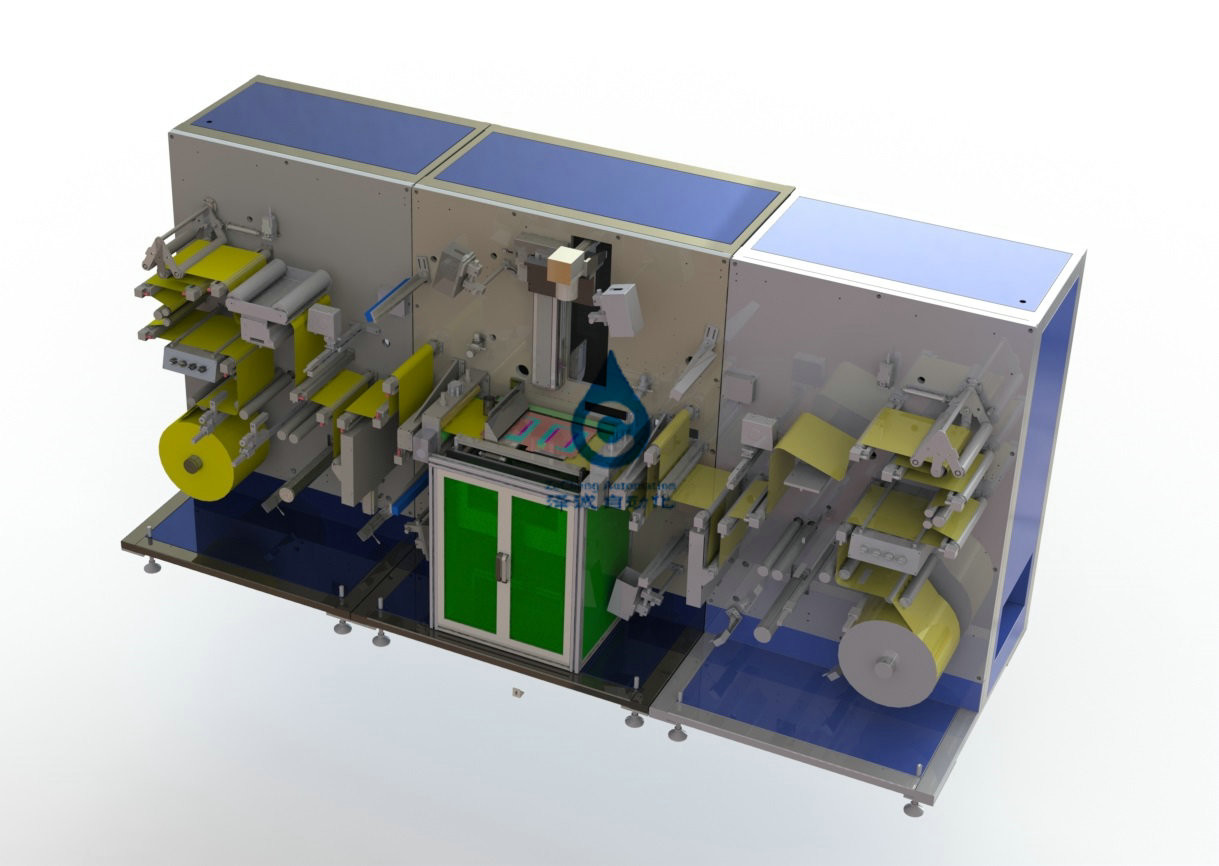

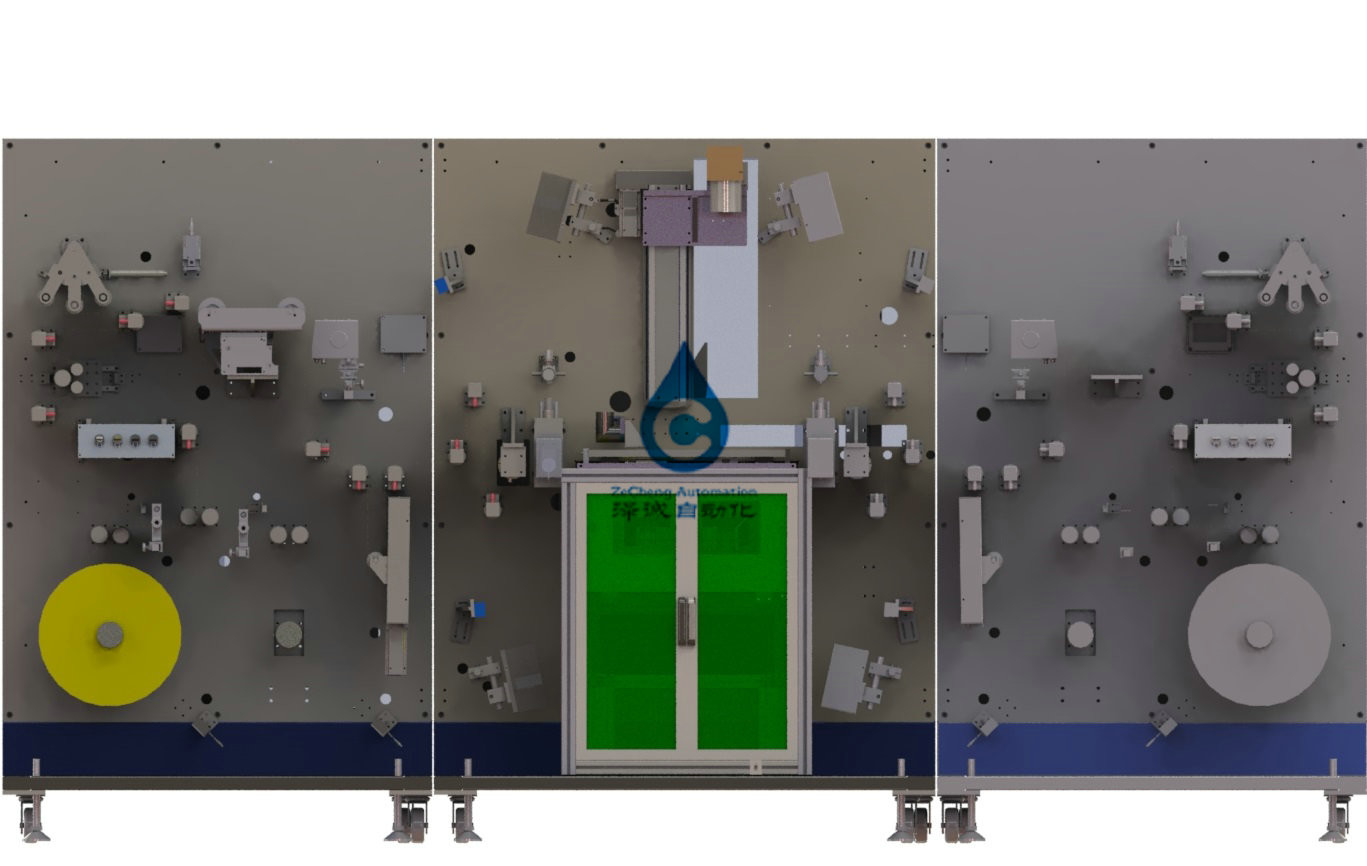

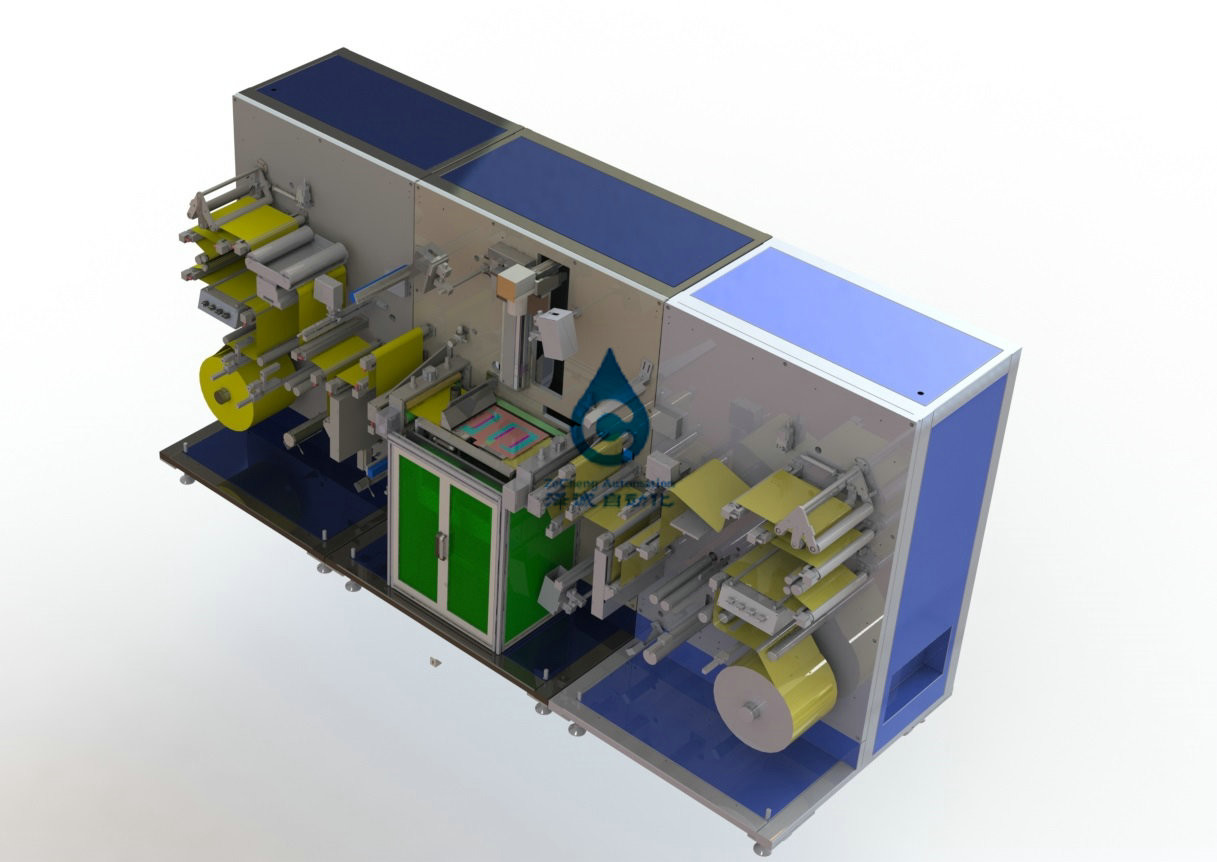

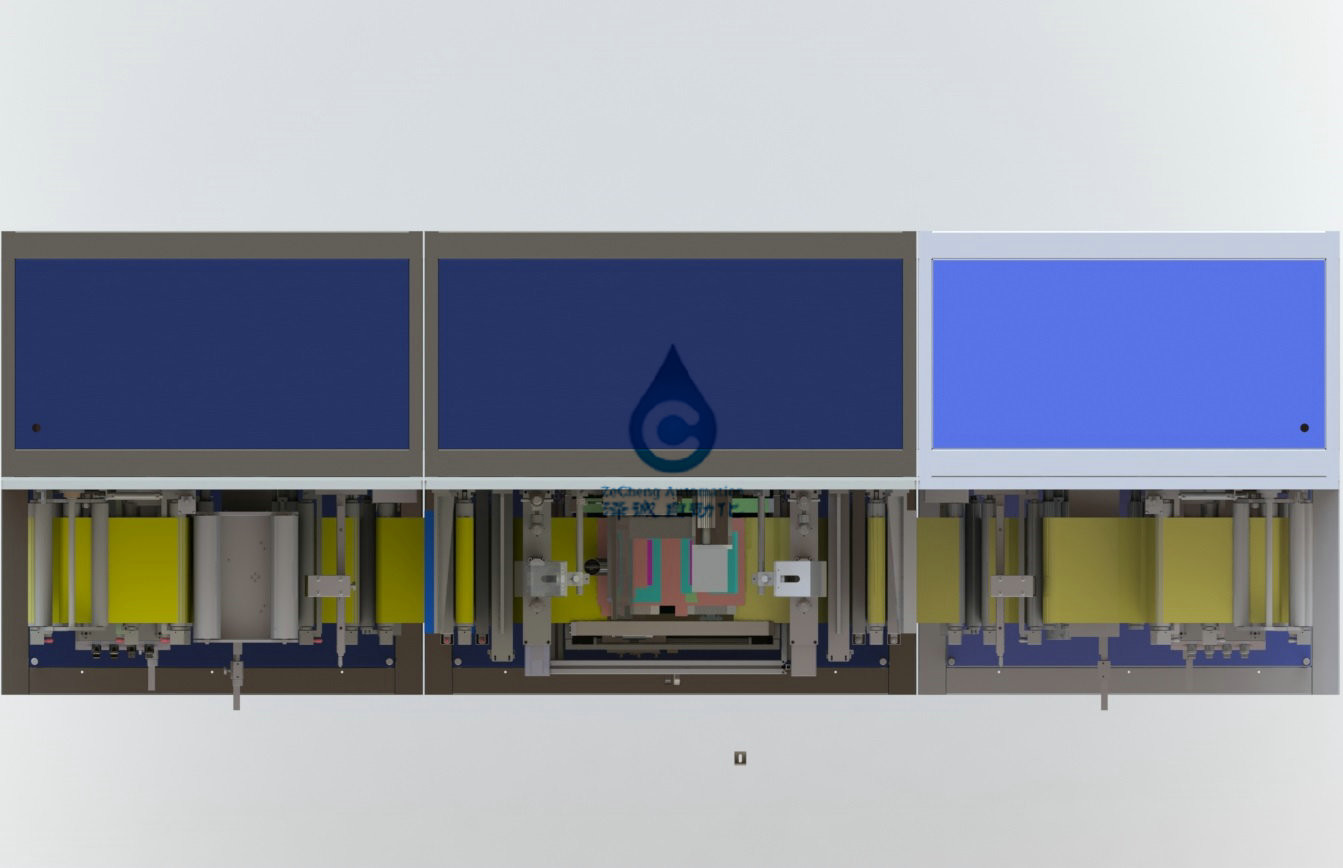

Car Battery Production Line Laser pole cutting machine

1.1. The device completes the lamination or winding process of the pole slice laser pole cutting ear of lithium ion battery.Artificial roll pole rolling inflatable shaft installed to the device, the device automatically put volume, rectifying mechanism of rolling process to carry on the automatic adjustment, and control the tension of pole piece through the tension control system, servo mechanism will be transported to the laser cutting plate location, the laser will be extremely ear forming, cutting through the CCD detection plate surface quality and dimension, defect position to stick logo;

1.2. The specification of adaptive materials is as follows:




Material sheet length(mm) Material width(mm) Thickness of the material(μm)

The largest diameter


The inner diameter


Size range Size range tolerance Size range tolerance
Positive plate coil --- 100-300 0.1 100~280; 3 ­­400 76.2
Cathode Plate coil --- 100-300 0.1 100~280 3 400 76.2
1.3 material requirements

1.3.1. The rewinding error of pole sheet is less than ±1mm

1.3.2 the snaking bending error of the pole sheet is less than 0.3mm/m

1.3.3 the thickness difference of the pole slices is less than 5um

2. External dimensions of the equipment:

2.1 overall size: W3800×H2000×D1400 (for reference)

2.2. Equipment weight: 2000Kg;

3, the technical parameters

3.1,Sheet coil material feeding, automatic correction;Rectifying error: + / - 0.1 mm

3.2,Automatic adjustment, automatic winding, winding error is + / - 1.0 mm;

3.3,Laser cutting sheet was extremely ears, can automatically adjust pole spacing.After cutting burr height is less than 0.005 mm, very ear cutting position error: less than + / - 0.2 mm, the size of the pole ear error: + / - 0. 2 mm

3.4,Cutting speed: 800-1200mm/s

3.5, automatic tension, tension control in 0.1-1.5Kg, adjustable;The relative error is 5%.

3.6,reserve the position of CCD inspection pole quality function and the position of automatic labeling;

3.7, brush powder, dust absorption function;

3.8, automatic waste collection and cutting function;

5. Requirements for working conditions of equipment

1,Power supply: single-phase AC220V 3.8kva, voltage fluctuation range: ± 10%;

2,Compressed air: 0.4-0.6mpa;

3,Ambient temperature: 20-35℃;

4,Relative humidity: 30-55% HR;

5,Environmental cleanliness shall not be lower than 100,000;

6,No corrosive gas, liquid, explosive gas on site.

Cooperation commitment

1. New equipment promise

Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.

2. Confidentiality commitment

Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.

3. After-sales service commitment

(1)Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;

(2)After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh

(3)During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
