Vacuum Sealer Battery Production Equipment For Bluetooth Digital Polymer Lithium Battery
1,Equipment profile:
1,1 introduction to device functions and principles:
Main functions of the equipment: perforation, vacuum degassing, secondary pre-sealing.
The vacuum sealing machine is suitable for vacuum degassing and secondary heat sealing processes after activation of bluetooth polymer flexible packaging lithium battery, digital polymer flexible packaging lithium battery and cylindrical polymer flexible packaging lithium battery.
1.2 equipment operation flow:This device is a vacuum suction sealing machine, which is mainly used to extract the gas left in the airbag belt after the battery electrolysis in the vacuum state, puncture the airbag belt, extract the gas, and then use the upper and lower head of the chamber part to seal the side between the airbag belt and the battery, so as to achieve the working purpose.

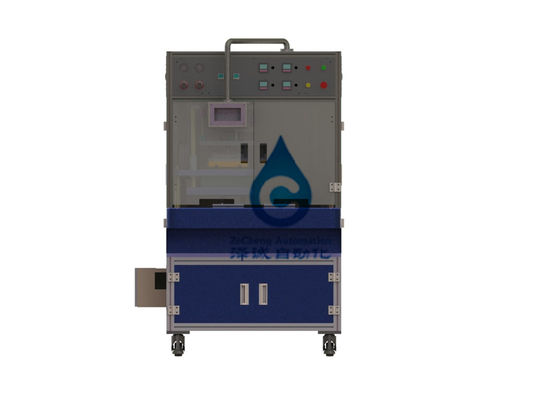

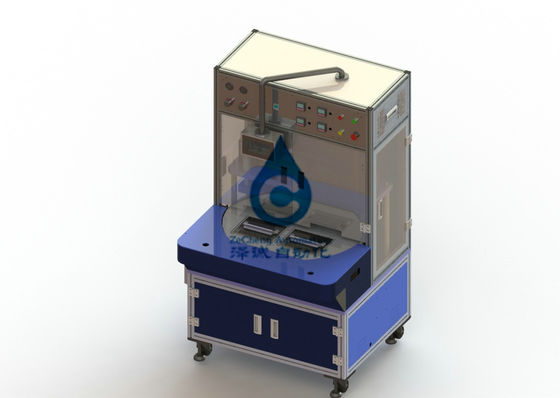

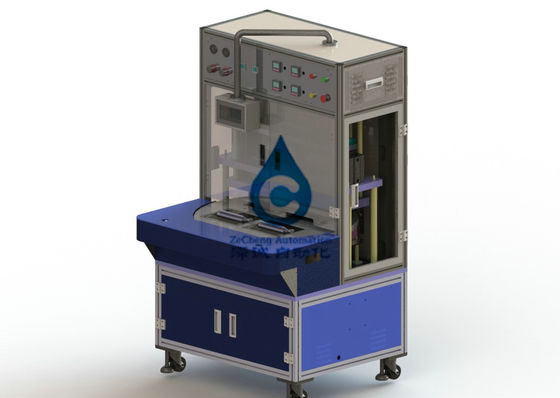

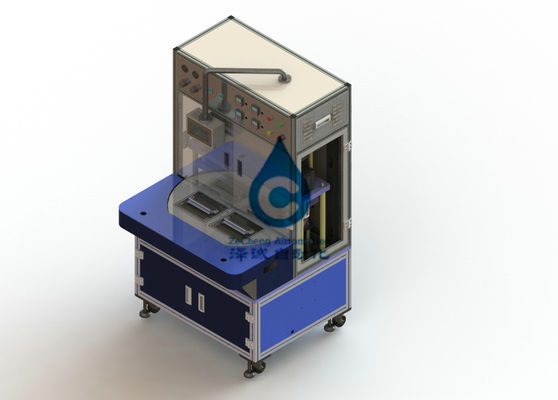

1.3 overall structure (with drawings)
2. Incoming materials and product specifications suitable for the equipment
2.1 size and specification of incoming materials
2.1.1 applicable product specifications:
|
Model |
W(mm) |
L(mm) |
H |
|
ZEAA08A |
20-50 |
30-70 |
2-8 |
Acceptance test product: square polymer battery CP243238
2.1.2 The specific requirements
|
NO. |
Item |
parameter |
|
1 |
Edge width |
3-10mm |
|
2 |
Encapsulation time range |
2-3S |
|
3 |
Sealing side thickness |
0.19-0.3mm(Can be set) |
3. Technical parameters of the equipment
3.1 qualification rate of equipment products: ≥97%(only bad products caused by the machine)
3.2 equipment productivity/speed: 15PPM depends on heat sealing time
3.3 equipment failure rate ≤5% (failure caused by equipment only)
3.4 equipment electrical: voltage 220V±10%, current AC/10A, single-phase power 2000W
3.5 compressed air: pressure/flow 0.4-0.6Mp/ 0.3l /min
3.6 vacuum: pressure and flow 0.4-0.6Mp/0.3L/min
3.7 weight: the ratio of total weight to load-bearing area of 400Kg ≤500kg/M2
4: equipment general configuration and standard
4.1 the appearance color of the equipment shall be subject to the color plate provided by party a.
4.2 measuring 10MM from the outer wall of the machine, the noise of the equipment ≤ 80db.
4.3 the equipment complies with the safety standards of the relevant mechanical and electrical equipment of the state and all safety standards and requirements of the buyer company.
4.4 Chinese operation manual and equipment maintenance manual are attached.
4.5 electrical control diagram, pneumatic control diagram, specification of purchased parts, source code and other materials of the machine shall be delivered randomly.
