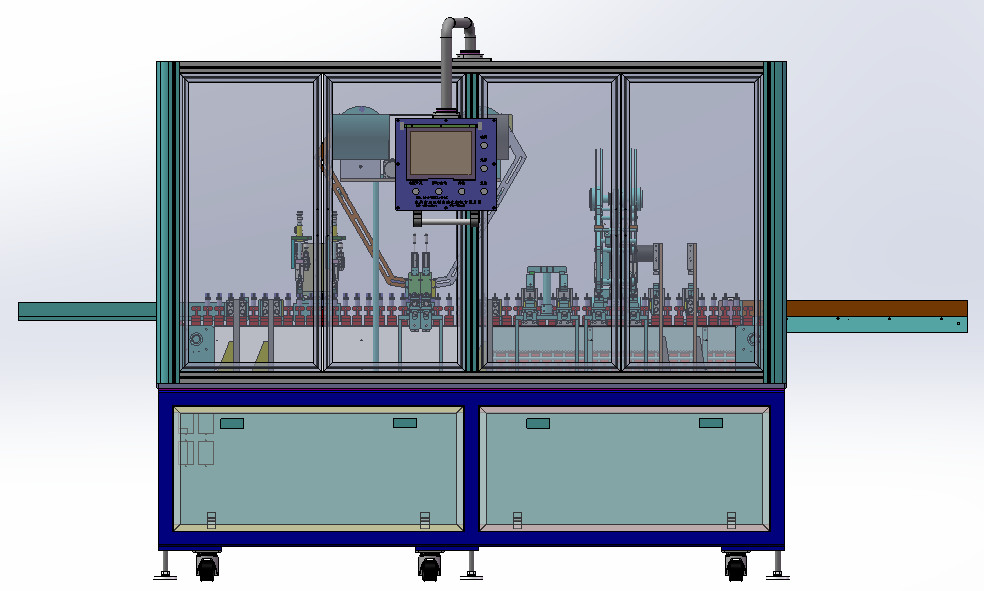

Lithium Ion Battery Making Machine 18650 Welding Machine For Top Cover
1. Equipment introduction
1. Introduction of equipment functions and principles:

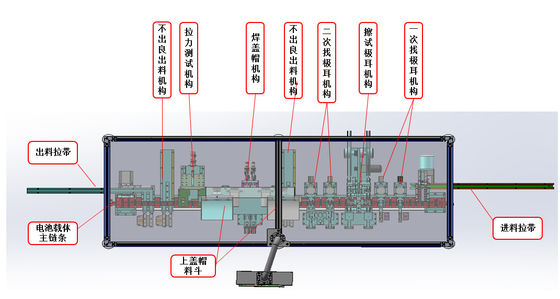

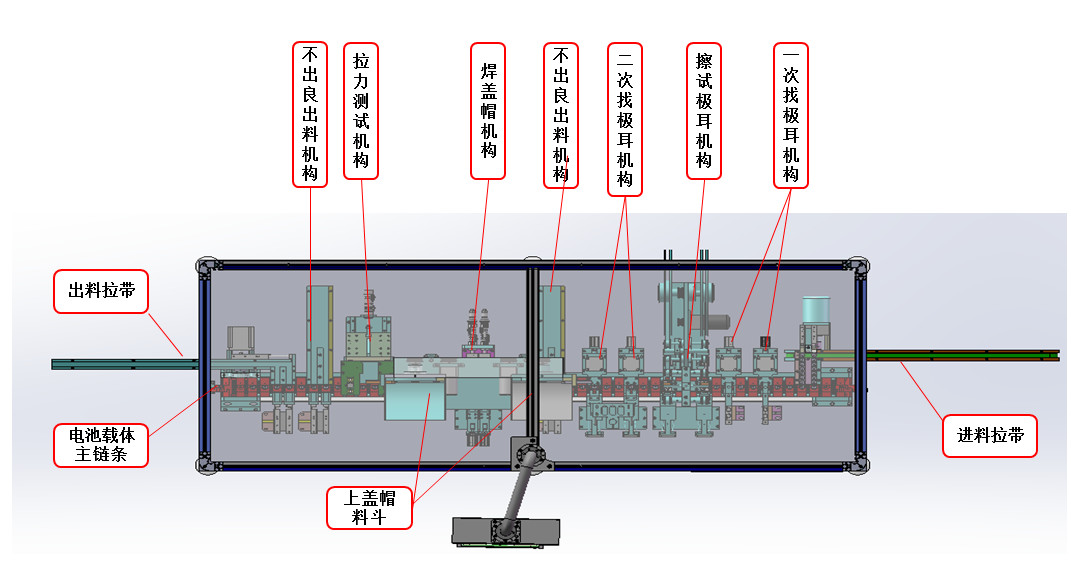

This equipment is suitable for the welding process of cylindrical battery after rolling groove production. The device is seamlessly connected with a groove rolling machine or an assembly all-in-one machine; Automatic completion of welding cap process. The cap is automatically arranged and loaded, and the front is connected with the discharge port of the groove rolling machine (assembled one integrated triplet machine) → the equipment is automatically loaded → identification of alignment by the direction of a pole ear → pole ear rubbing and straightening → two pole ears correction → welding cap → tension test → discharging and manual material collection (can be on the receiving machine). The front can be docked with orvance assembly triad. Adopt PLC control system; Touch screen man-machine interface; Human operation.
The equipment is well made, efficient, reliable, easy to operate and easy to maintain.
Single machine size: 2250mm(length)*900mm(width)*1900 mm(height); Do not contain upper and lower material pull belt
2. Basic parameters:
| NO. | The parameter name | Technical parameters | unit | For note |
| 1 | Cap loading method | Random strain | a | |
| 2 | Equipment efficiency | ≧ 50 | A/minute | |
| 3 | Yield of finished products | 99.80% | ||
| 4 | Device rotation rate | 95% | (not remembered for equipment or other reasons) | |
| 5 | Air supply | 0.5 ~ 0.8 | Mpa | |
| 6 | Voltage power supply | AC220V / 50 hz | Voltage fluctuation is less than ±10% | |
| 7 | Rated power | 1.5 | KW | Does not include laser machine electricity |
| 8 | External size of main engine | Length * width * height | MM | 2250 * 900 * 1900 |
Cooperation commitment
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
