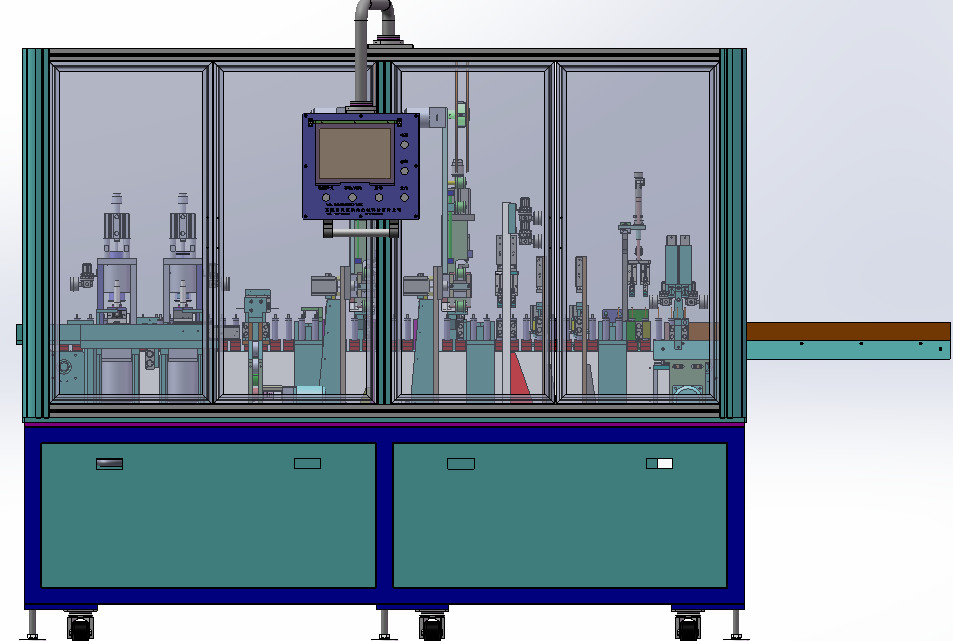

Low Noise Li Ion Battery Manufacturing Equipment 18650 Three In One Equipment
1: introduction of device function and principle

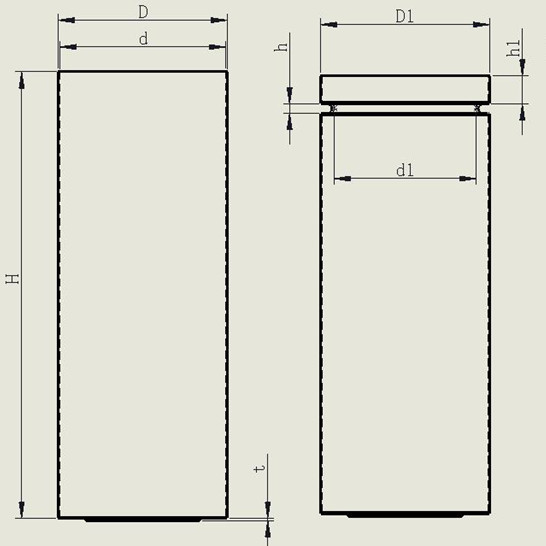

Used for spot bottom welding, pin shifting, tension testing, punching top insulation sheet and rolling groove of cylindrical 18650 battery.
2: device action flow
Belt feeder (a 2) - > artificial plug welding needle batteries shunt or two into the material at the bottom of the mouth - batteries into the tape pull - automatic spot welding to stir welding needle, pull test - NG out - second rotational positioning pole ear to automatically into the insulation slices, detect the presence of insulating piece - NG out - the wheel to roll into the slot location, battery roll groove (a) and discharging.
3: technical parameters of the equipment
| The basic parameters | |
| Single machine efficiency | ≥50PPM (one out two) |
| Welding materials needle | Aluminum oxide copper |
| Product pass rate | 99% |
| Device rotation rate | 95% |

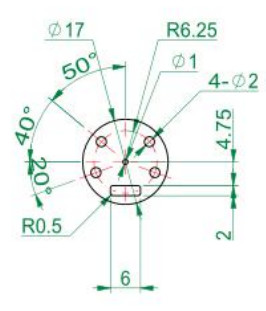

| Precision stampings | + / - 0.2 MM |
| Blunt knife life | 500000 times or more |
| Hob life | 800000 times or more |
| Up and down shaft life | 800000 times or more |
| The noise | 60 db or less |
| Plant configuration | |
| The compressed air | Acuity 0.6 MPa |
| The input voltage | 380V/50HZ,3KW (excluding welding machine) |
4.Cooperation commitment
1. New equipment promise
Our company guarantees that the goods provided to customers are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1)Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2)After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3)During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
