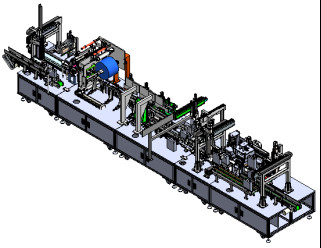

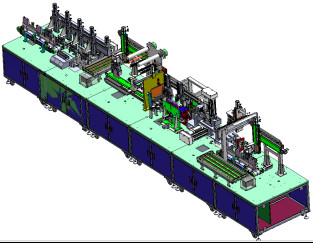

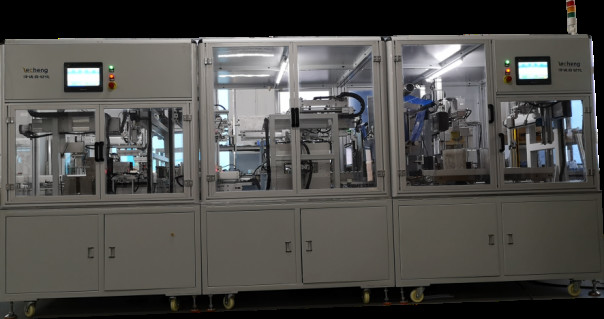

Auto Lithium Ion Battery Assembly Line Aluminum Shell Adhesive Tape Machine
1. Device functions
It is mainly used for the enclosure film of square aluminum shell power battery, including automatic battery feeding, code scanning, enclosure film, insulation film, blanking, etc. This envelopment line is automatic envelopment line, there is unqualified battery discharge channel, and the relevant detection data is automatically recorded.
2. Equipment process parameters requirements
project | specifications |
Dimensional measurement accuracy | ±0.01mm, with a resolution of 0.001mm |
Single machine capacity | 6 PPM or higher |
An optimal rate | 99.8% or higher |
Scrap rate | 0.01% or less |
Device rotation rate | ≥99% (failure caused by equipment only) |
Mean fail-free running time MTBF | 4 hours or more |
The machine noise | ≤75dB (one meter from the outer wall of the equipment) |
The engine bearing | 1.0 T / ㎡ or less |
|
|
3. Electrical parameters of the equipment
3.1 basic parameter requirements
Line body name
| The compressed air | vacuum | The environment temperature | Environmental humidity | The ground bearing | Equipment power |
Double-station envelope testing machine | After14 m/h / 0.4 0.7 MPa | After 15 m/h - 80 KP ~ - 90 KP | 20 ~ 35 ℃ | 5 ~ 55% HR | > 800 kg / ㎡ | AC380V, three-phase; Voltage fluctuation is less than ±10%; Power supply: 18KVA |
3.2 air route requirements (red represents the main pipeline, green represents the air route outlet, and yellow represents the standby air outlet), the pipeline is directly above the logistics line.
Line body name | Number of air outlets for compressed air (green) | Power outlet (yellow) | Vacuum outlet (blue) | Specification (mm) |
Double-station envelope testing machine | 6 | 6 | 3 | Φ12 |
