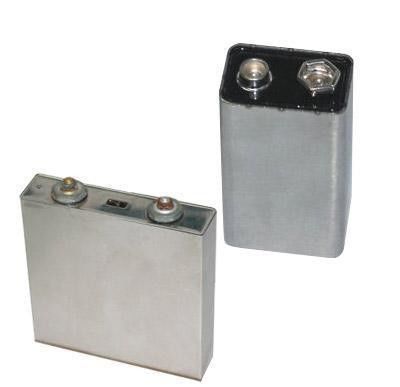

Aluminum Laser Welding System For Square Or Round Aluminum Battery Cover Plate
1, Equipment overview is shown in the following table
| Device name | Square cap welding machine |
| The power supply requirements |
Three-phase 380V±5%, 50Hz Rated power: ≤12KW Rated current: ≤60A |
| Environmental requirements | Temperature 5-40℃/ humidity 10-90% |
| Gas supply demand |
Air < 0.2m cubed /h, pressure ≥0.6Mpa Nitrogen < 0.2m cubed /h, pressure ≥0.4Mpa |
| Working time | 24H (continuous operation) |
| Failure rate | ≤2%(only caused by equipment) |
| Percent of pass | ≥98% (excluding abnormal incoming materials) |
| staffing | 1 person (loading and unloading) |
| Equipment efficiency | 1 PPM or higher |
2, Equipment structure
The equipment mainly consists of laser host and welding workstation.

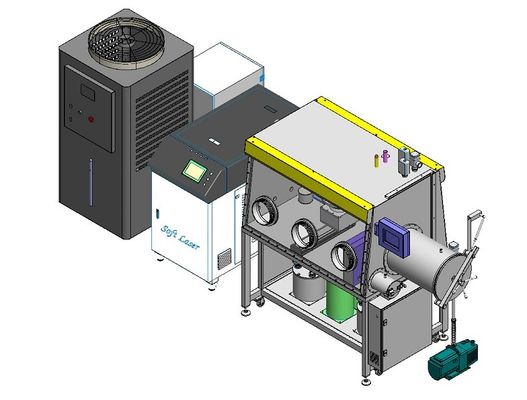

The equipment structure is shown below
3 , Equipment configuration
The main configuration of the equipment is shown in the table below
| unit | instructions | Quantity | |
| Welding station | Welding fixture system | 1 | |
| Laser motion system | Three axis | 1 | |
| Monitoring system | 1 | ||
| Welding protection system | 1 | ||
| Dust cleaning system | 1 | ||
| cleaning system | columns | 2 | |
| Welding control system | 1 | ||
| Laser host | laser |
China Max/2000 w |
1 |
| Water cooling machine | DOLUYO / 2 p | 1 | |
| Laser welded joint | import | 1 | |
4, welding workstation

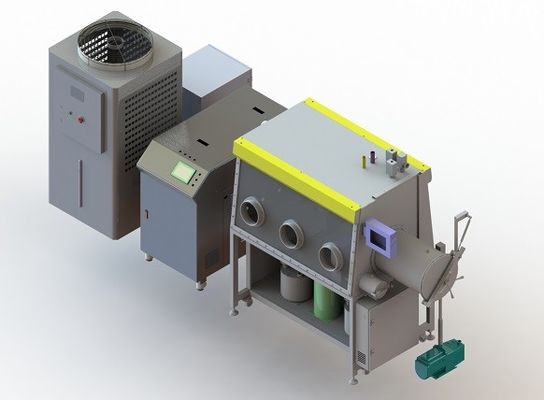

The welding unit mainly includes movement system, welding protection system, monitoring system, fixture, dust cleaning system and welding control system. The welding table is shown in the figure below.
