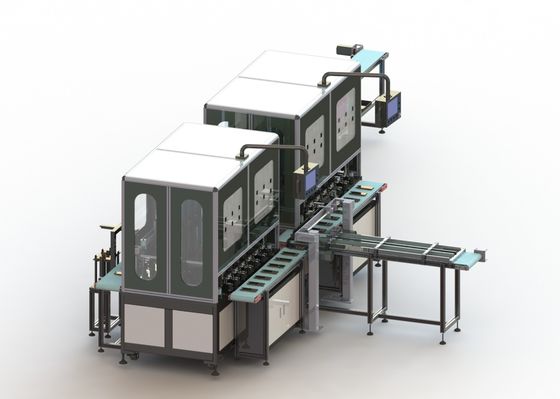

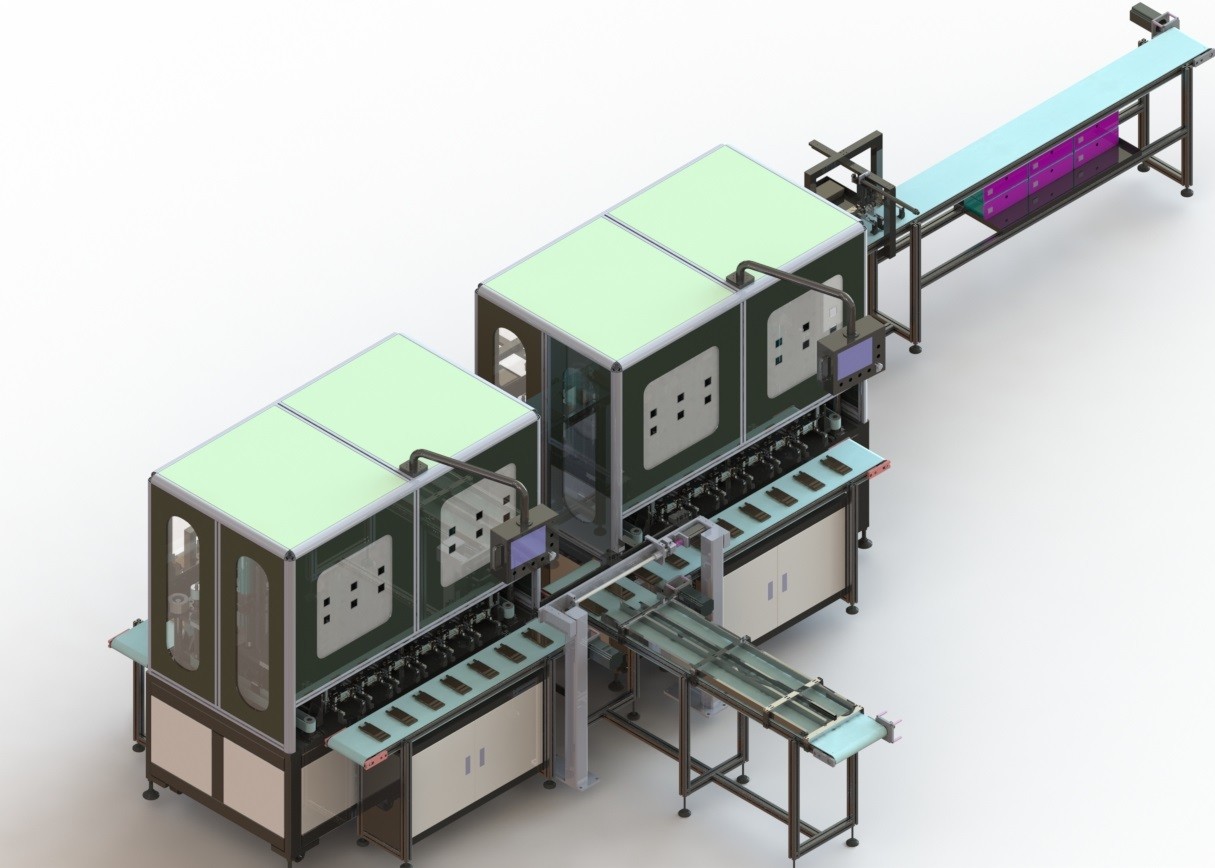

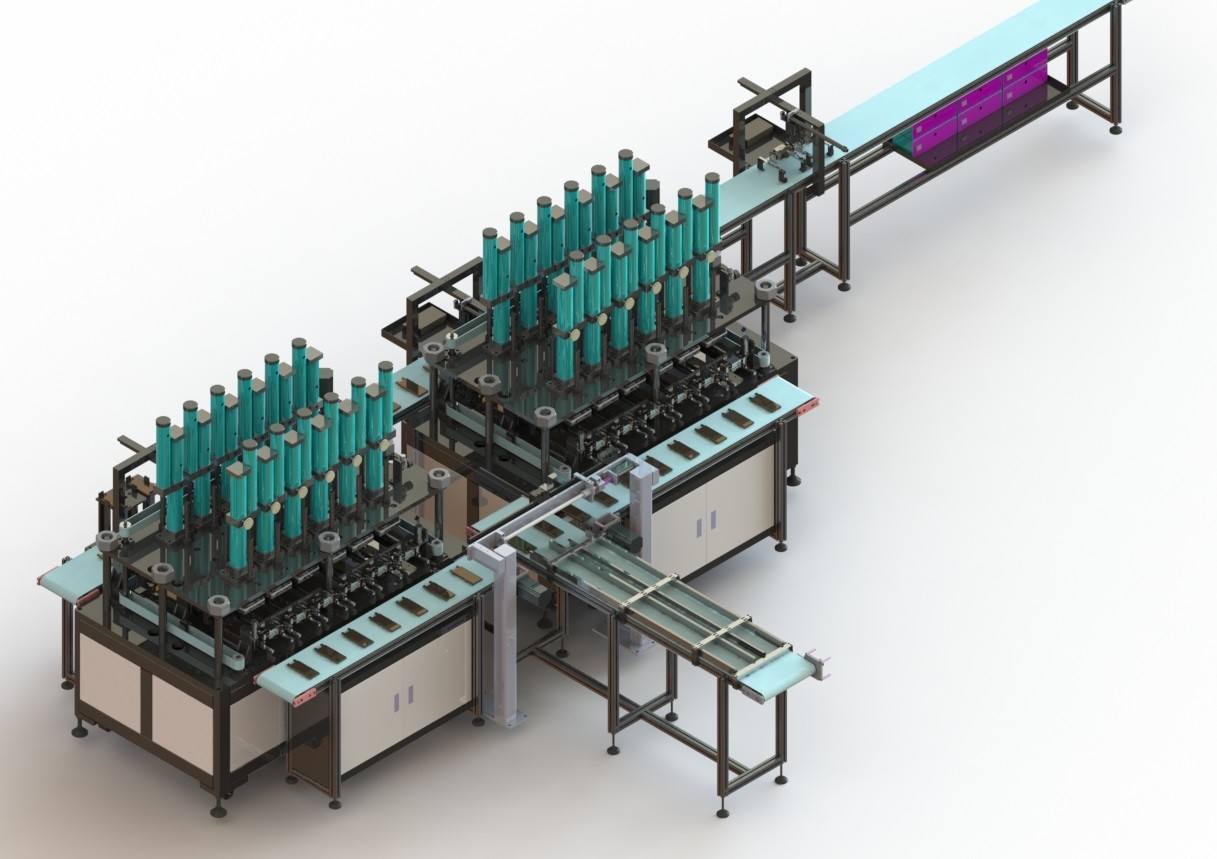

15PPM Lithium Ion Battery Assembly Line Double Station Hot Cold Pressing Equipment
1. Equipment introduction
The machine is mainly used for hot pressing of the wound cell or the former cell to ensure uniform thickness of the cell. The hot pressing temperature can be adjusted. Air - liquid pressure booster cylinder, pressure size adjustable.
- characteristics
-- six single-layer batteries can be pressed at the same time. The pressure can be adjusted. The maximum pressure of the gas-liquid supercharger is 3T.
-- high efficiency: double station, one station single layer battery in hot press, two station single layer battery in cold press. 15 PCS/min (the specific efficiency is determined according to the hot pressing and cold pressing time)
-- low operating costs
This equipment automation equipment degree is high, manual operation is simple, a worker can operate 1 equipment at the same time.
| NO. | Device functions and parameters |
| 1 | qualified rate of equipment products: 99% |
| 2 | equipment capacity/speed: 15PPM (cell size: 53*85, hot pressing for 3 minutes, cold pressing for 1 minute) |
| 3 | equipment failure rate: ≤5% (failure caused by equipment only) |
| 4 | the thermal pressure control temperature is 80°, and the precision range is ±5%; |
| 5 | electrical equipment: voltage AC220±10%, power 10KW |
| 6 | compressed air: 0.6mpa |
| 7 | effective hot pressing area: maximum 400X400, |
| 8 | weight: the ratio of the total weight of 1000Kg to the load-bearing area is ≤500kg/M2, and the weight of the equipment exceeds the floor load of 500kg/M2. Necessary protection measures shall be taken; |
| 9 | the whole machine is equipped with dust protective cover, the protective cover is aluminum alloy with plexiglass structure, and the operating surface is equipped with plexiglass door; |
| 10 | good ergonomics performance should be achieved in machine design; |
Cooperation commitment
1. New equipment promise
Our company guarantees that the goods provided to the tenderer are brand new, complete and unused equipment.
2. Confidentiality commitment
Our company promises that without the written permission of any party, the other party's related drawings, technical information, business information and other business secrets and technical secrets must not be leaked to third parties in any way.
3. After-sales service commitment
(1) Two months from the date of shipment of the equipment, Party B is responsible for non-human faults in a timely and free warranty within one year (when the equipment is faulty, the after-sales service staff will respond within 2 hours after receiving the notification. According to the situation, personnel must be in place within 48 hours. No later than 60 hours, to ensure the continuity of production by the buyer;
(2) After the equipment has passed the warranty period, if there is a problem, the two parties communicate and deal with it. If necessary, after-sales personnel will be sent to repair it, and only the cost will be charged. Zh
(3) During the warranty period stipulated in the contract and technical agreement signed by the two parties, the company will provide a warranty for quality problems that are not caused by human damage during the normal use of our products.
